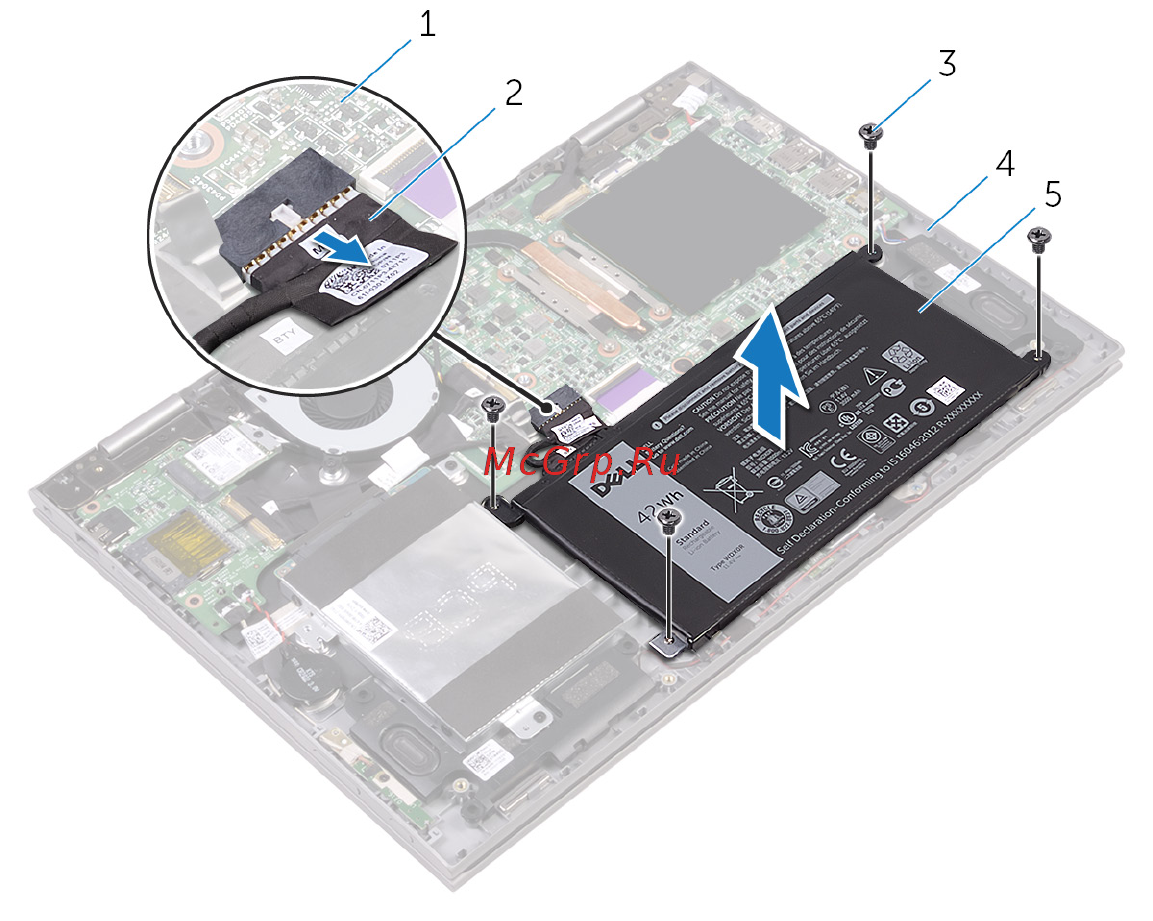

3 Lift the battery off the palm-rest assembly.
1 system board 2 battery cable
3 screws (4) 4 palm-rest assembly
5 battery
4 Press and hold the power button for five seconds to ground the system
board.
21
