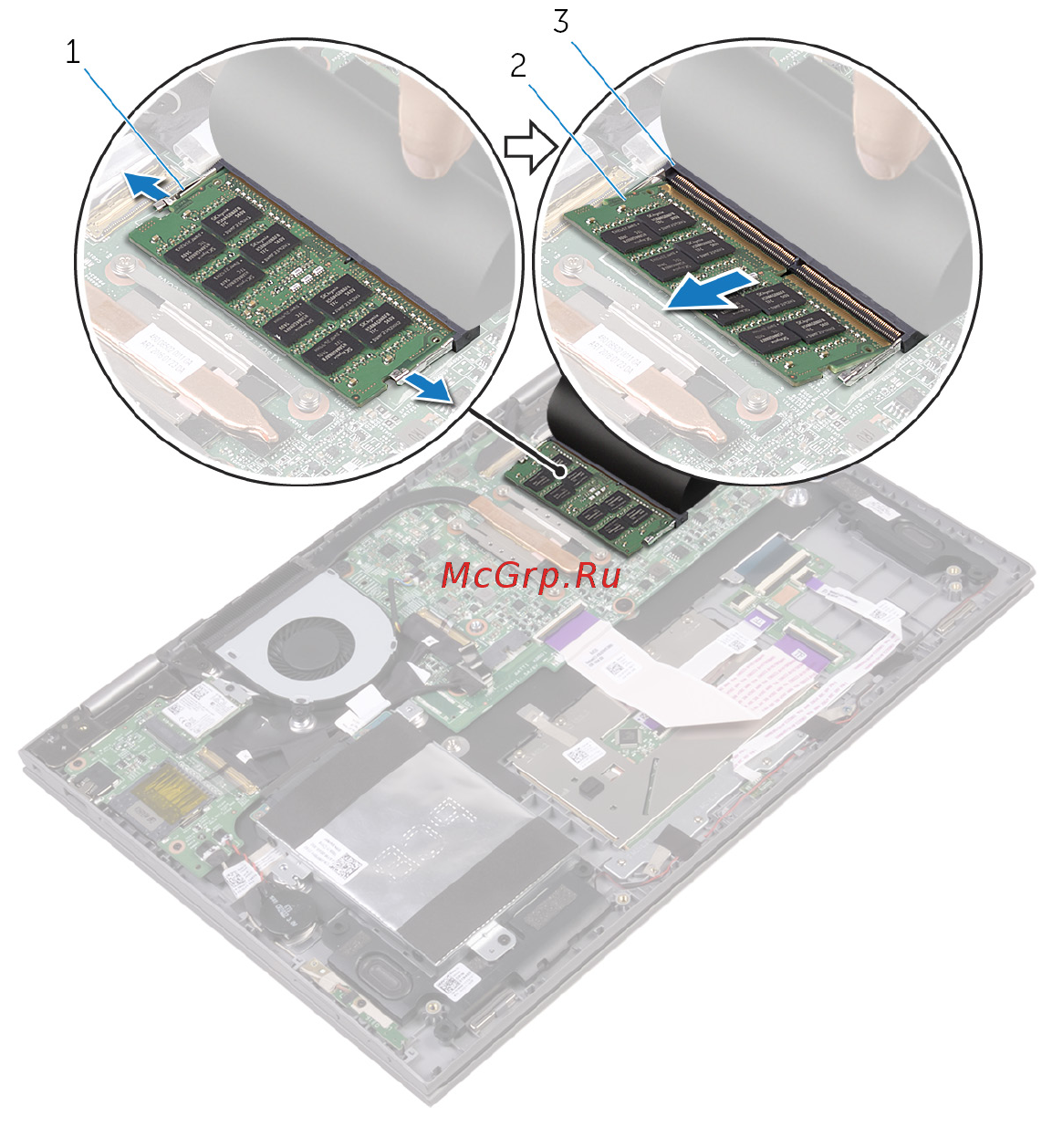

3 Remove the memory module from the memory-module slot.
1 securing clips (2) 2 memory module
3 memory-module slot
25
