Dell inspiron 5368, 5368-5445 Инструкция по эксплуатации онлайн [34/135] 181281
![Dell inspiron 5368, 5368-5445 Инструкция по эксплуатации онлайн [34/135] 181281](/views2/1218042/page34/bg22.png)

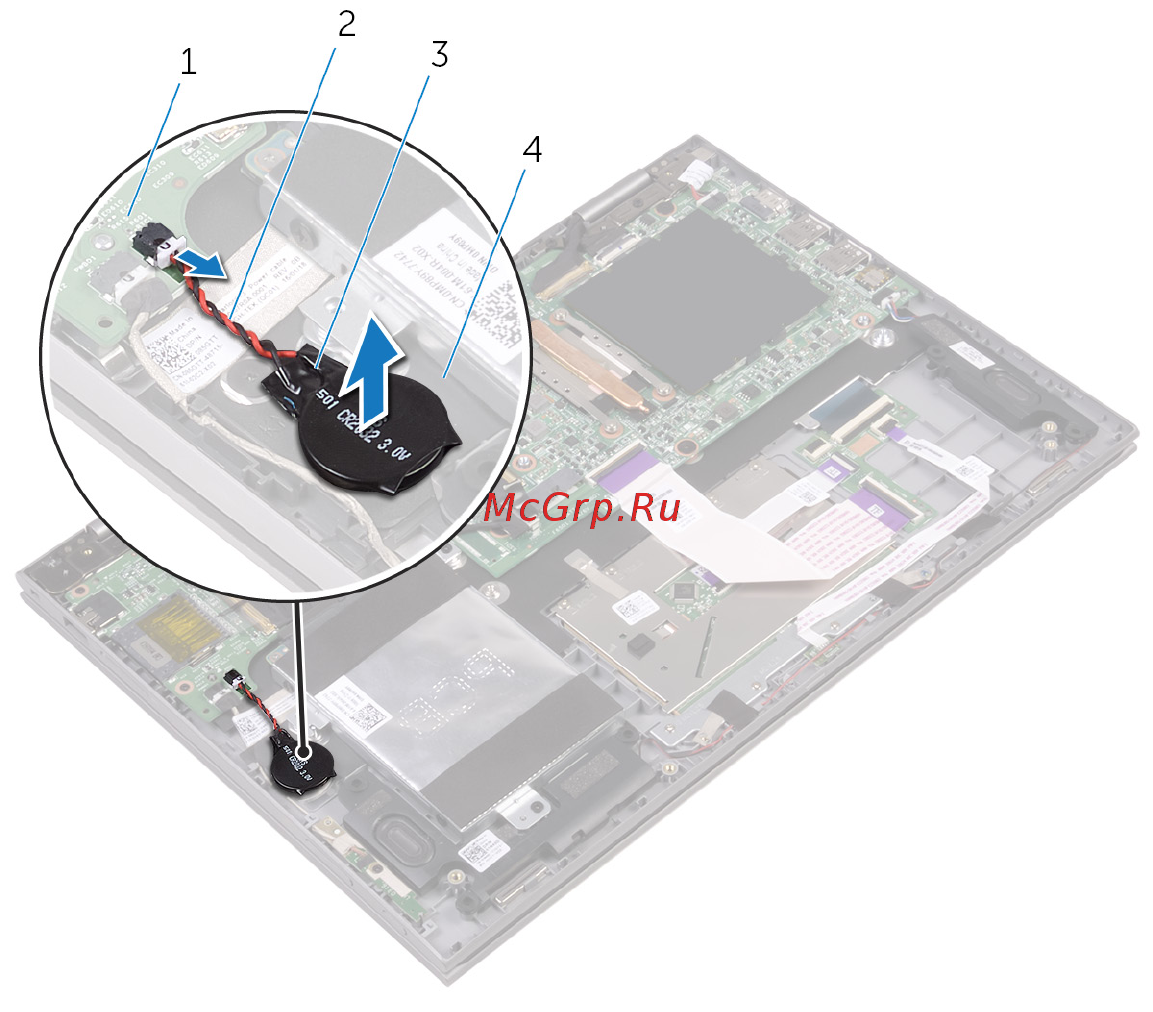

2 Peel the coin-cell battery off the palm-rest assembly.
1 I/O board 2 coin-cell battery cable
3 coin-cell battery 4 palm-rest assembly
34
