![Dell inspiron 5368, 5368-5445 Инструкция по эксплуатации онлайн [47/135] 181281](/views2/1218042/page47/bg2f.png)

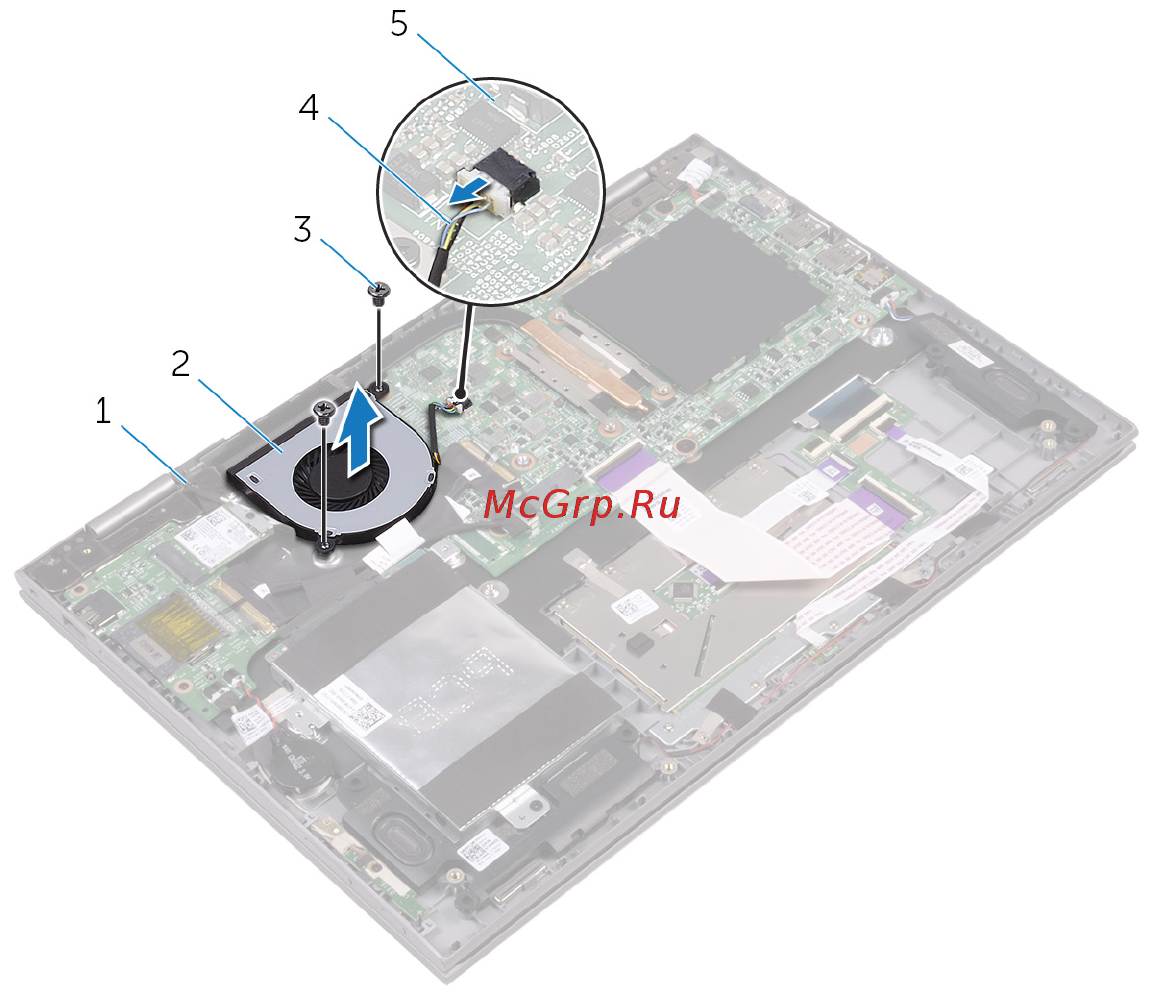

3 Lift the fan off the palm-rest assembly.
1 palm-rest assembly 2 fan
3 screws (2) 4 fan cable
5 system board
47
