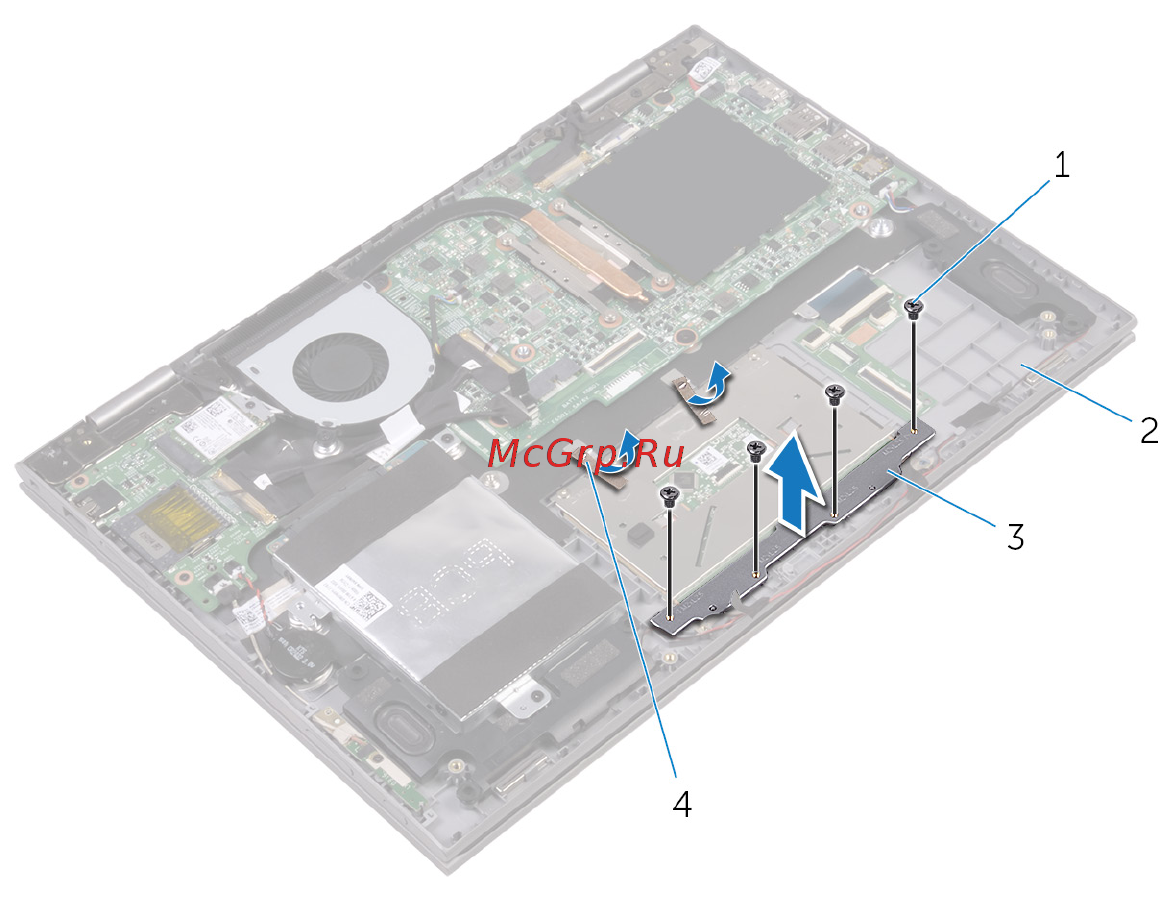

5 Lift the touch-pad bracket off the palm-rest assembly.
1 screws (4) 2 palm-rest assembly
3 touch-pad bracket 4 tape (2)
6 Remove the screws that secure the touch pad to the palm-rest assembly.
61
