Dell p2717h [11/60] Bottom view
![Dell p2717h [11/60] Bottom view](/views2/1218064/page11/bgb.png)

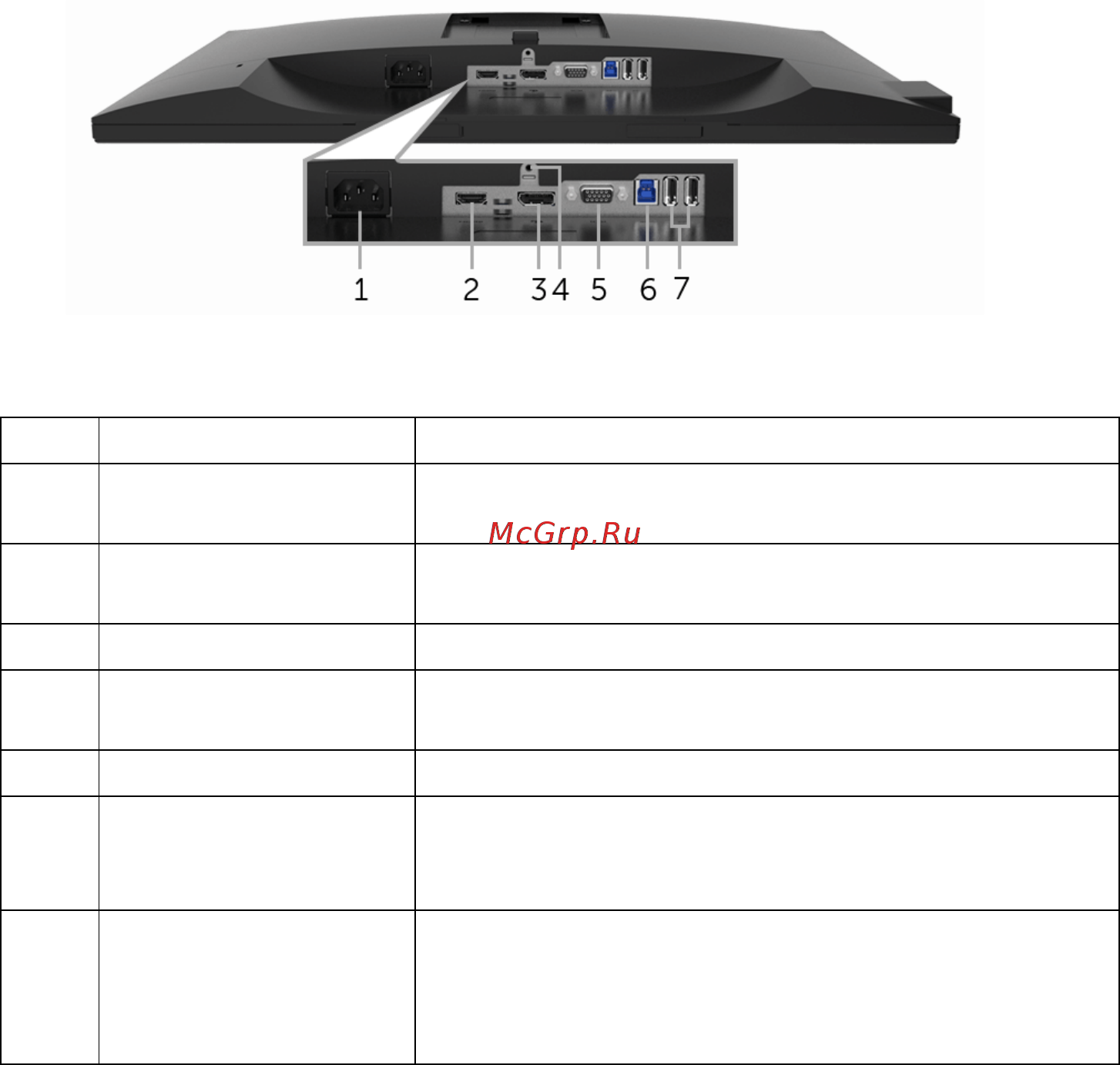

Bottom view without monitor stand
Description Use
1 Power cable
conn
ector
Connect the power cable.
2 HDMI port Connect your computer with HDMI cable (cable not
included
).
3 DisplayPort Connect your computer with DP cable.
4 Stand lock feature To lock the stand to the monitor using a M3 x 6 mm
s
crew (screw not included).
5 VGA connector Connect your computer with VGA cable.
6 USB upstream port Connect the USB cable (shipped with your monitor)
to
this port and your computer to enable the USB
ports on your monitor.
7 USB downstream port Connect USB device.
NOTE: T
o use this port, you must connect the USB
cable (shipped with your monitor) to the USB-
upstream port on the monitor and to your computer.
About Your Monitor | 11
Bottom View
Label
