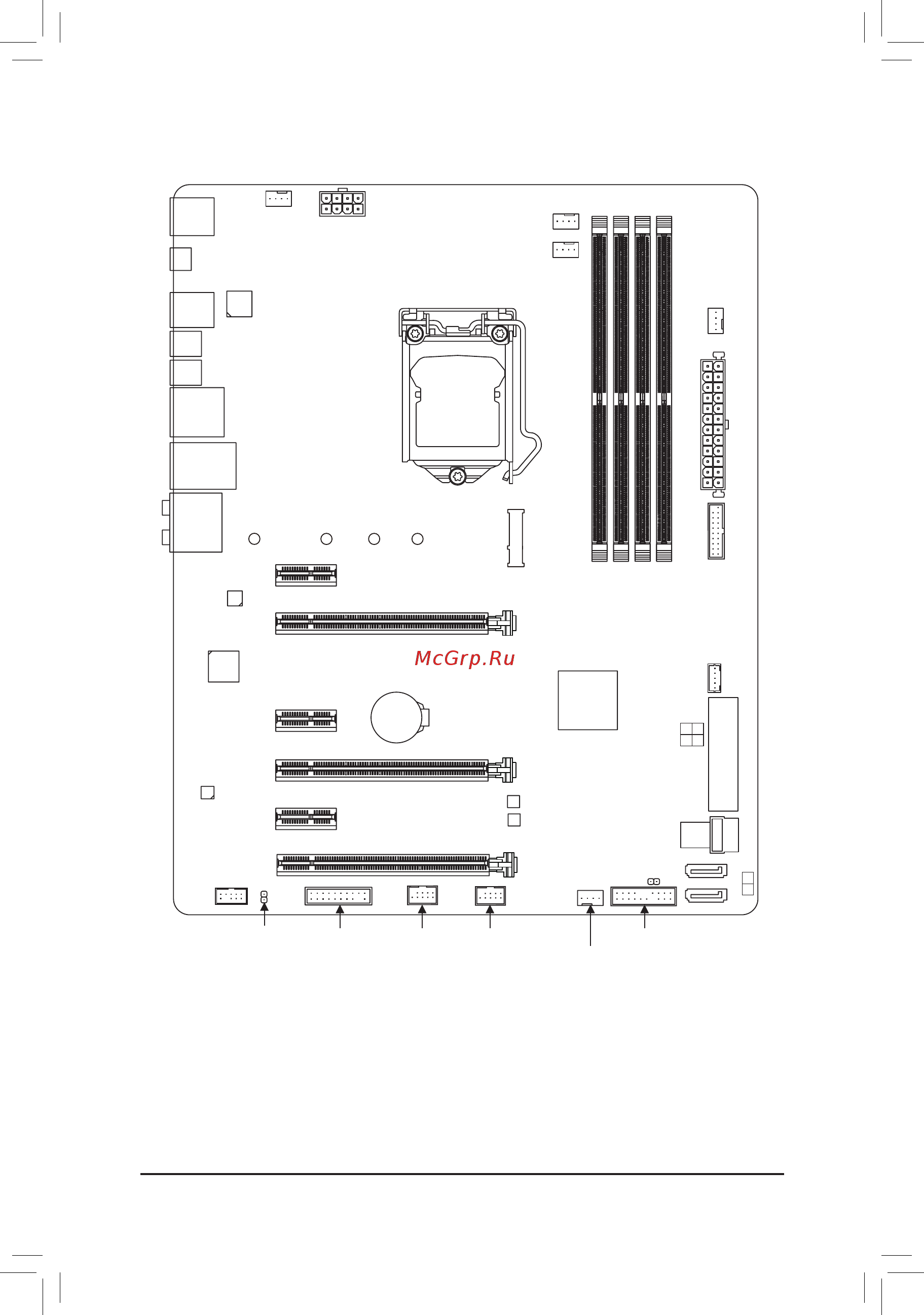

GA-Z170X-Ultra Gaming Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain. The
box contents are subject to change without notice.
Box Contents
5 GA-Z170X-Ultra Gaming motherboard 5 Four SATA cables
5 Motherboard driver disk 5 I/O Shield
5 User's Manual 5 One 2-Way SLI bridge connector
5 Quick Installation Guide 5 One G Connector
5 Two Velcro Cable Ties
KB_MS_USB
CPU_FAN
ATX_12V_2X4
ATX
F_AUDIO
AUDIO
B_BIOS
PCIEX8
DDR4_2
DDR4_1
DDR4_4
DDR4_3
BAT
F_PANEL
Intel
®
Z170
CLR_CMOS
M_BIOS
PCIEX1_1
PCIEX16
F_USB1
LGA1151
GA-Z170X-Ultra Gaming
MDP_OUT
MDP_IN
HDMI
R_USB30
USB30_LAN
F_USB30 SYS_FAN3
iTE
®
Super I/O
SYS_FAN2_PUMP
F_USB2
SYS_FAN1
TPM
M2M_32G
Intel
®
GbE LAN
SATA3
SATA3
3 2
5 4
1 0
CPU_OPT_PUMP
TYPEC
SATAEXPRESS
THB_C
U2_32G
R_USB31
PCIEX1_2
PCIEX1_3
PCIEX4
CODEC
SPDIF_O
80M110M 60M 42M
Intel
®
Thunderbolt
™
3
Controller
Содержание
- Ga z170x ultra gaming 1
- Rev 1002 12me z17ultg 1002r 1
- User s manual 1
- Copyright 2
- Disclaimer 2
- Identifying your motherboard revision 2
- Chapter 1 hardware installation 3
- Chapter 2 bios setup 3 3
- Chapter 3 appendix 2 3
- Ga z170x ultra gaming motherboard layout 3
- Table of contents 3
- Box contents 4
- Ga z170x ultra gaming 4
- Ga z170x ultra gaming motherboard 5 four sata cables 4
- Ga z170x ultra gaming motherboard layout 4
- Motherboard driver disk 5 i o shield 4
- Quick installation guide 5 one g connector 4
- Two velcro cable ties 4
- User s manual 5 one 2 way sli bridge connector 4
- 1 installation precautions 5
- Chapter 1 hardware installation 5
- 2 product specifications 6
- 2 productspecifications 6
- 3 installing the cpu 9
- 4 installing the memory 9
- Dualchannelmemoryconfiguration 9
- Installing the cpu 9
- 5 installing an expansion card 10
- 6 setting up amd crossfir 10
- 6 setting up amd crossfire nvidia sli configuration 10
- A system requirements 10
- B connecting the graphics cards 10
- C configuringthegraphicscarddriver 10
- Configuration 10
- 7 back panel connectors 11
- Connector 11
- Mini displayport 11
- Mini displayport in port white 11
- Ps 2 keyboard mouse port 11
- Thunderbol 11
- Usb 2 1 port 11
- Usb 3 type a port red 11
- Center subwoofer speaker out orange 12
- Hdmi port 12
- Line in blue 12
- Line out green 12
- Mic in pink 12
- Optical s pdif out connector 12
- Rear speaker out black 12
- Rj 45 lan port 12
- Usb 3 2 port 12
- 8 internal connectors 13
- 2 atx_12v_2x4 atx 2x4 12v power connector and 2x12 main power connector 14
- 4 cpu_fan sys_fan1 3 fan headers 14
- All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 14
- Be sure to connect fan cables to the fan headers to prevent your cpu and system from overheating overheating may result in damage to the cpu or the system may hang 14
- The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 14
- Thesefanheadersarenotconfigurationjumperblocks donotplaceajumpercapontheheaders 14
- To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 14
- With the use of the power connector the power supply can supply enough stable power to all the components onthemotherboard beforeconnectingthepowerconnector firstmakesurethepowersupplyisturned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation 14
- 6 cpu_opt_pump sys_fan2_pump fan pump headers 15
- Chipsetsupportsraid0 raid1 raid5 andraid10 refertochapter3 configuringaraidset forinstructionsonconfiguring araidarray 15
- Each sata express connector supports a single sata express device 15
- Pin no definition 1 gnd 2 speed control 3 sense 4 speed control 15
- Pin no definition 1 gnd 2 txp 3 txn 4 gnd 5 rxn 6 rxp 7 gnd 15
- Sata express sata express connectors 15
- Sata3 0 1 2 3 4 5 sata 6gb s connectors 15
- The fan pump headers are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis the headers also provide speed control forwatercoolingpumps refertochapter2 biossetup m i t formoreinformation 15
- The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the inte 15
- Toenablehot pluggingforthesataports refertochapter2 biossetup peripherals sata configuration formoreinformation 15
- Always turn off your computer and unplug the power cord before replacing the battery replacethebatterywithanequivalentone dangerofexplosionifthebatteryisreplacedwith 16
- An incorrect model 16
- Bat battery 16
- Chipset pleasenotethatanm pciessdcannotbeusedtocreatearaidseteitherwith anm satassdorasataharddrive tocreatearaidarraywithanm pciessd youmustsetup theconfigurationinuefibiosmode refertochapter3 configuringaraidset forinstructionson configuringaraidarray 16
- Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the battery model 16
- Follow the steps below to correctly install an m ssd in the m connector step 1 use a screw driver to unfasten the screw and nut from the motherboard locate the proper mounting hole forthem ssdtobeinstalledandthenscrewthenutfirst step 2 slide the m ssd into the connector at an angle step 3 press the m ssd down and then secure it with the screw 16
- M2m_32g m socket 3 connector 16
- Pin no definition 1 spdifo 2 gnd 16
- Replacethebattery 4 plug in the power cord and restart your computer 16
- Select the proper hole for the m ssd to be installed and refasten the screw and nut 16
- Spdif_o s pdif out header 16
- Thebatteryprovidespowertokeepthevalues suchasbiosconfigurations date andtimeinformation inthecmoswhenthecomputeristurnedoff replacethebatterywhenthebatteryvoltagedropstoalow level or the cmos values may not be accurate or may be lost 16
- Them connectorsupportsm satassdsandm pciessdsandsupportraidconfigurationthrough the inte 16
- This header supports digital s pdif out and connects a s pdif digital audio cable provided by expansion cards for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards for example some graphics cards may require you to use a s pdif digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an hdmi display to the graphics card and have digital audio output from the hdmi display at the same time for information about connecting the s pdif digital audio cable carefully read the manual for your expansion card 16
- Used batteries must be handled in accordance with local environmental regulations 16
- When installing the battery note the orientation of the positive side and the negative side of the battery the positive side should face up 16
- You may clear the cmos values by removing the battery 1 turn off your computer and unplug the power cord 2 gently remove the battery from the battery holder and wait for one minute or use a metal object like a screwdriver to touch the positive and negative terminals of the battery holder making them short for 5 seconds 16
- B s_ b 17
- Due to the limited number of lanes provided by the chipset the availability of the sata connectors and their accompanying sata express connectors may be affected by the type of devices installed in the pciex4 u2_32g and m2m_32g connectors the following tables provide details on the availability of the sata and sata express connectors when one two or all three of the pciex4 u2_32g and m2m_32g connectors are populated 17
- Example when m2m_32g is installed with a sata based ssd and pciex4 u2_32g are empty sata 17
- F_usb3 f 17
- F_usb30 f_ u 17
- Installationnoticesforthepciex4 u2_32g m2m_32g sata sataexpressconnectors 17
- Note 1 when pciex4 is installed with a pcie x4 ssd the sata3 0 1 connectors become unavailable note2 otherpciedevicesincludepciegraphicscards lancards tvcards raidcards wi ficards etc 17
- Ports 4 5 and their accompanying sata express connector become unavailable 17
- S 3 b s s s u 17
- S b_ b 17
- Table1 whenonlyoneofpciex4 u2_32g andm2m_32gispopulated 17
- The u connector supports a single u device please note that an u ssd cannot be used to create araidseteitherwithanm satassdorasataharddrive tocreatearaidarraywithanu ssd youmustsetuptheconfigurationinuefibiosmode refertochapter3 configuringaraidset for instructionsonconfiguringaraidarray 17
- U2_32g u connector 17
- _ s s_ _ b 17
- _ u _ b 17
- Example when pciex4 is installed with a pcie x2 ssd m2m_32g with an m pcie x2 ssd and u2_32g 18
- Note 1 when pciex4 is installed with a pcie x4 ssd the sata3 0 1 connectors become unavailable note2 otherpciedevicesincludepciegraphicscards lancards tvcards raidcards wi ficards etc 18
- Table2 whentwoofpciex4 u2_32g andm2m_32garepopulated 18
- With no device sata ports 4 5 and their accompanying sata express connector become unavailable 18
- Availability of the sata sata express connectors 19
- Configuration 19
- Example when pciex4 is installed with a pcie device u2_32g with an u ssd m2m_32g with an m sata 19
- Note 1 when pciex4 is installed with a pcie x4 ssd the sata3 0 1 connectors become unavailable note2 otherpciedevicesincludepciegraphicscards lancards tvcards raidcards wi ficards etc 19
- Other pcie devices u ssd m pcie x2 ssd a a 19
- Other pcie devices u ssd m pcie x4 ssd a a 19
- Other pcie devices u ssd m sata ssd a a 19
- Pcie x2 ssd u ssd m pcie x2 ssd a a 19
- Pcie x2 ssd u ssd m pcie x4 ssd a a 19
- Pcie x2 ssd u ssd m sata ssd a a 19
- Pcie x4 ssd u ssd m pcie x2 ssd 19
- Pcie x4 ssd u ssd m pcie x4 ssd 19
- Pcie x4 ssd u ssd m sata ssd 19
- Sata3 0 sata3 1 sata3 2 sata3 3 sata3 4 sata3 5 sata express sata express 19
- Ssd all sata sata express connectors become unavailable except for sata ports 0 1 and their accompanying sata express connector 19
- Table 3 when all three of pciex 19
- U2_32g andm2m_32garepopulated 19
- Ci chassis intrusion header connects to the chassis intrusion switch sensor on the chassis that can detect if the chassis cover has been removed this function requires a chassis with a chassis intrusion switch sensor 20
- Connect the power switch reset switch speaker chassis intrusion switch sensor and system status indicator on the chassis to this header according to the pin assignments below note the positive and negative pins before connecting the cables 20
- F_audio front panel audio header 20
- F_panel front panel header 20
- For hd front panel audio for ac 97 front panel audio 20
- Hd hard drive activity led connects to the hard drive activity led on the chassis front panel the led is on when the hard drive is reading or writing data 20
- Nc 7 nc 8 no pin 9 line out l 10 nc 20
- Nc no connection 20
- Pin no definition 1 mic 2 gnd 3 mic power 4 nc 5 lineout r 20
- Pin no definition 1 mic2_l 2 gnd 3 mic2_r 4 acz_det 5 line2_r 6 sense 7 faudio_jd 8 no pin 9 line2_l 10 sense 20
- Pled pwr_led power led connects to the power status indicator on the chassis front panel the led is on when the system is operating the led is off when the system is in s3 s4 sleep state or powered off s5 20
- Pw power switch connects to the power switch on the chassis front panel you may configurethewaytoturnoffyoursystemusingthepowerswitch referto chapter2 biossetup powermanagement formoreinformation 20
- Res resetswitch connects to the reset switch on the chassis front panel press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart 20
- Speak speaker connects to the speaker on the chassis front panel the system reports system startup status by issuing a beep code one single short beep will be heard if no problem is detected at system startup 20
- System status led s0 on s3 s4 s5 off 20
- The front panel audio header supports hd audio by default audio signals will be present on both of the front and back panel audio connections simultaneously some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 20
- The front panel design may differ by chassis a front panel module mainly consists of power switch reset switch power led hard drive activity led speaker and etc when connecting your chassis front panel module to this header make sure the wire assignments and the pin assignments are matched correctly 20
- Thefrontpanelaudioheadersupportsintelhighdefinitionaudio hd andac 97audio youmayconnect your chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 20
- Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the usb bracket 21
- F_usb1 f_usb2 usb 2 1 headers 21
- F_usb30 usb 3 2 header 21
- Theheaderconformstousb3 2 specificationandcanprovidetwousbports forpurchasingthe optional3 frontpanelthatprovidestwousb3 2 ports pleasecontactthelocaldealer 21
- Theheadersconformtousb2 1 specification eachusbheadercanprovidetwousbportsviaan optional usb bracket for purchasing the optional usb bracket please contact the local dealer 21
- Tpm trusted platform module header 21
- You may connect a tpm trusted platform module to this header 21
