Intel NUC Kit NUC6i3SYH & NUC6i5SYH User Guide

Install a 2.5” SSD or Hard Drive

For a list of tested 2.5” hard drives, go to the Tested Peripherals page on the Support site.

Follow these instructions to install a 2.5” Solid State Drive (SSD) or Hard Disk Drive (HDD):

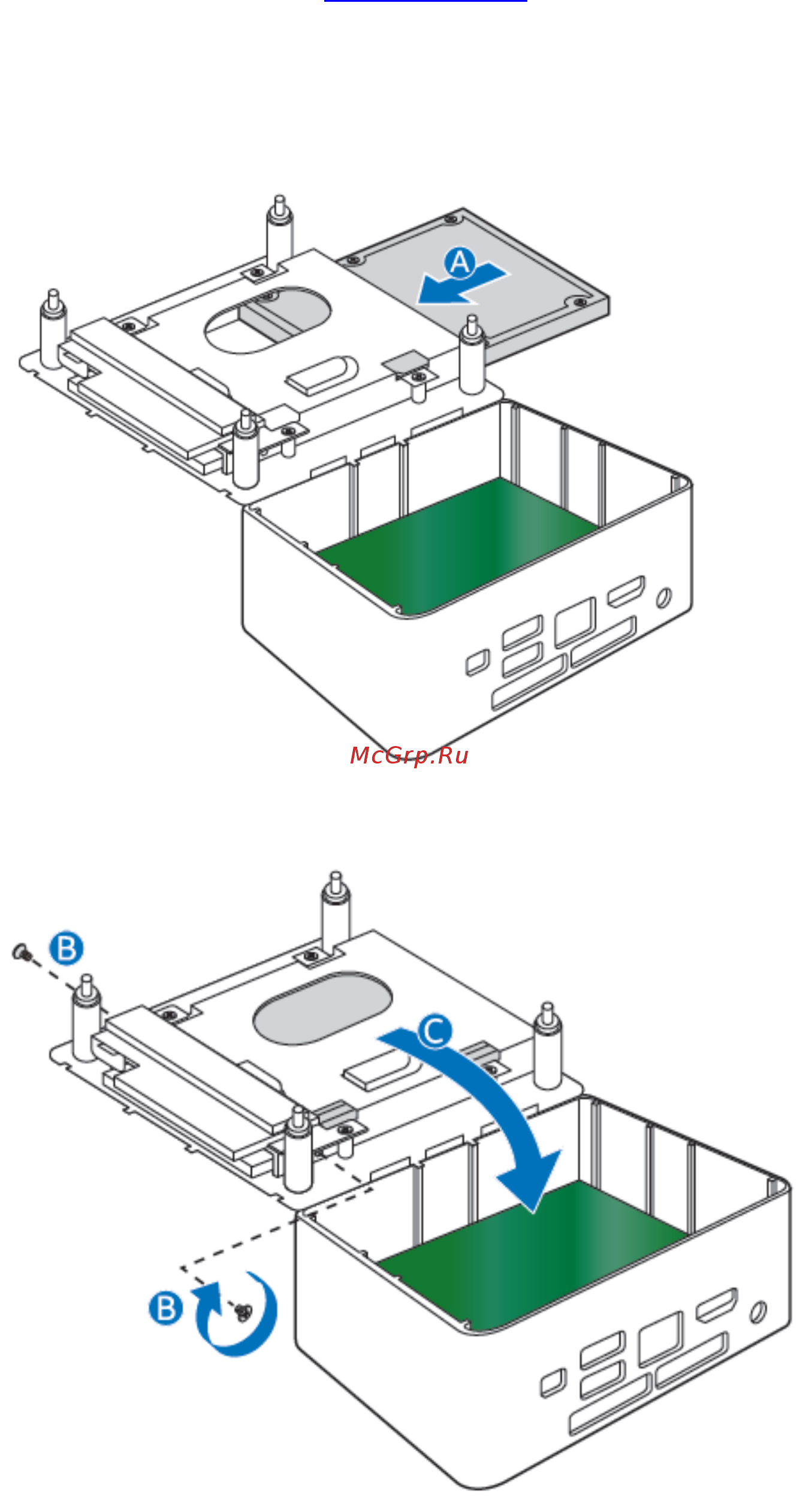

1. Slide the 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the

connectors of the SATA daughter card (A).

2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).

Set the drive bay bracket down inside the chassis (C),
