Intel is a registered trademark of Intel Corporation or its
subsidiaries in the United States and other countries.
*Other names and brands may be claimed as the
property of others. Copyright © 2011, Intel Corporation.
All rights reserved.
Warning
Read all caution and safety
statements in this document
before performing any of the
instructions. Also see the Intel
®
Server Board and Server Chassis
Safety Information document at:
http://support.intel.com/support/
motherboards/server/sb/cs-010770
.htm for complete safety information.
Warning
Installation and service of
this product should only be
performed by qualified service
personnel to avoid risk of injury from
electrical shock or energy hazard.
Tools Required
Caution
Observe normal ESD
[Electrostatic Discharge]
procedures during system
integration to avoid possible
damage to server board and/or
other components.
Anti-static
wrist strap
Phillips*
screwdriver
Intel
®
Server System
SR1630GP

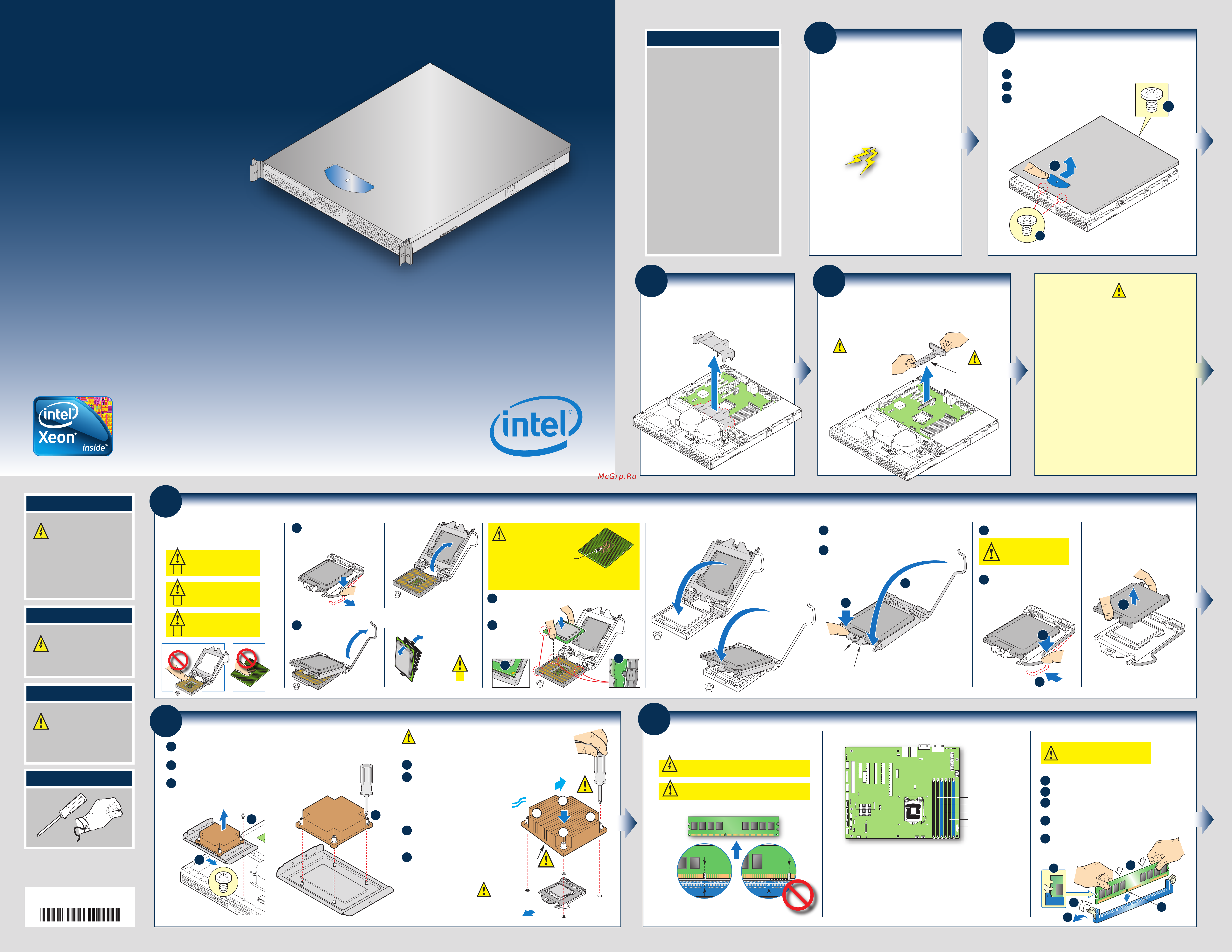

Quick Start User's Guide
If you are not familiar with ESD (Electrostatic Discharge) procedures
used during system integration, please see the Intel
®
Server System
SR1630GP Service Guide, available on the Intel
®
Server Deployment Toolkit CD
or at http://support.intel.com/support/motherboards/server/s3420gp/howto.htm
Read all cautions and warnings first before starting your
server system integration.
Thank you for buying an Intel
®
Server System.
The following information will help you
assemble your Intel
®
Server System
SR1630GP and install components.
This guide and other supporting documents
are located on the web at
http://www.intel.com/p/en_US/support/highlights/server/sr1630gp
1
Preparing
the Chassis
Observe normal ESD (Electrostatic Discharge)
procedures.
Place your Intel
®
Server Chassis on a
flat anti-static surface to perform the following
integration procedures. Always touch the chassis
frame first, before reaching inside to make server
board connections or to install components.
Place your Intel
®
Server Chassis on a flat anti-
static surface to perform the following integration
procedures. Always touch the chassis frame first,
before reaching inside to make server board
connections or to install components.
Minimum Hardware Requirements
To avoid integration difficulties and possible
damage to your system, make sure you
have components from each category below.
■ Heat Sink:
• 1U passive heat sink.
■ Memory:
•
Memory Type: Minimum of one 1GB
DDR3 800/1066/1333MHz ECC
RDIMM or 1066/1333MHz ECC
UDIMM.
■ Hard Disk Drives:
• SATA
■ Power:
• Minimum of 350W with 3A of standby
current, which meets the SSI EPS 12V
specification.
Before proceeding further,
do the following:
IMPORTANT!
Check your Intel
®
Server System for
disconnected or loose cables and components
that may have occurred during shipping.
E73398-003
2
Remove Top Cover
B
Remove the two screws at the front.
Remove the screw at the rear.
C
Using the blue rubber contact, push the
top cover rearward to release, then
lift upward and remove.
A
A
B
C
6
Install Heat Sink
Remove the screw securing the heat sink retention plate. Retain this screw
for installing the hard drive carrier at this location later in this document.
A
Slide the plate toward the center of the chassis to disengage
it from the chassis sidewall and remove.
B
Loosen the four captive fasteners and remove the heat
sink from the retention plate. This plate will not
be used again and can be discarded.
C
Retention Plate
Heat Sink
A
B
C
Chassis Front
The heat sink has four captive fasteners
and should be tightened using the
following procedure:
Remove the protective film on the TIM if present.
Using a #2 Phillips* screwdriver,
finger-tighten each fastener diagonally,
according to the numbers shown.
Securely re-tighten each fastener again
in the same order as performed in Step C.
CAUTION: The heat sink has thermal interface material
(TIM) on the underside of it. Use caution so that you do
not damage the thermal interface material.
Use gloves to avoid sharp edges.
G
F
D
Align heat sink fins to the front and back of
the chassis for correct airflow. Airflow goes
from front-to-back of chassis.
E
CAUTION:
Do not
over-tighten
fasteners.
TIM
Processor
Socket
Chassis
Front
3
1
AIRFLOW
2
4
7
Install DIMM Memory Modules
To Install DIMMs:
DDR3 DIMM Memory Identification:
Open both DIMM socket levers.
Push down firmly on the DIMM until it
snaps into place and both levers close.
Insert DIMM making sure the connector edge
of the DIMM aligns correctly with the slot.
C
A
D
IMPORTANT! Visually check that each
latch is fully closed and correctly
engaged with each DIMM edge slot.
E
Note location of alignment notch.
B
CAUTION: Avoid touching contacts when
handling or installing DIMMs.
E
A
C
D
B
DIMM
notch and
socket
bump must
align as
shown.
Other
Memory
DDR3
This server board supports up to 6 DDR3-800/1066/1333 MHz
ECC RDIMM and 1066/1033 MHz ECC UDIMM.
CAUTION: Observe normal ESD (ElectroStatic Discharge) procedures
to avoid possible damage to system components.
DIMM A3
DIMM A2
DIMM A1
DIMM B3
DIMM B2
DIMM B1
Memory Configurations and Population Order:
Memory sizing and configuration is supported only for qualified DIMMs approved by
Intel
®
. For a list of supported memory, see the tested memory list at
http://support.intel.com/support/motherboards/server/chassis/s3420gp/compat.htm.
Note: For additional memory configurations, see the User Guide on the Intel
®
Server
Deployment Toolkit CD that accompanied your Intel
®
Server Board S3420GP, or go to:
http://www.intel.com/support/motherboards/server/s3420gp/sb/CS-030744.htm.
Memory Type: Minimum of one 1 GB, DDR3 800/1066/1333
MHz ECC RDIMM or 1066/1033 MHz ECC UDIMM compliant 240-pin DIMM.
4
Remove Add-in Card
Riser Assembly
Grasp riser with both hands and pull straight up to release riser
card connector from server board socket.
CAUTION:
Place the riser
assembly
upsidedown to
avoid damage
to the riser card
connector.
Riser Card
Connector
3
Remove Air Duct
A
5
Install the
Processor
A. Open the Socket Lever
Push the lever handle down
and away from the socket to
release it.
Rotate the lever
open all the way.
B. Open the Load Plate
Open the
load
plate as
shown.
A
B
D. Install the Processor
Orient the processor with the socket so that the processor
cutouts match the two
socket pins.
A
Note location
of gold key at
corner of
processor.
B
Cautions:
CAUTION: The underside of
the processor has components
that may damage the socket wires if
installed improperly.
Processor must align correctly with
the socket opening before installation. DO NOT DROP processor into socket!
DO NOT DROP processor into socket!
Components
REMOVE
1
REMOVE
When removing the protective
cover, DO NOT TOUCH the
gold socket wires.
A
When unpacking a processor,
hold by the edges only to avoid
touching the gold contact wires.
C
To avoid damage, DO NOT
DROP the cover onto the
socket wires or components.
B
A
B
Make sure the front edge of the load plate slides
under the shoulder screw as the lever is lowered.
Carefully lower the load plate over the processor.
E. Close the Load Plate F. Engage the Load Plate
A
Close the load plate locking lever.
B
Push down on the locking lever.
G. Latch the Locking Lever
A
Slide the tip of the lever under the
notch in the load plate. Make sure
the lever is securely latched.
B
H.
Remove the Cover
B
A
Load Plate
Front Edge
Shoulder
Screw
A
B
CAUTION: DO NOT damage the
server board with the tip of the
locking lever.
C. Unpack the Processor
1
C
Carefully remove
protective cover
as shown.
Save the
protective
cover.
Carefully lift the cover straight up as
shown.
Save the
protective
cover.
A
A
