Use a small Phillips screwdriver to loosen the adapter’s set screws and insert the speaker wires into the holes on the back of the adapter.

Tighten the set screws to secure the wires.

Always connect the (+) speaker wire to the adapter’s (+) terminal and the (–) speaker wire to the adapter’s (–) terminal. When all wires are

connected, plug the adapters into the Club amplifier’s FRONT (and REAR, if using the 4-channel amplifier) preamp inputs.

• Remote: Connect a 20-gauge wire from the “Remote Out” lead of the source unit to the REM input. This lead turns the amplifier on when

using low-level input signals.

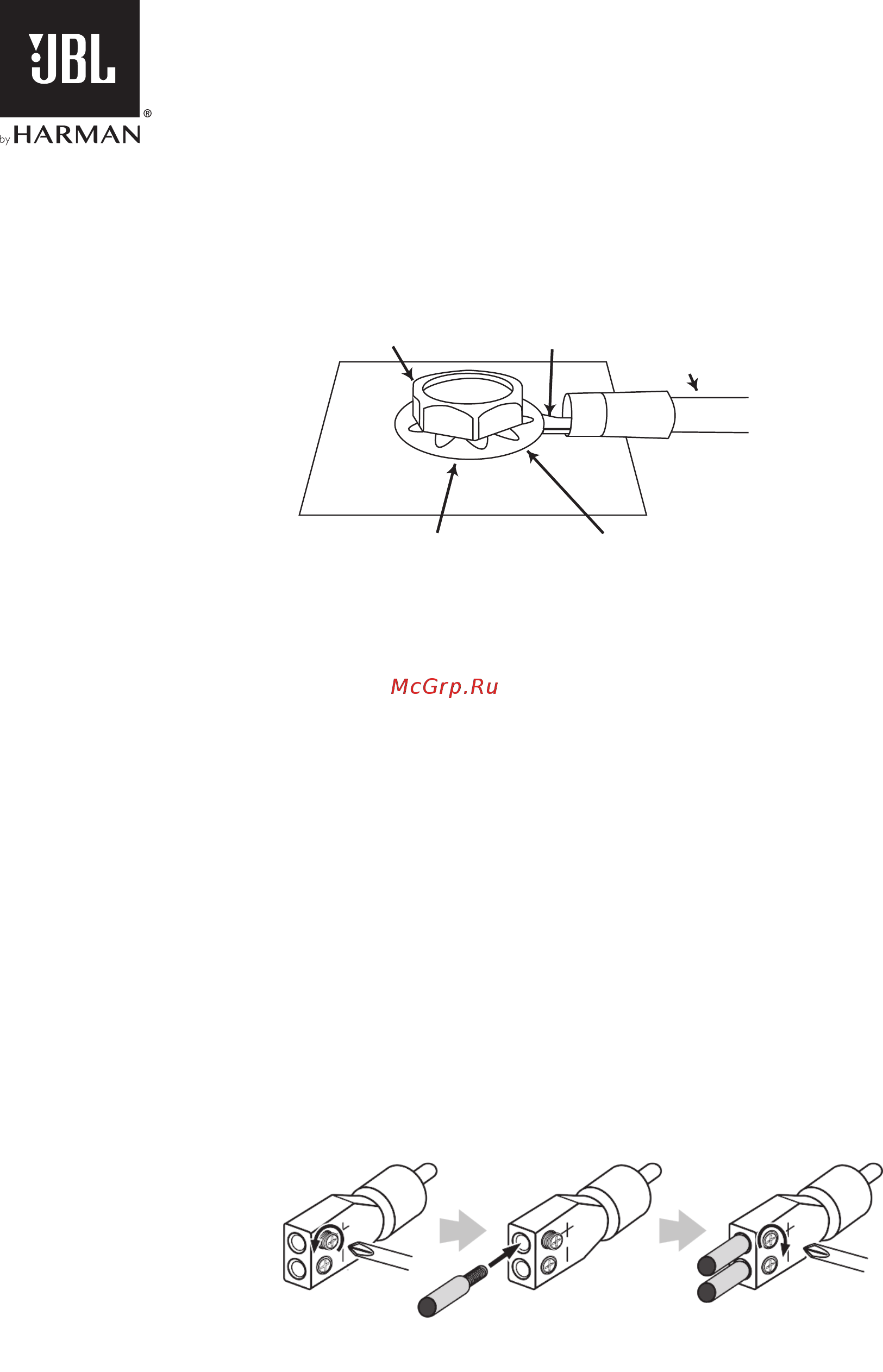

• Ground: Run a wire (the same gauge as the power wire) from the GND input to a factory bolt in the vehicle’s chassis (see illustration below).

NOTE: Remove any paint from the chassis for best contact. Use a star washer below the ring connector for a secure connection.

Important: Some factory-installed audio system amplifiers include electronic filters that limit the amount of bass sent to the system’s smaller

speakers. This filtering will adversely affect the Club amp’s performance. To get the most bass possible from your Club amp, splice the bare

wire-to-RCA adapters into the factory system speaker outputs that are connected to the system’s largest speakers (the ones designed to make

the most bass).

Factory Bolt

Ring Connector

Note: Remove any paint

below ring connector

Loosen
