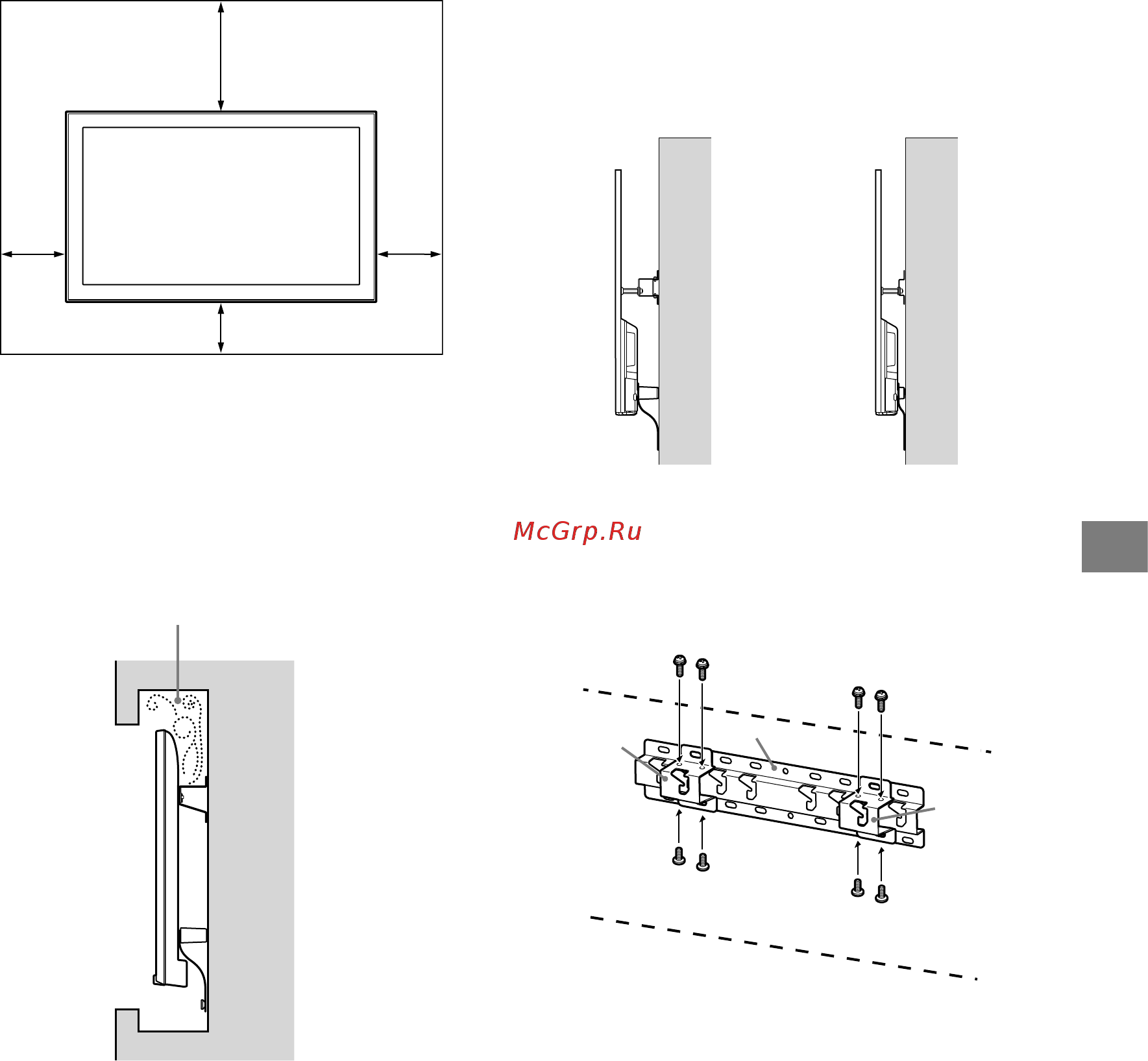

Allow for suitable clearance between the

TV and the ceiling and protruding parts of

the wall as shown below.

Unit: mm

300100

100 100



To ensure proper ventilation and prevent the

collection of dirt or dust:

ˋ Do not lay the TV set flat, install upside down,

backwards, or sideways.

ˋ Do not place the TV set on a shelf, rug, bed or in a

closet.

ˋ Do not cover the TV set with a cloth, such as

curtains, or items such as newspapers, etc.

ˋ Do not install the TV set as shown below.

Air circulation is blocked.

Wall

Note



If you intend to route the cables in the wall, make a

hole in the wall to insert the cables before beginning

the installation.

To prevent pinching the cables, prepare a hole in the

wall somewhere outside the perimeter of the Base

(20) , Base Adaptor  and Spacer (20) , Spacer

(60) .

2 Select Wall mounting style. It is

selectable as shown below.

2-a Standard mount

2-b Slim mount

Refer to the table of step 1.

WARNING



When 2-b is selected, Rear terminal access is limited.

2-a 2-b

3 Fit Base Adaptor  by using

Screw (PSW 4x10)  to Base

(20)  when selecting 2-a.








