MSI b150m mortar arctic [20/83] Block diagram
![MSI b150m mortar arctic [20/83] Block diagram](/views2/1221727/page20/bg14.png)
20

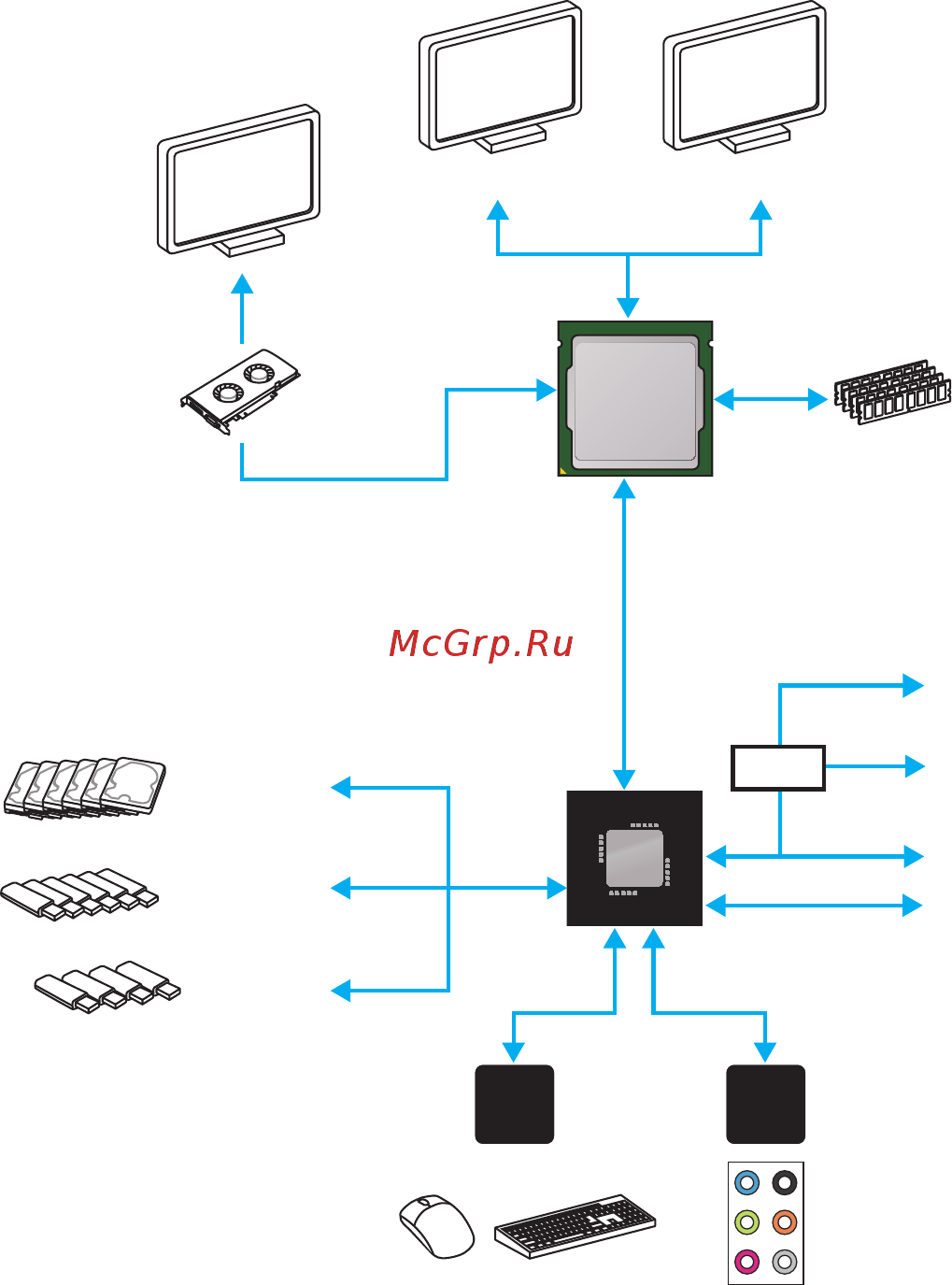

Block Diagram
Block Diagram
LPC Bus
Dual Channel DDR4 Memory
6 x USB 3.1 Gen1
(5 Gbps)
6 x SATA 6Gb/s
4 x USB 2.0
P/S2 Mouse / Keyboard
Audio Jacks
DMI 3.0
B150
CPU
NCT6793D
Super I/O
Realtek
ALC892
HDMI DVI-D
PCIe x4
M.2
Switch
PCI Express Bus
M.2 Wi-Fi
PCIe x1
