Installation Guide

ProSafe

24-port 10/100Mbps Switch JFS524

Start Here

Estimated Installation Time: 5–10 minutes

Unpack the Box and Verify the Contents

When you open the box, verify that you received everything. The package includes:

• ProSafe

24-port 10/100Mbps Switch JFS524

• AC power cord

• Rack-mounting kit

• Installation Guide (this document)

If you do not have everything listed above, see the support information card for

contact information. If you are missing the support information card, get contact

information at http://www.NETGEAR.com in the Technical Support section.

Prepare to Install the Switch

Decide where you want to place the switch. Find a flat horizontal surface such as a

table, desk or shelf. The switch comes with rack-mounting screws. You can use the

screws if you want to mount the switch in an equipment rack. Make sure the

selected location is:

• Not in direct sunlight or near a heater or heating vent.

• Not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space

on all sides of the switch.

• Well ventilated (especially if it is in a closet).

Also, you will need one Category 5e (Cat 5e) Ethernet cable with RJ-45 connectors

for each device you want to connect to the switch. Each Ethernet cable must be less

than 328 feet (100 meters).

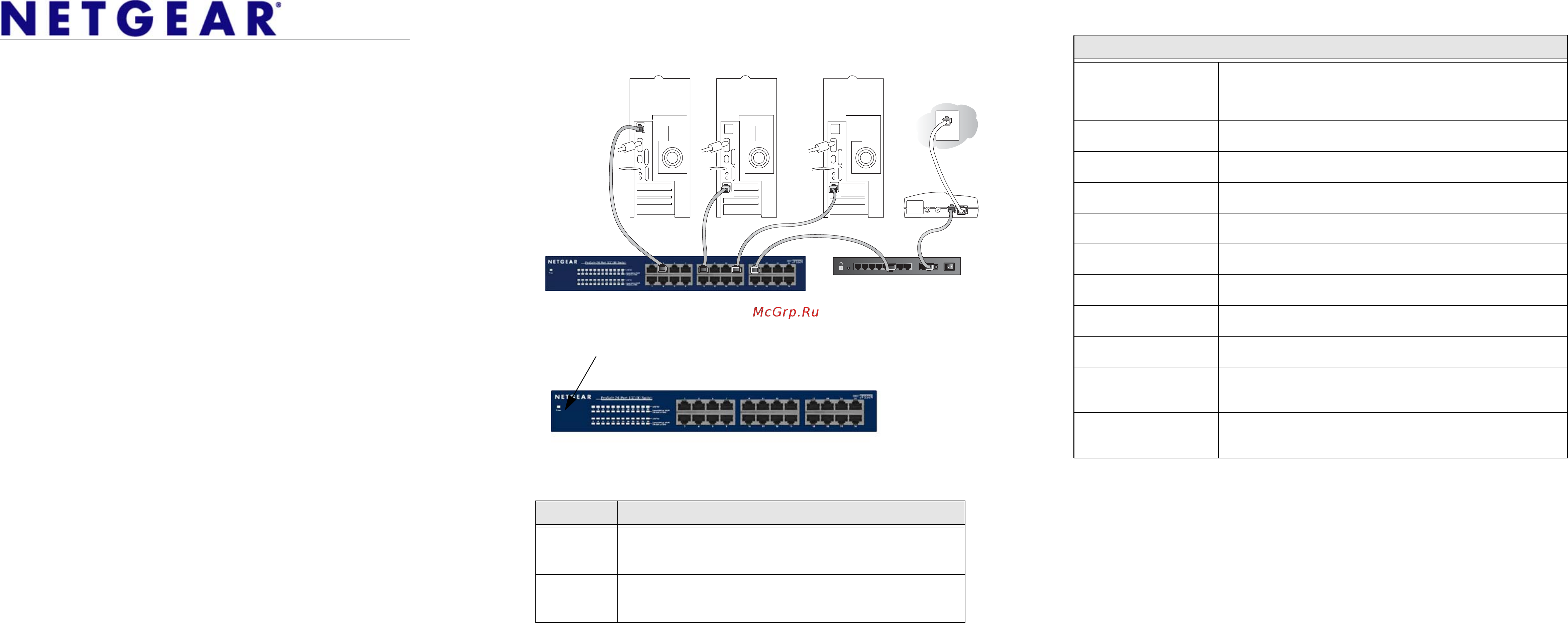

Install the Switch and Connect the Other Devices

1. Place the switch on a flat surface or mount in a rack.

2. For each device, insert one end of an Ethernet cable into the port in the device

and insert the other end into one of the Ethernet ports on the switch.

3. Connect the power cord into the back of the switch and then plug the cord to

an AC power source (such as a wall socket or power strip). The Power light

should light up.

4. Check the LEDs to confirm that all connections are correct.

Specifications

LED Activity

Power • On: Switch has power.

• Off: No power.

RJ-45 ports • Top LED on/Blink: Link/Activity

• Bottom LED Off/Green: 10 Mbps/100Mbps.

12VD C 1.2A

87654321

LOCAL

10/100 M

INTERNET

OFF ON

Power

Technical Specifications

Standards Compliance IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX

Fast Ethernet, IEEE 802.3x full-duplex Flow Control,

compatible with all major network software

Network Interface Twenty-four (24) 10/100 Mbps Ethernet RJ-45 ports

MAC Address 4K

AC Power 100-240VAC 50-60Hz, 1.2A max., localized to country of sale

Power Consumption 5.9W max

Weight 1.43 kg (3.15 lb)

Dimensions (H x W x D) 43 x 330 x 173 mm (1.7 x 13 x 6.8 in)

Operating Temperature 0 to 50° C (32 to 122° F)

Operating Humidity 90% maximum relative humidity, non-condensing

Electromagnetic

Compliance

CE mark (commercial), FCC Part 15 Class A, EN 55022

(CISPR 22) Class A, VCCI Class A, C-Tick, KCC

Safety Agency

Approvals

UL listed (UL 60950-1)/CUL, CB, CCC
