Shop-Vac pro 60-si [4/9] Series

Shop-Vac micro 4 handheld [4/9] Series
(Not standard with all models)

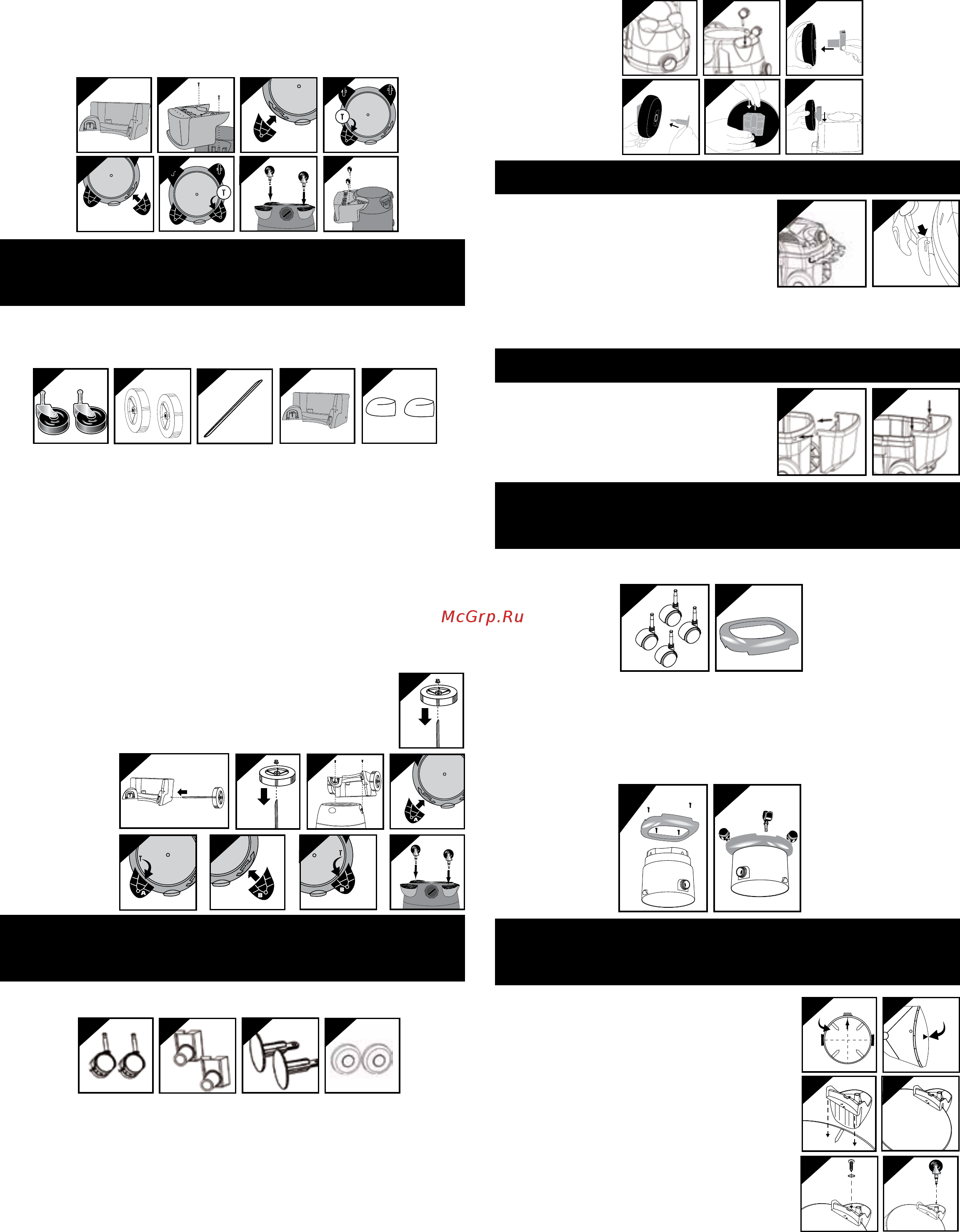

You will find two casters (45), two large rear wheels (46), one axle (47), rear dolly/
basket (48), two caster feet (49) and four screws with your wet/dry vacuum. Assemble as follows:
1. With cord disconnected from receptacle and tank cover removed, turn tank upside down so that
the bottom is facing up.
2. Place axle upright on a hard surface and hammer on (1) cap nut. Place (1) wheel on axle and slide
down to cap nut (Figure 50). Be sure flat side of wheel hub is facing outward.
3. Slide axle through holes provided in dolly/basket (Figure 51).
4. Slide remaining wheel onto axle and hammer on second cap nut (Figure 52).
5. Take rear dolly assembly and place into slots (on rear of tank opposite drain) and secure with
screws provided (Figure 53).
6. With tank drain facing you, take caster foot marked with the letter A (Figure 54) and place in
slot on left side of tank also marked with the letter A and secure with screw provided (Figure
55).
7. Take caster foot marked with the letter B (Figure 56) and place in slot on right side of tank
also marked with the leter B and secure with screw provided (Figure 57).
8. Insert casters into feet by placing stem of caster into holes provided. Apply
pressure and twisting motion until casters snap into place (Figure 58).
9. Return tank to upright position.
REAR WHEEL DOLLY/TOOL HOLDER
AND FRONT CASTER FEET ASSEMBLY
5. If flatwashers are included in hardware package place flatwasher over stem of caster before
installing casters into feet or accessory caddy. NOTE: Flatwashers are not required with all
units.
6. Install casters into caster feet and accessory caddy by inserting the caster stems into the
holes provided. Apply pressure and twisting motion until caster snap into place (Figure 43 &
44).
A
A
A
B
A
B
37
44
43
42
41
38
39
40
45
46
47
48
49
51
58
57
56
55
52
53
54
50
You will find two casters (a), two axle housings (b), two wheel plugs (c), two wheels (d), and two
screws with your wet/dry vacuum. Assemble as follows:
1. With cord disconnected from receptacle and tank cover removed, turn tank upside down so
that the bottom is facing up with the inlet towards you (Figure 59).
2. Insert casters into bottom of tank by placing stem of caster into holes provided. Apply pres-
sure and twisting motion until casters snap into place (Figure 60).
3. Mount wheel onto axle with smooth face of wheel outward (Figure 61).
4. Insert wheel plug through wheel and axle housing turning wheel plug until it seats flush with
outside of wheel (Figure 62).
5. Insert screw provided through back of axle housing (Figure 63).
6. Slide axle housing into dovetail slot at rear of tank: axle housing is tapered and should slide
into dovetail slot without excessive force (Figure 64). Tighten screw.
7. Repeat steps 3 through 6 for other wheel assembly.
8. Return tank to upright position.
ASSEMBLY FOR
All AROUND PLUS
®
SERIES
1. Replace tank cover and apply pressure with thumbs
to each latch until it snaps tightly in place. Make sure
both lid latches are clamped securely.
2. With rear of unit facing you, take tool holder and
position it with the tabs facing rear tank cover (Figure
65).
3. Press tabs of tool holder into the slots on mounting
lugs on rear of tank cover (Figure 66).
4. Press down until tabs snap into place.
NOTE: TOOL HOLDER NOT COMPATIBLE WITH ACCESSORY BASKET.
TOOL HOLDER ASSEMBLY
65
(Not standard with all models)
1. With rear of tank facing you, take accessory basket
and position with tabs facing rear of tank (Figure 67).
2. Insert tabs of accessory basket into slots on rear of
tank (Figure 68).
3. Press down until basket is secured into place.
ACCESSORY BASKET ASSEMBLY
a
b
c
d
59
64
63
62
60
61
66
67
68
DOLLY AND CASTER ASSEMBLY FOR
All AROUND PLUS
®
SERIES
You will find four casters (Figure 69) and one dolly (Figure 70) with your wet/dry
vacuum. Assemble as follows:
1. With cord disconnected from receptacle and tank cover removed, turn tank upside down so
that bottom is facing up.
2. Take dolly and slide onto bottom of tank making sure to line up screw holes on dolly with
screw holes on tank. Secure with screws provided (Figure 71).
3. Install casters into dolly by inserting the caster stems into the holes provided. Apply pres-
sure and twisting motion until the casters snap into place (Figure 72).
4. Return tank to upright position.
69
70
71
72
(Not standard with all models)
1. With cord disconnected from receptacle and tank cover
removed, turn tank upside down so that the bottom is
facing up.
2. With a pair of scissors, trim the enclosed template to fit
your size tank. Sizes will be 11”, 14” or 16” diameters.
3. Once template is cut out, place on bottom of tank. Align
inlet arrow on template with center of inlet on tank
(Figure 73).
4. If caster feet are attached together, separate by remov-
ing webbing.
5. Take caster foot marked with the letter A and align arrow
on foot (Figure 74) with arrow on template also marked
with the letter A (Figure 75).
6. Place groove of foot over rim of tank and push until the
caster foot is tight against bottom of tank (Figure 76).
7. Secure feet with screw and washer when provided
(Figure 77).
CASTER FEET AND CASTER ASSEMBLY
FOR METAL TANKS
A
Arrow
A
Tank bottom
B
B
A
A
Template
Bottom of Tank
73
76
75
74
78
77
