Positioning the ZOTAC ZBOX nano

• Do not cover or block the ventilation holes on ZOTAC ZBOX nano. To ensure

proper operation and reliability, leave aproximately 4 inches (10 cm) of spacing in

front of the ventilation holes.

• ZOTAC ZBOX nano mini-PC systems provide ample expansion in a miniature

form factor, please use connectors and cables that are appropriate in size to avoid

interference.

Mounting the ZOTAC ZBOX nano to an LCD monitor

The ZOTAC ZBOX nano is monitor-mountable using the included VESA mount.

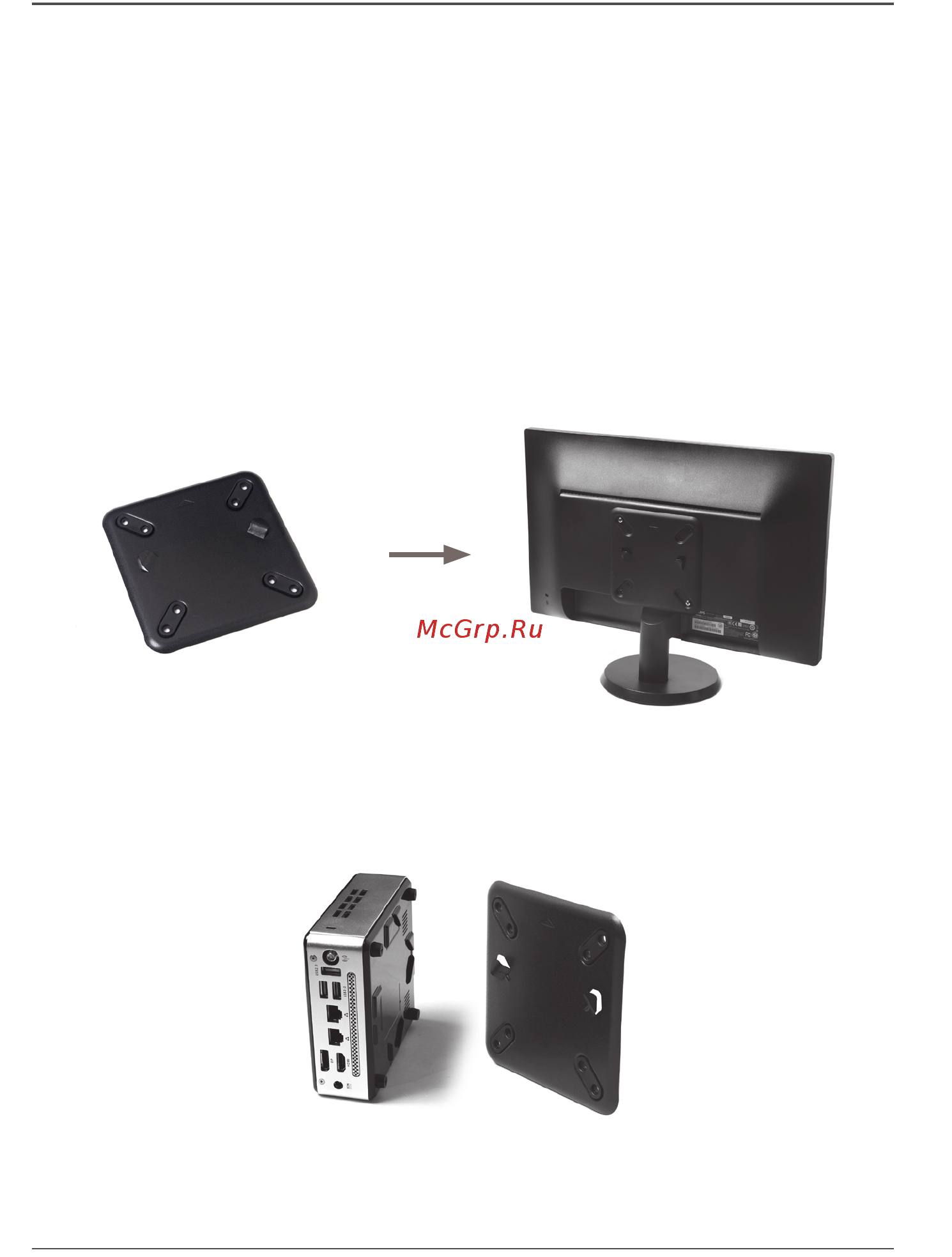

1. Secure the VESA mount to the LCD monitor using screws (not included).

Disclaimer: ZOTAC cannot be held liable for damages resulting from an improper installation.

2. Align the ZOTAC ZBOX nano mounting holes to the VESA mount attachment

pegs. Attach the ZOTAC ZBOX nano to the VESA mount and gently press down

to secure the ZBOX nano to the mount.
