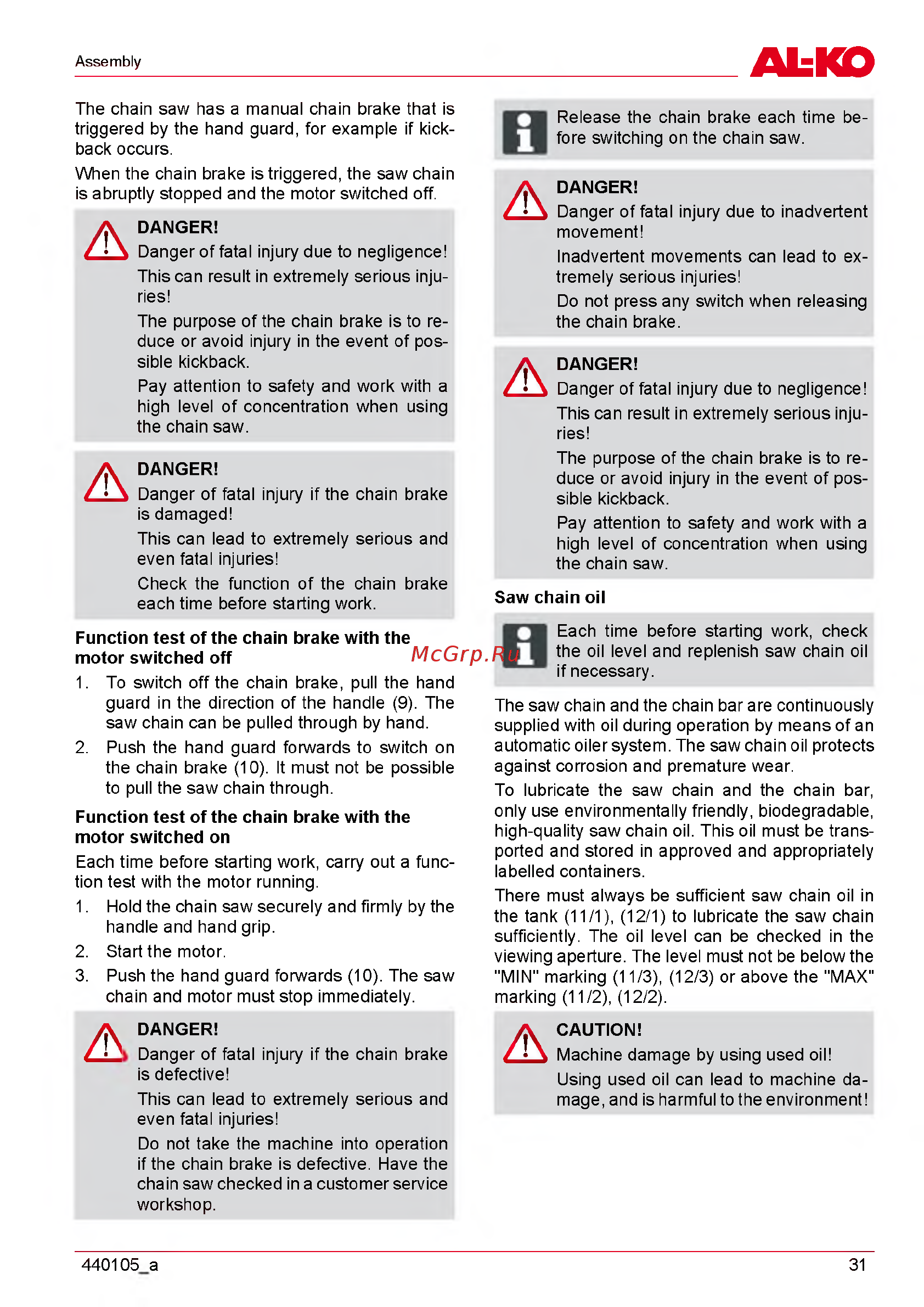

Al-Ko eks 2400/40 113123 Инструкция по эксплуатации онлайн [31/312] 189336
![Al-Ko eks 2400/40 113123 Инструкция по эксплуатации онлайн [31/312] 189336](/views2/1226712/page31/bg1f.png)
Assem bly
ALKO
The chain saw has a manual chain brake that is
triggered by the hand guard, for example if kick-
back occurs.
When the chain brake is triggered, the saw chain
is abruptly stopped and the motor switched off.
A
DANGER!
Danger of fatal injury due to negligence!
This can result in extremely serious inju-
ries!
The purpose of the chain brake is to re
duce or avoid injury in the event of pos-
sible kickback.
Pay attention to safety and work with a
high level of concentration when using
the chain saw.
A
DANGER!
Danger of fatal injury if the chain brake
is damaged!
This can lead to extremely serious and
even fatal injuries!
Check the function of the chain brake
each time before starting work.
Function test of the chain brake with the
motor switched off
1. To switch off the chain brake, pull the hand
guard in the direction of the handle (9). The
saw chain can be pulled through by hand.
2. Push the hand guard forwards to switch on
the chain brake (10). It must not be possible
to pull the saw chain through.
Function test of the chain brake with the
motor switched on
Each time before starting work, carry out a func-
tion test with the motor running.
1. Hold the chain saw securely and firmly by the
handle and hand grip.
2. Start the motor.
3. Push the hand guard forwards (10). The saw
chain and motor must stop immediately.
Release the chain brake each time be
fore switching on the chain saw.
A
DANGER!
Danger of fatal injury due to inadvertent
movement!
Inadvertent movements can lead to ex-
tremely serious injuries!
Do not press any switch when releasing
the chain brake.
A
DANGER!
Danger of fatal injury due to negligence!
This can result in extremely serious inju-
ries!
The purpose of the chain brake is to re
duce or avoid injury in the event of pos-
sible kickback.
Pay attention to safety and work with a
high level of concentration when using
the chain saw.
Saw chain oil
Each time before starting work, check
the oil level and replenish saw chain oil
if necessary.
The saw chain and the chain bar are continuously
supplied with oil during operation by means of an
automatic oiler system. The saw chain oil protects
against corrosion and premature wear.
To lubricate the saw chain and the chain bar,
only use environmentally friendly, biodegradable,
high-quality saw chain oil. This oil must be trans-
ported and stored in approved and appropriately
labelled containers.
There must always be sufficient saw chain oil in
the tank (11/1), (12/1) to lubricate the saw chain
sufficiently. The oil level can be checked in the
viewing aperture. The level must not be below the
"MIN" marking (11/3), (12/3) or above the "MAX"
marking (11/2), (12/2).
A
DANGER!
Danger of fatal injury if the chain brake
is defective!
This can lead to extremely serious and
even fatal injuries!
Do not take the machine into operation
if the chain brake is defective. Have the
chain saw checked in a customer service
workshop.
A
CAUTION!
Machine damage by using used oil!
Using used oil can lead to machine da-
mage, and is harmful to the environment!
440105 a 31
