Xerox Phaser 3040 [299/430] Toner dispense assembly
![Xerox Phaser 3040 [299/430] Toner dispense assembly](/views2/1228085/page299/bg12b.png)
Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 4-89
Service Parts Disassembly

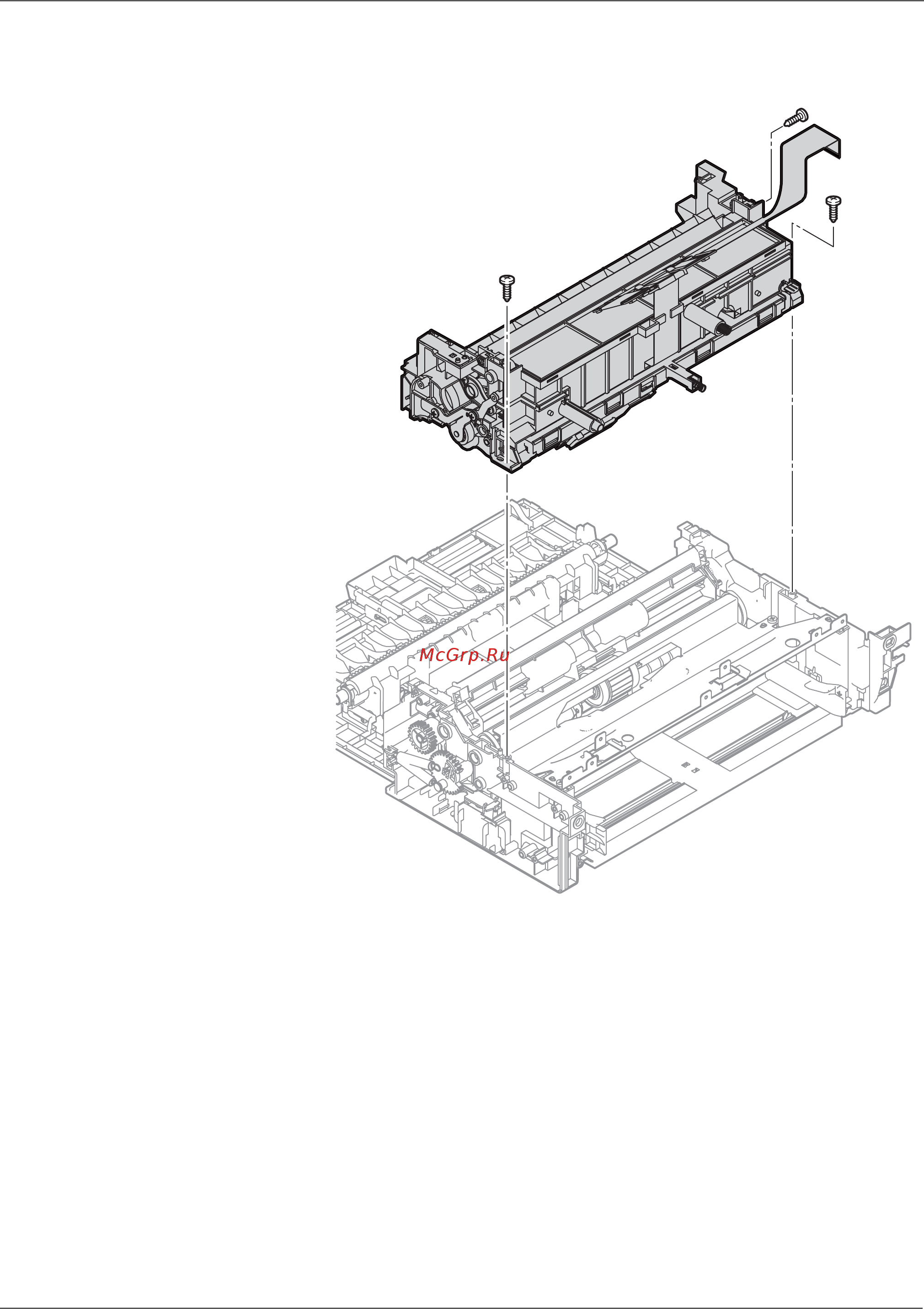

Toner Dispense Assembly
PL4.1.1
Caution
The Toner Cartridge CRUM reader harness is attached to the Toner Dispense
Assembly.
1. Remove the Main Tray (page 4-58).
2. Remove the Front Cover (page 4-60).
3. Remove the Inner Front Cover (page 4-62).
4. Remove the Toner Cartridge (page 4-5).
5. Remove the Right Cover (page 4-57).
6. Remove the Left Cover (page 4-64).
7. Remove the Scanner (page 4-109).
8. Disconnect P/J7601 from the Front USB Board.
9. Disconnect P/J6501 from the WiFi Adaptor.
10. Remove the Top Cover (page 4-52).
11. Remove the Toner Motor (page 4-90).

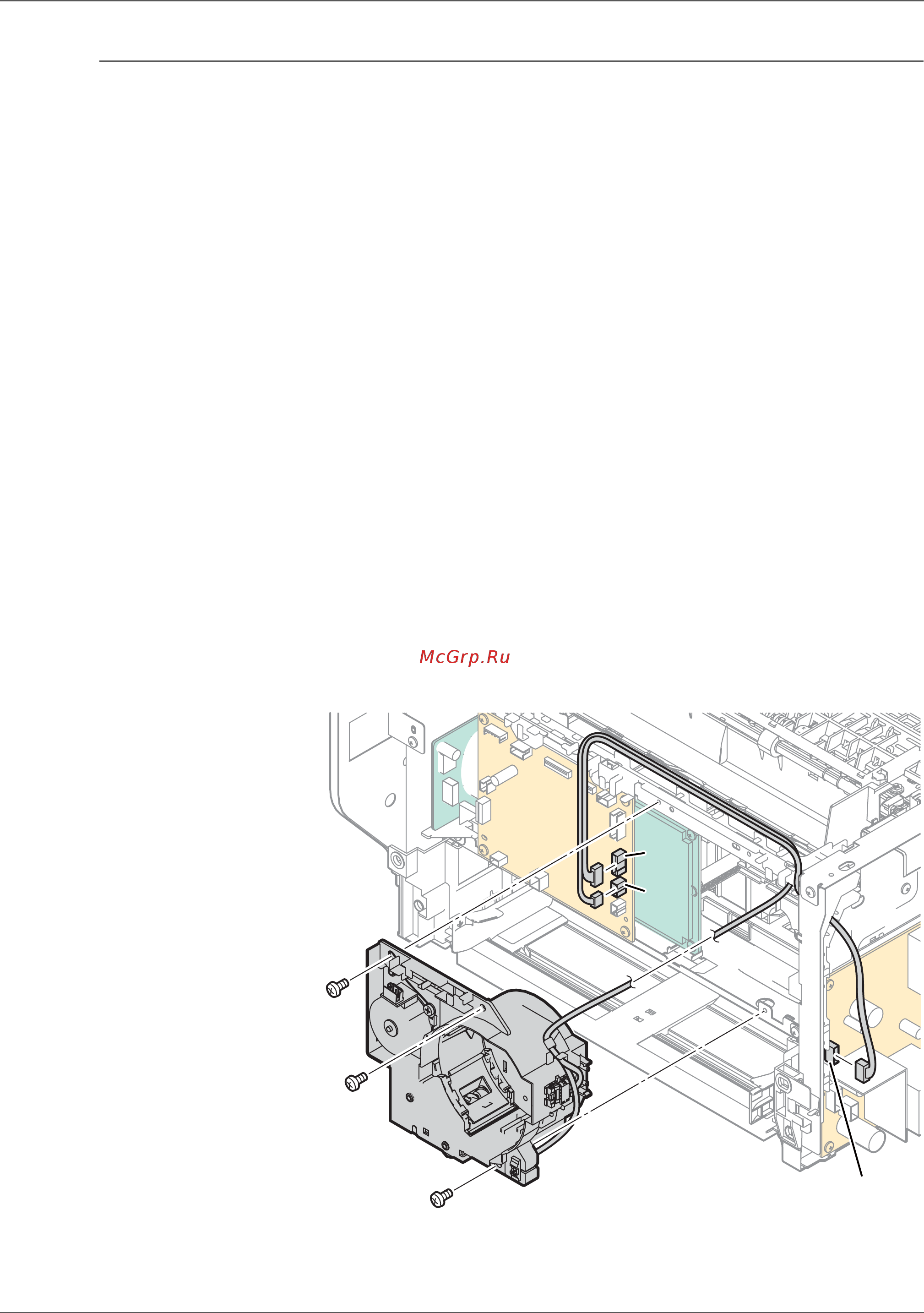

12. Disconnect P/J203 from the LVPS and release the harness from the guides.
13. Disconnect P/J20 and P/J21 from the MCU Board and release all the
harnesses from the Dispense Assembly harness guide.
14. Remove 3 screws (silver, metal, 6mm) that secure the Dispense Assembly to
the chassis.
15. Disconnect the CRUM reader to remove the assembly.
s3040-083
P/J20
P/J21
P/J203
