Operation
6
6
Operation

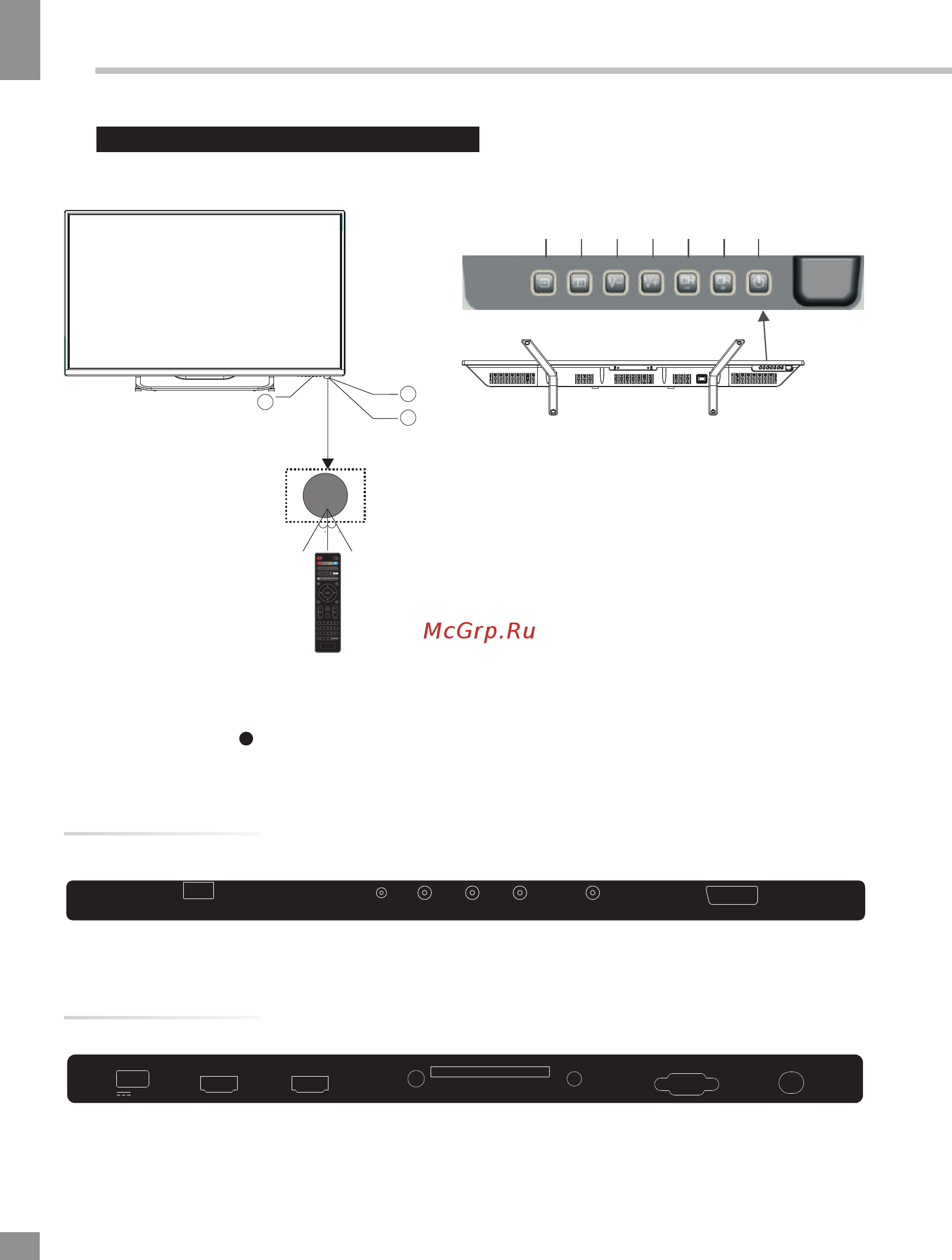

Front panel
Control elements
1. Remote control sensor
2. I
ndicator LED: RED STANDBY
3. Key board
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V-/V+
Adjust sound level.
In MENU mode, press“V+”or“V-”to
adjust the item that you selected.
4．CH+/CH-
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
SOURCE MENU V- V+ CH- CH+ Standby
30 30
3
1
2
REAR AV Connections
All the terminals are(from left to right):
AC Power Socket, YPbPr INPUT, VIDEO INPUT, AUDIO INPUT, COAXIAL OUTPUT, SCART INPUT.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
USB, HDMI2, HDMI1, HEADPHONE, CI, PC AUDIO, VGA, RF.
Note: When HDMI port get DVI signal ,the audio signal receives from the PC
Audio channel.
AC-IN PUT
100-2 40V~50/60Hz
SCART
DIGI TAL AUD IO O UTPUT
(COA XI AL )
RL
YPbPr
VIDEO
HDMI2 HDMI1
HEADPHONE
COMMON INTERFACE(CI)
PC AUDIO
VGA
RF
USB
5V
500mA
