Before you start
5
5
Before you start
Connection
Outdoor Antenna Connection
Use 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the unit casing.
Other connections
• Connect the audio sources (Including
DVD, VCDR, CAMCORDER, etc.) to the proper
Audio input jacks ‘L’ and ‘R’.
• Connect the video source to the
Composite video jack by RCA cable.
• Component input Y/Pb/Pr is intended
to receive component video signal from the
external device.
• Connect the power cord to the power
socket of this unit.
• When using the LED as a computer
screen, connect the PC to the VGA jack from
the monitor using the VGA cable (not included).
• This unit has PC audio in jack. Connect
this jack to PC main unit with related audio
cable in PC mode and adjust the volume to
what you want.
• If the video source has a HDMI output
jack, you can connect the signal to the monitor
by the HDMI cable (not included).
• Connect your headphones or earphones
(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

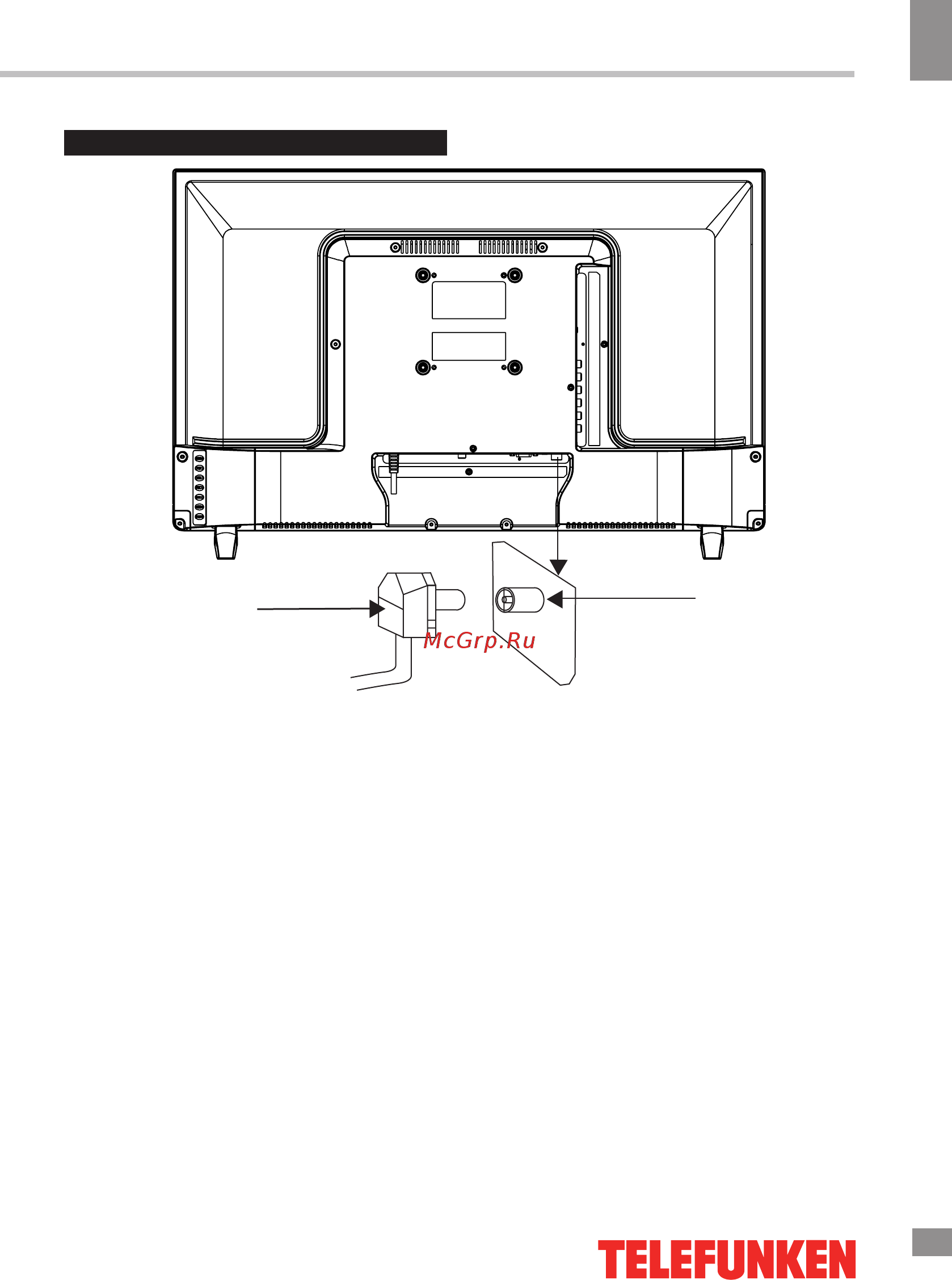

75 Ohm co-axis cable
TVRF antenna jack
Antenna cable connector
