T 15+3 Li, T 18+3 Li
15
GB
Further technical data on the charger and battery packs can be found on page 6.
5 Machine features
The specified illustrations appear at the beginning of
the Operating Instructions.
6Operation
6.1 Charger cable holder [3-2]
Unwind the cable completely from the recess
before using the charger.
6.2 Changing the battery pack [2]
Battery pack is ready for use immediately upon
delivery and can be charged at any time.
When using NiMH or NiCd battery packs, the va-
cant opening can be closed with the blanking plug
[2-1]
.
The capacity display
[1-10]
automatically displays
the charge state of the battery pack
[1-3]
when the
ON/OFF switch is actuated:
(not NiCd- and NiMH-battery packs)
6.3 Charging the battery pack [3A]
The LED
[3-1]
on the charger indicates the respec-
tive operating status of the charger.
7Settings
7.1 Changing direction of rotation [1-4]
• Switch to the left = clockwise rotation
• Switch to the right = counterclockwise rotation
7.2 Changing gear [1-6]
• Gear switch forwards (digit 1 visible) = 1st gear
• Gear switch to rear (digit 2 visible) = 2nd gear
7.3 Fastening
Adjust the switch so that its marking
[1-9]
faces the
screw symbol
[1-8]
.
Adjust the torque accordingly at the torque wheel
[1-
12]
.
Position 1 = low torque
Position 25 = high torque
An
acoustic signal
sounds when the preset torque is
[1-1]
Buttons for releasing the battery pack
[1-2]
Bit store
[1-3]
On/Off switch
[1-4]
Right/left switch
[1-5]
LED lamp
[1-6]
Gear switch
[1-7]
Drilling symbol
[1-8]
Screwdriving symbol
[1-9]
Drilling/Fastening selector switch
[1-10]
Capacity display
[1-11]
Belt clip
[1-12]
Torque thumbwheel
[1-13]
Insulated gripping surfaces (grey shaded
area)
[2-1]
Battery blanking plug
[3-1]
LED-Display
[3-2]
Cable holder
[3B]
Wall mount for charger

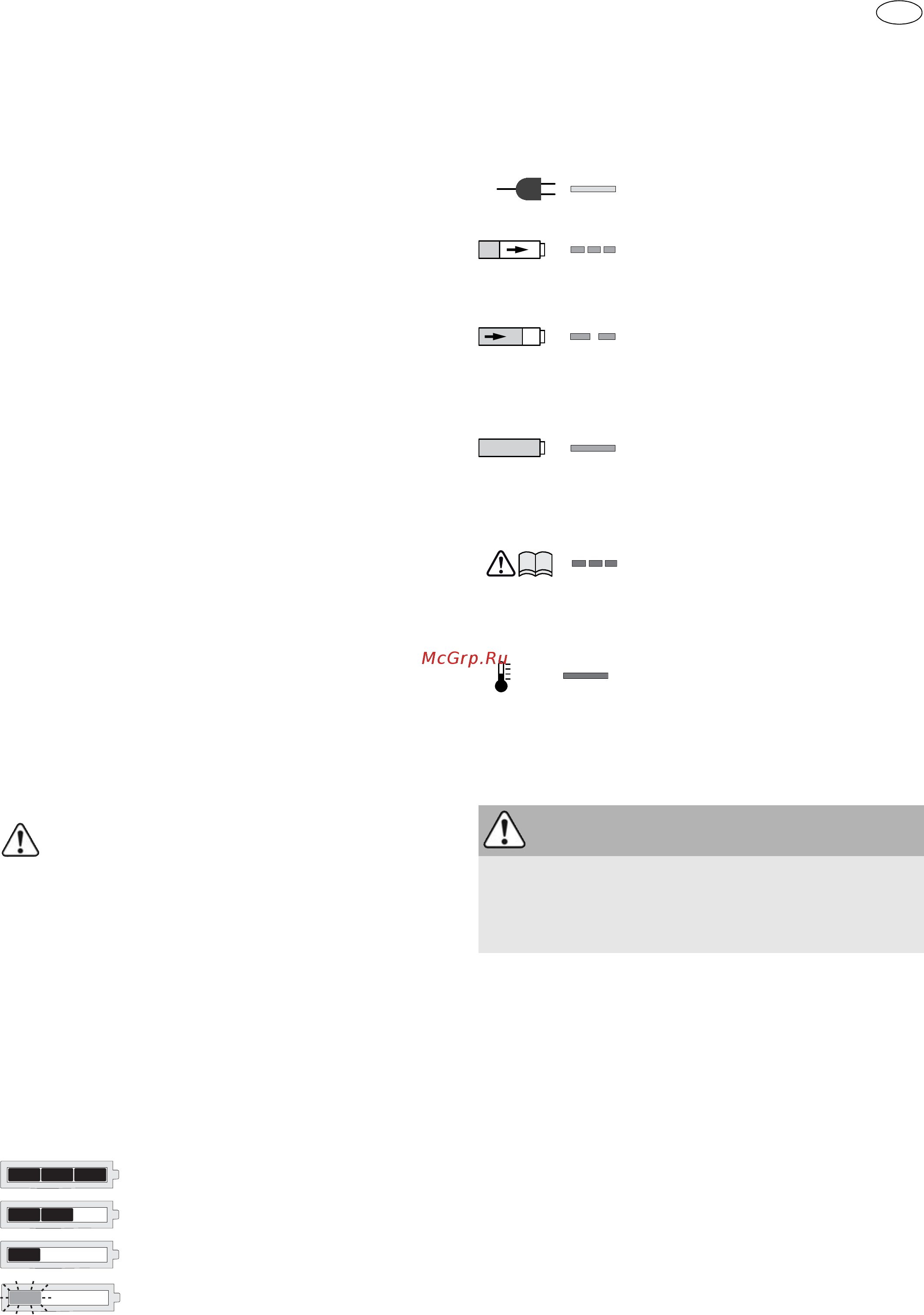

70 - 100 %
40 - 70 %
15 - 40 %
< 15 %
Recommendation:
Charge bat-
tery pack before further use.
LED yellow - lit continuously
Charger is ready to use.
LED green - flashing quickly
Charging battery pack at maxi-
mum rate.
LED green - flashing slowly
Charging battery pack with
reduced current, begins at 90%
battery level.
LED green - lit continuously
Charging process is complete or
will not resume because the cur-
rent battery level is above 90%.
LED red - flashing
General fault indication, e.g.
incomplete contact, short circuit,
defective battery pack, etc.
LED red - lit continuously
Battery temperature is outside
the permitted range.
CAUTION
Risk of injury
Always switch off the power tool before adjusting
settings!
