PA3500/4200
3

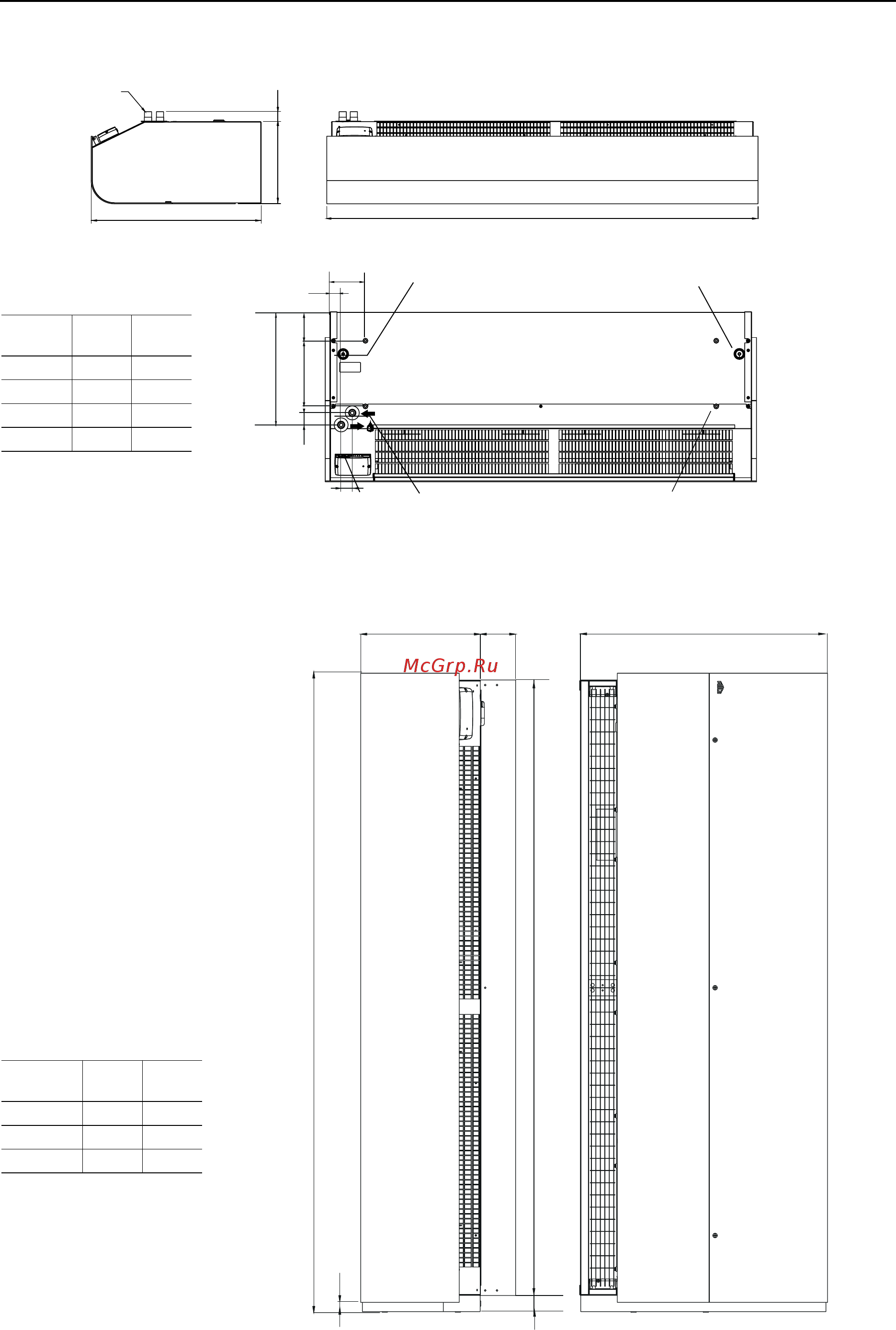

Dimensions
The unit can be
reversed and placed
on either side of the
door. Connections
and PC Board SIRe
are positioned near
floor level when the
air curtain is placed
to the left of the door
and at the top when it
is placed to the right
(seen from the inside).
Vertical mounting
with Vertical kit and Design kit for vertical mounting
with Vertical kit
and Design kit for
vertical mounting
*)
PA4200
611
L
295 36
40
127
A
43
235 102
404
PA4210/4215: 4 M8
PA4220: 6 M8
PA4225: 8 M8
L
[mm]
A
[mm]
PA4210 1039 40
PA4215 1549 40
PA4220 2039 40
PA4225 2549 39
Water connection
Electrical connection
DN20 (3/4"),
outside thread
SIRe
PA 2 m; 2,5 m
Electrical connection
All models
Horizontal mounting
611
L1
23
295 87
40
L2
L1
[mm]
L2
[mm]
PA4215* 1572 1515
PA4220* 2062 2005
PA4225* 2572 2515
