Инструкция по эксплуатации Страница: 2

Frico acch20wh [2/56] Ac corinte

AC Corinte

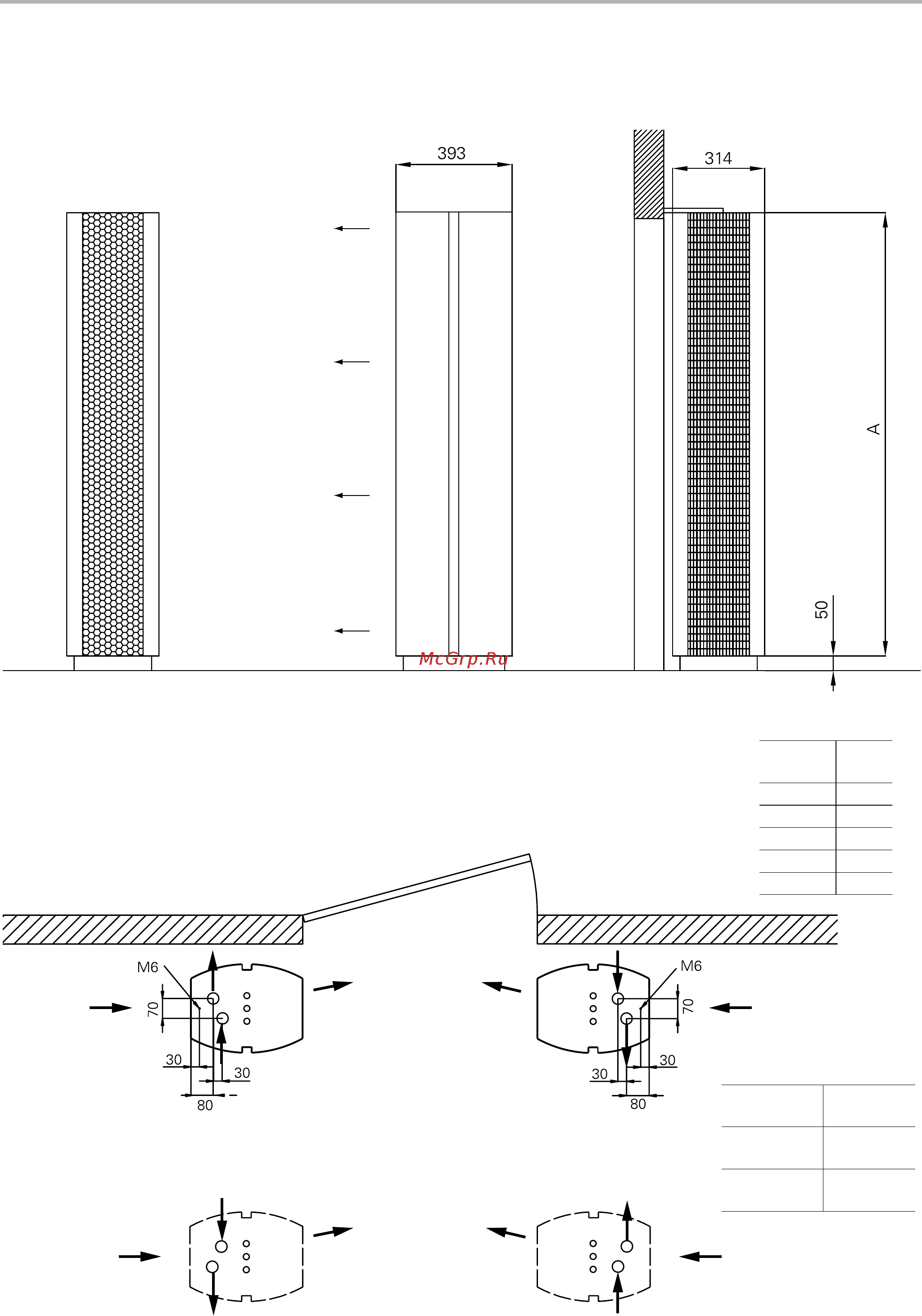

Dimensions and connections

[mm]

ACC10 1000

ACC15 1500

ACC20 2000

ACC25 2500

ACC30 3000

3/4”

DN20

1”

DN25

ACC Hori-

zontal units

ACC Vertical

units

Vertical ACC E/W

Intake

Upper part

of the unit

seen from

above.

Details of ACC W

Connection dimensions,

inside thread

Bottom part

of the unit

seen from

above.

Outlet

Doorway

Содержание

Thermozone ac corinte 1
Ac corinte 2
Details of acc w 2
Dimensions and connections 2
Vertical acc e w 2
Ac corinte 3
Details of acc w 3
Dimensions and connections 3
Horizontal acc e w 3
Ac corinte 4
Mounting 4
To open 4
Ac corinte 5
Acc wallbracket 5
Fig 3 minimum distance acc e fig 4 minimum distance acc w 5
Minimum distance 5
Ac corinte 6
Accessories ac corinte e w 6
3 6 7 8 7
Ac corinte 7
C1 c6 c7 c2 7
Electric regulations options 7
L n 1 2 3 4 5 6 l l 7
Level 1 7
Supply heat control 7
Wiring diagrams ac corinte 7
X0 5mm² 7
3 6 7 8 8
Ac corinte 8
C1 c6 c7 c2 8
Electric regulations options 8
L n 1 2 3 4 5 6 l l 8
Level 2 8
Wiring diagrams ac corinte 8
X0 5mm² 4x0 5mm² 8
3 6 7 8 9
4 5 8 7 9 9
Ac corinte 9
C1 c6 c7 c2 9
Control heat 9
L n 1 2 3 4 5 6 9
L n 1 2 3 4 5 6 l l 9
L n 4 5 8 9 9
Supply heat control supply heater supply fan 9
Wiring diagrams ac corinte 9
X0 5mm² 9
Ac corinte 10
L n 1 2 3 4 5 10
Level 1 10
Water regulations options 10
Wiring diagrams ac corinte 10
Ac corinte 11
L n 1 2 3 4 5 6 11
Level 2 11
Water regulations options 11
Wiring diagrams ac corinte 11
X0 5mm² 11
X0 5mm² 2 pe 11
Ac corinte 12
Level 3 12
Water regulations options 12
Wiring diagrams ac corinte 12
Ac corinte 13
Ac corinte wl 13
Output charts water 13
Ac corinte 14
Ac corinte wh 14
Output charts water 14
Ac corinte 15
Ac corinte 16
Pressure drop water 16
The pressure drop is calculated for an average temperature of 70 c pvv 80 60 for other water temperatures the pressure drop is multiplied by the factor k 16
Ac corinte 17
Technical specifications 17
Ac corinte 18
Montage och bruksanvisning 18
Ac corinte 19
Ac corinte 20
Ac corinte 21
Assembly and operating instructions 21
Ac corinte 22
Ac corinte 23
Ac corinte 24
Montage und betriebsanleitungen 24
Ac corinte 25
Ac corinte 26
Ac corinte 27
Ac corinte 28
Consignes de montage et mode d emploi 28
Ac corinte 29
Ac corinte 30
Ac corinte 31
Ac corinte 32
Instrucciones de instalación y uso 32
Ac corinte 33
Ac corinte 34
Ac corinte 35
Ac corinte 36
Asennus ja käyttöohje 36
Ac corinte 37
Ac corinte 38
Ac corinte 39
Ac corinte 40
Montage en bedieningsinstructies 40
Ac corinte 41
Ac corinte 42
Ac corinte 43
Ac corinte 44
Monterings og bruksanvisning 44
Ac corinte 45
Ac corinte 46
Ac corinte 47
Ac corinte 48
Instrukcja montażu i obsługi 48
Ac corinte 49
Ac corinte 50
Ac corinte 51
Ac corinte 52
Инструкция по монтажу и эксплуатации 52
Ac corinte 53
Ac corinte 54
Ac corinte 55
