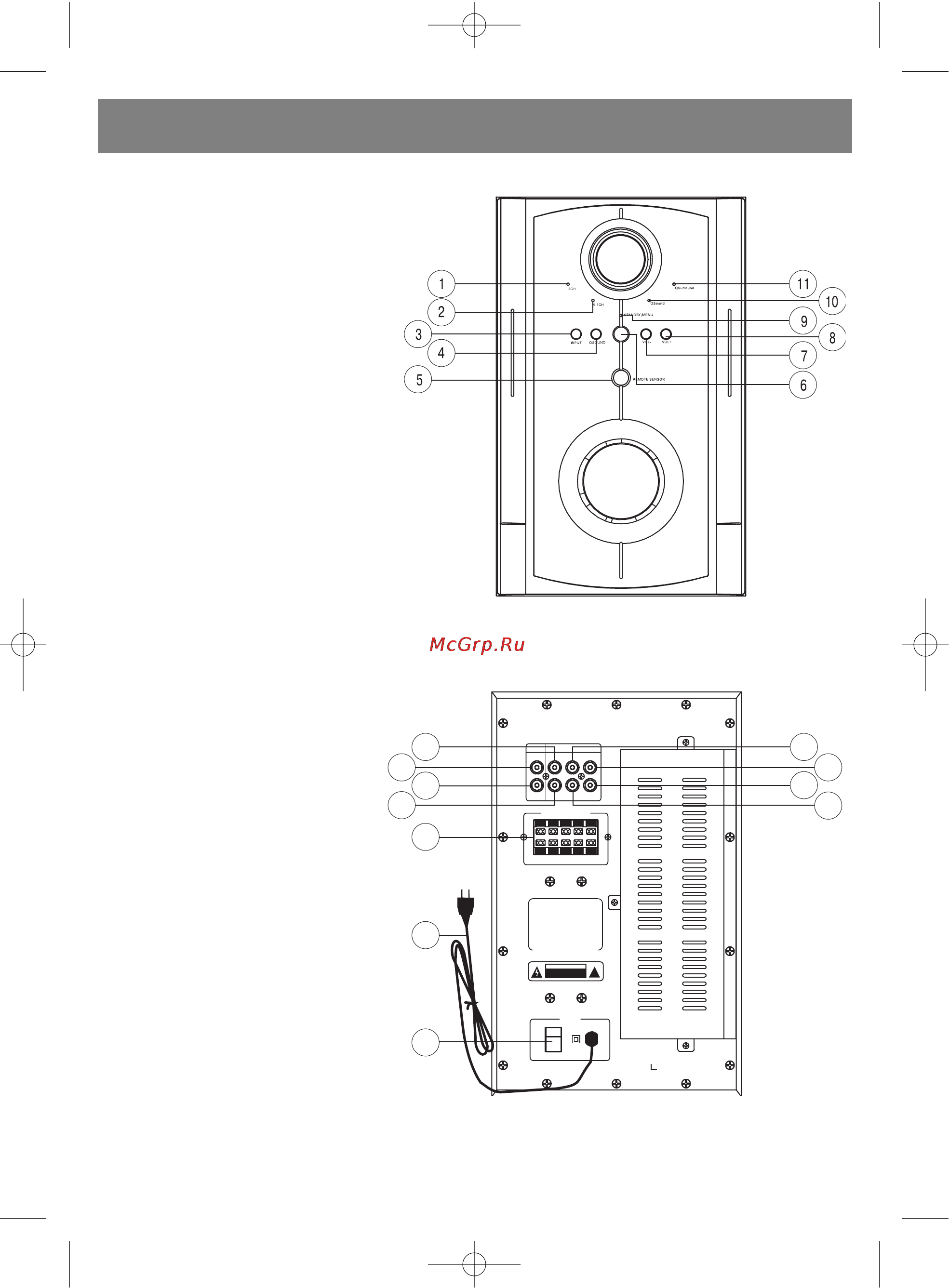

FRONT PANEL 
CONTROLS AND FUNCTIONS
1. 2CH: 2 Channel Input Indicator.
2. 5.1 CH: 5.1 Channel Input Indicator.
3. INPUT Button.
4. SURROUND: Surround Sound Decoder.
5. REMOTE SENSOR: Remote Receiver.
6. STANDBY: Power Standby.
7. VOL#: Volume Down. 8.VOL+:VolumeUp.
9. MUTE: Power Standby and Mute Indicator.
10. SURR. A: 3D Stereo Indicator.
11. SURR. B: 5.1 Stereo Indicator.
REAR PANEL CONTROLS AND FUNCTIONS
12. 5.1CH Subwoofer Audio Input.
13. Stereo Left Audio Input.
14. Stereo Right Audio Input.
15. 5.1CH Centre Audio Input.
16. Speaker Output.
FR: Front Right Speaker Output.
FL: Front Left Speaker Output.
C: Centre Speaker Output.
RL: Rear Left Speaker Output.
RR: Rear Right Speaker Output.
17. AC Power Cord.
18. Power On/Off Switch.
19. 5.1CH Rear Left Audio Input.
20. 5.1CH Front Left Audio Input.
21. 5.1CH Front Right Audio Input.
22. 5.1CH Rear Right Audio Input.
POWER
ON
OFF
AC~220V/50Hz
2CH 5.1CH INPUT
LWRLFL
C
RR FRR
FR FL
C
RL RR
SPEA KER OUTPUT
SERIAL NO:
CAUTION
!
RISK OF ELECTRIC SHOCK
DO NOT OPE N
5.1 Power Amplified Home Theatre
Speaker System w/ Remote Control
POWER SOURCE :AC~220V/50Hz
MOD EL NO . :AV#2009
POW ER CONS UMPTIO N:200W
12
13
14
15
16
17
18
20
19
22
21
