4. Connection and operation

It is necessary to re-activate the tool before the operation start. To re-activate the tool pour the pure

paraffin through the inlet connecting pipe when the trigger is open, then blow the tool through with

the dry compressed air. Repeat it 2 or 3 times.

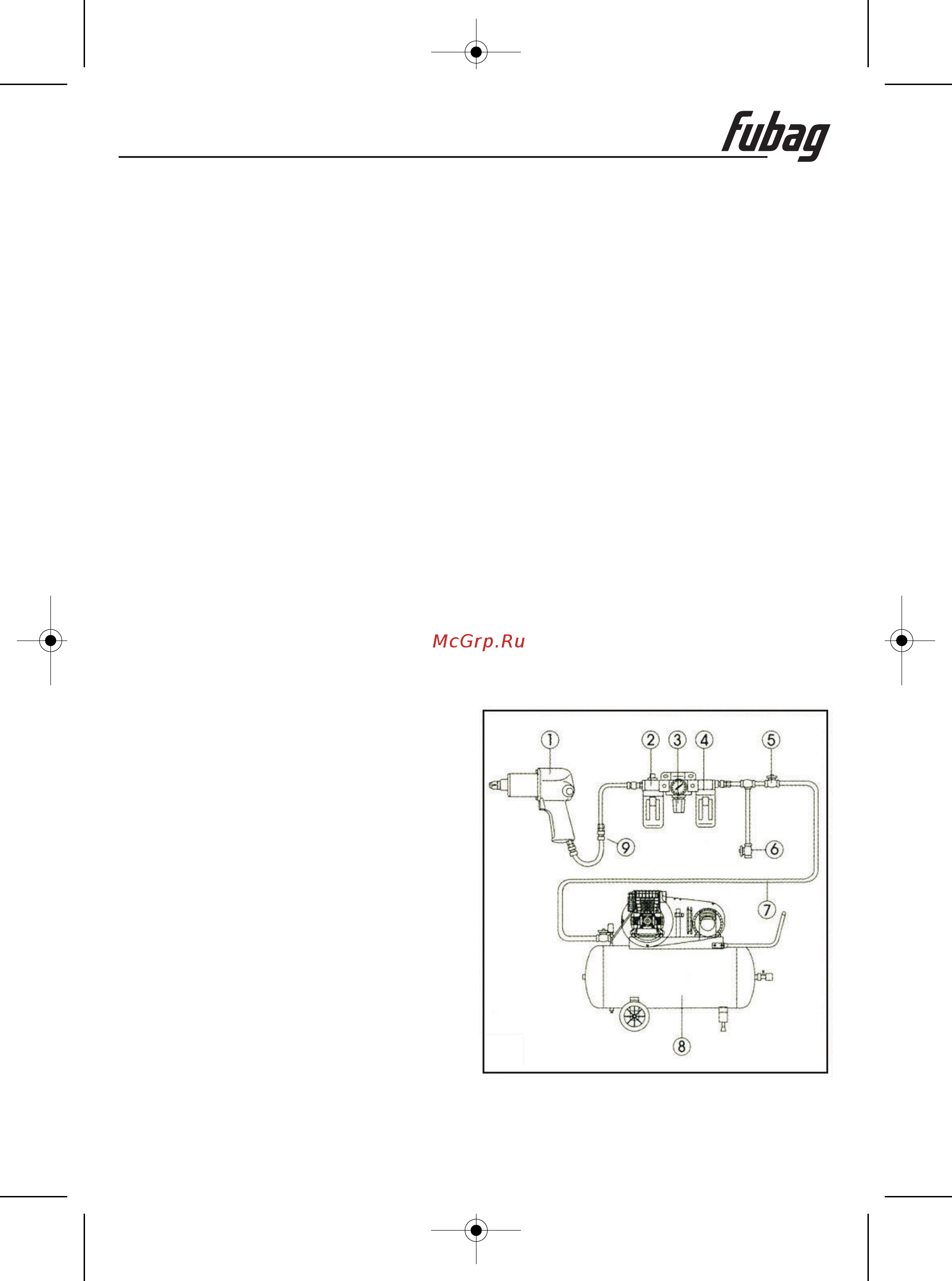

The system of the compressed air lead-in to the tool is in the below diagram.

- Before the first putting the tool into operation it is necessary to pour in 5-10 ml of the machine oil as

per specification SAE#10 or its analog through the connecting pipe of the compressed air lead-in.

Blow the air hose through. Connect it to the tool, press the starting lever and operate the tool at no

load running within 2-3 minutes.After it release the starting lever.

- If the lubricator is not used during the operation it is necessary to pour 5-10 ml of the machine oil as

per specification SAE#10 or its analogue into the inlet connecting pipe of the tool every operating

hour.

- Use only the recommended lubricators

- Check the thread connection tightening firmness on the housing of the tool periodically during the

maintenance their slackening is not allowed.

- The tool provides fast gripping (screwing and unscrewing) of the thread hardware. The heads are

to be of the impact type with the corresponding size. Do not use any other head types.

- The moment of the reinforce of the button rotation the values of the moment are indicated around

can be adjusted. The lower value denotes little force the high onу denotes high force.

- Make sure the reverse switcher is set up every time before screwing and unscrewing in a proper

way. The symbol F denotes screwing, while the symbol R stands for unscrewing. Screwing is

defined as clockwise rotation.

-Avoid mechanical damages of the tool as it may cause malfunctions or failure.

- Keep the tool clean to provide its proper operation.

–

;

“” “”

1. tool

2. il lubricator

3. ressure governor

4. ilter

5. losing cock

6. ressure release cock

7. onduit

8. ompressor

9. ose

Air
