CONNECTIONS

Caution: Make sure the power is off, when connect satellite speakers to the subwoofer unit

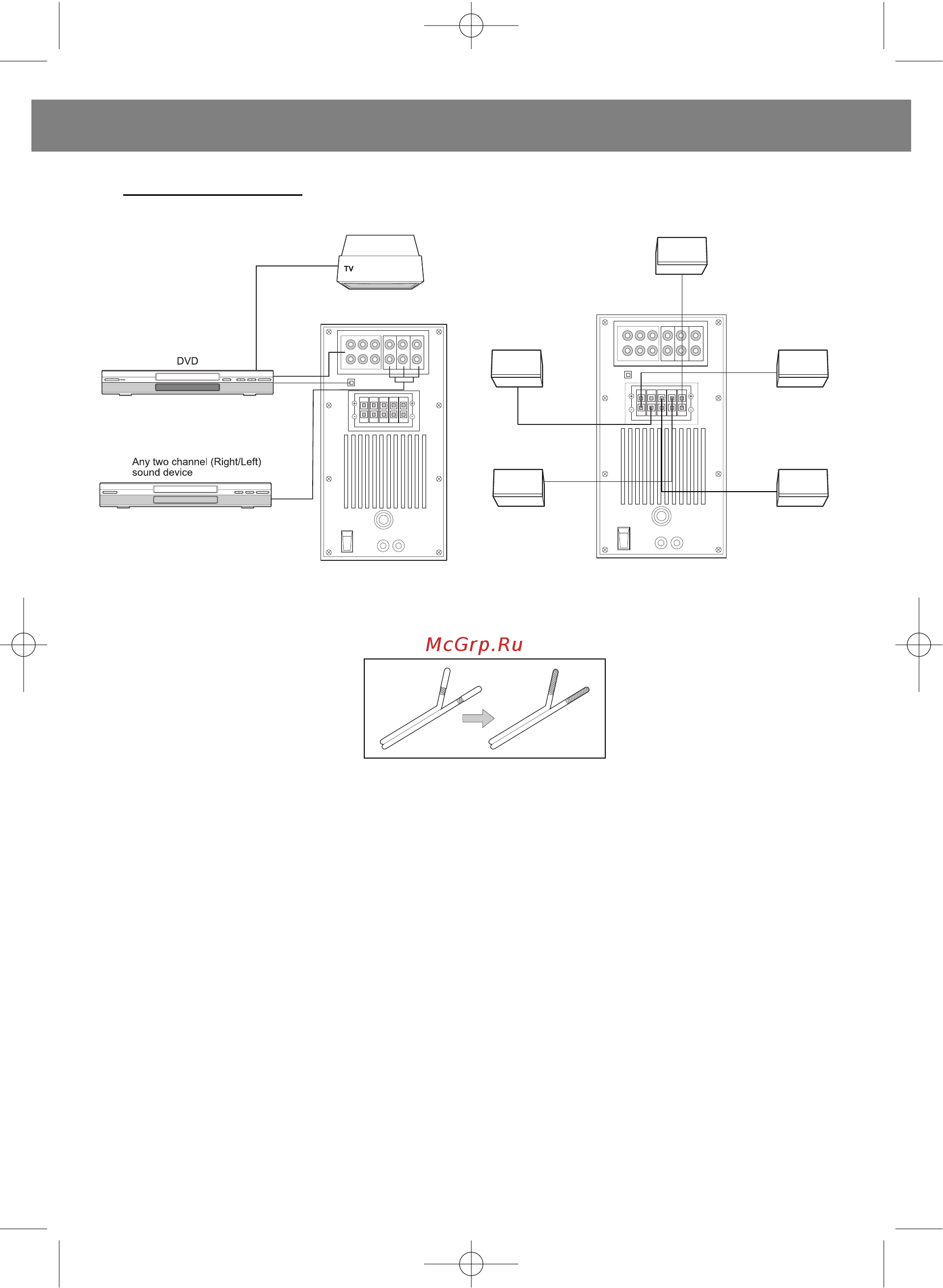

1. Cut off the cable coating and twist the wire. (Diagram Below)

2. Connect Front-Right satellite speaker to the Front-Right Output connector at the back of the sub-

woofer.

3. Connect Front-Left satellite speaker to the Front-Left Output connector at the back of the subwoofer.

4.Connect Rear-Right satellite speaker to the Rear-Right Output connector at the back of the sub-

woofer.

5. Connect Rear-Left satellite speaker to the Rear-Left Output connector at the back of the subwoofer.

6. Connect Center satellite speaker to the Center Output connector at the back of the subwoofer.

7. Be sure that all the speaker cables +, -, are connected correctly, the sound will not be clear when

connect wrongly.

ENGLISH

CENTER SPEAKER

FRONT /

LEFT

SPEAKER

REAR /

LEFT

SPEAKER

REAR /

RIGHT

SPEAKER

FRONT /

RIGHT

SPEAKER
