5. INSTALLATION AND OPERATION GUIDE
1. Connect the subwoofer and the front, center, surround speakers with link cables.
2. Insert one end of the signal input cable into the output port of audio (video) player (DVD, CD/VCD,TV,TAPE), then connect another
end with input port at the back of the subwoofer according to the red and the white cable respectively.
3. Revolve all the function knobs to minimum volume then press the power button.
4. Plug into power connector for power.
5. Press button «5.1/ST» to select the sound field mode. select «5.1», the six speakers are on playing despite AC-3 or SURR. input, select
«ST», only the front speakers and the subwoofer are on work.
6. Press «AC-3 /SURR button to switch between AC-3(6 chanels input) or SURR. (two channels input).
7. Adjust the F.VOL knob for your satisfied front speaker volume effect.
8. Adjust the S.VOL knob for your satisfied surround effect.
9. Adjust the C.VOL knob for your ideal center effect.

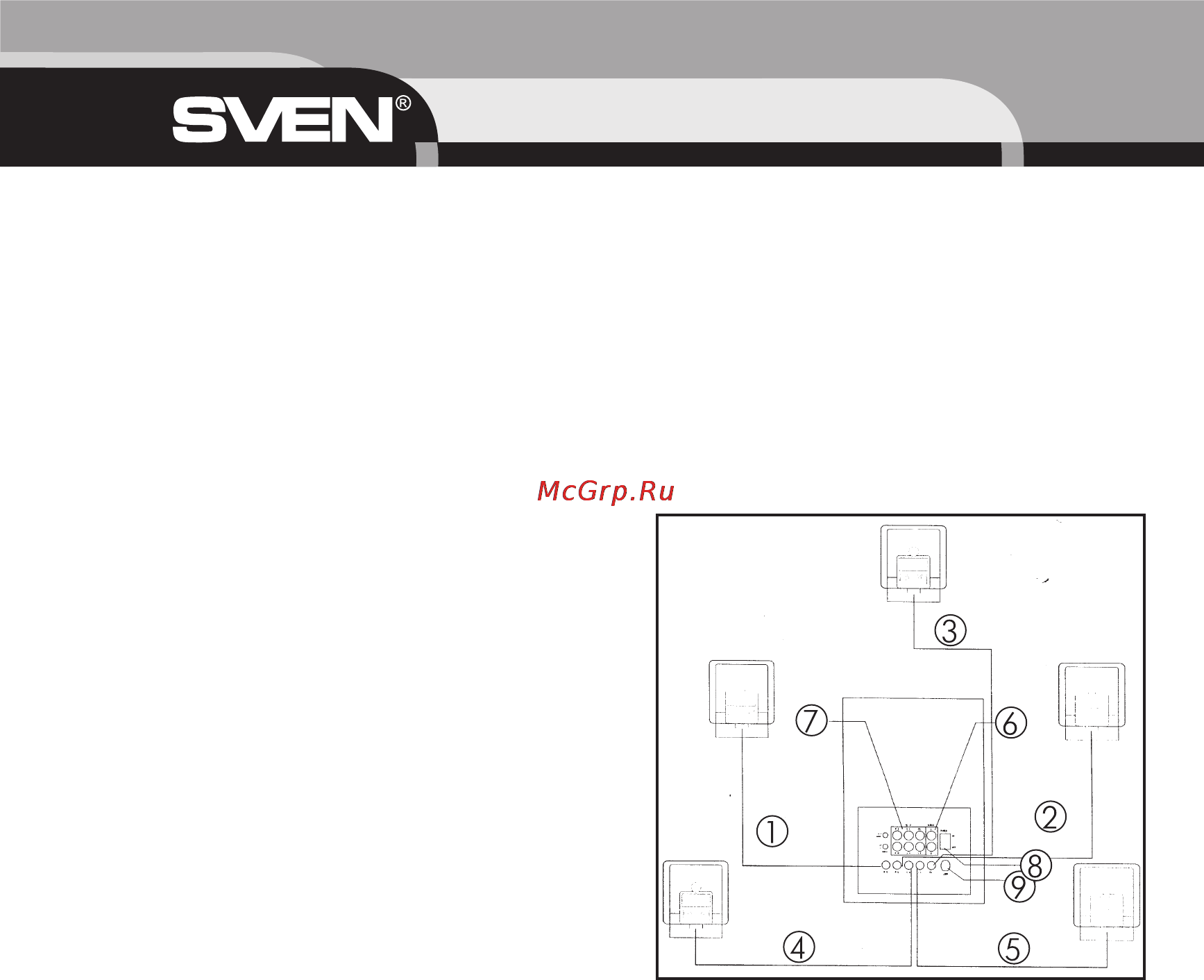

Connection guide
1. L. front output
2. R. front output
3. Center output
4. L. surround output
5. Surround output
6. Stereo signal input
7. AC-3 input port
8. Power ON/OFF
9. Power cable
