Gigabyte GA-Z270-HD3P [39/44] 2 drivers installation
![Gigabyte GA-Z270-HD3P [39/44] 2 drivers installation](/views2/1232897/page39/bg27.png)
1. Copy the IRST folder under \Boot in the driver disk to your USB thumb drive.
2. Boot from the Windows setup disk and perform standard OS installation steps. When the screen requesting
you to load the driver appears, select Browse.
3. Insert the USB thumb drive and then browse to the location of the driver. The locations of the drivers are
as follows:
Windows32-bit:\iRST\f6py-x86
Windows64-bit:\iRST\f6py-x64
4. When a screen as shown, select IntelChipsetSATARAIDController and click Next to load the driver and
continue the OS installation.
Please visit GIGABYTE's website for more software information.
PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.
PleasevisitGIGABYTE'swebsitefordetailsonconguringaRAIDarray.
• Beforeinstallingthedrivers,rst install the operating system. (The following instructions use
Windows 10 as the example operating system.)
• After installing the operating system, insert the motherboard driver disk into your optical drive. Click on
the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select
"RunRun.exe."(OrgotoMyComputer,double-clicktheopticaldriveandexecutetheRun.exeprogram.)

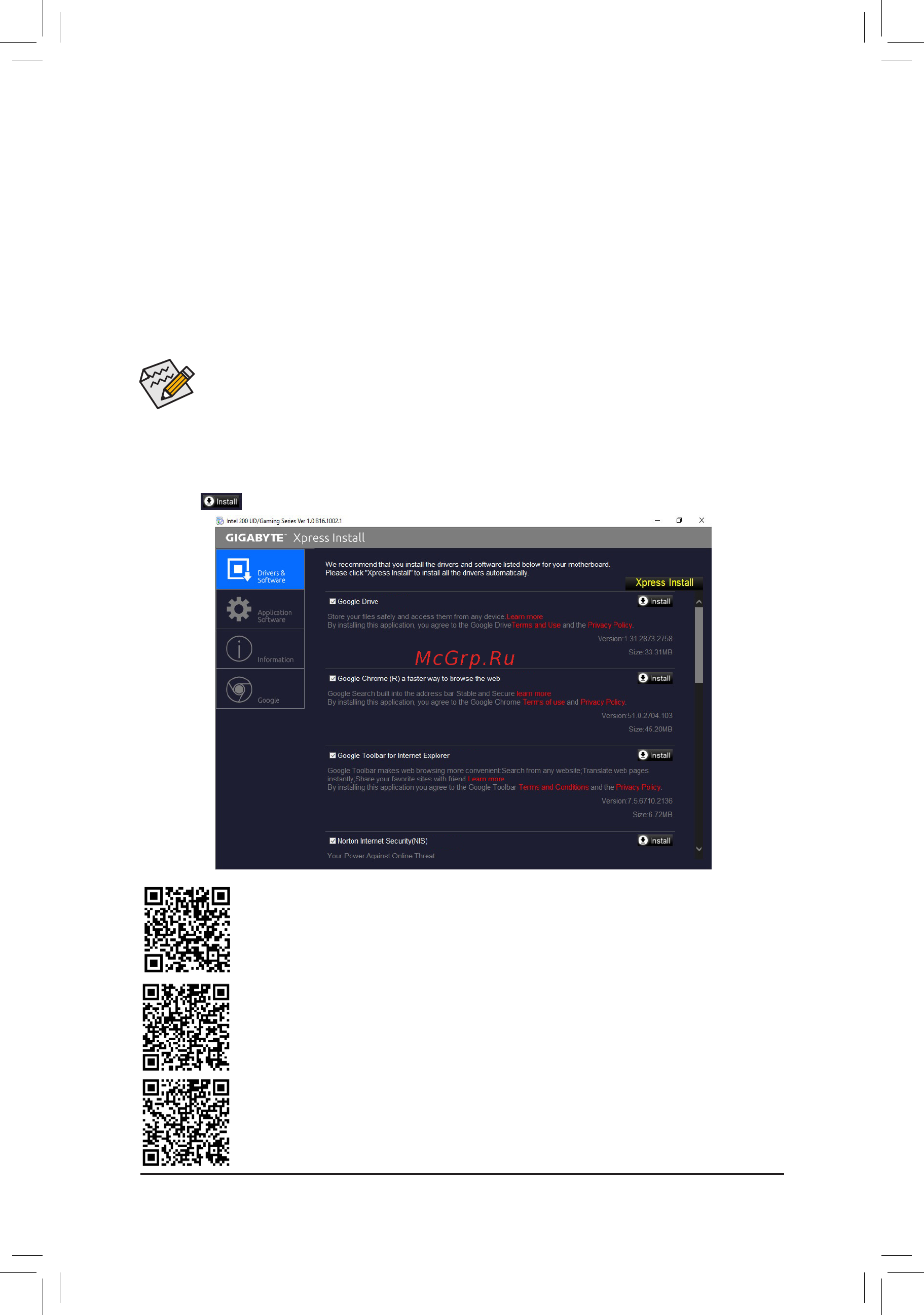

3-2 Drivers Installation
"Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to
install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click
the arrow icon to individually install the drivers you need.
- 39 -
