Gigabyte GA-Z170X-SOC Force [103/132] 2 9 3d osd

Unique Features

- 103 -

5-2-9 3D OSD

3S OSD

(Note)

automatically detects and displays your system information during games, allowing you to easily

get hold of your system information without switching between screens.

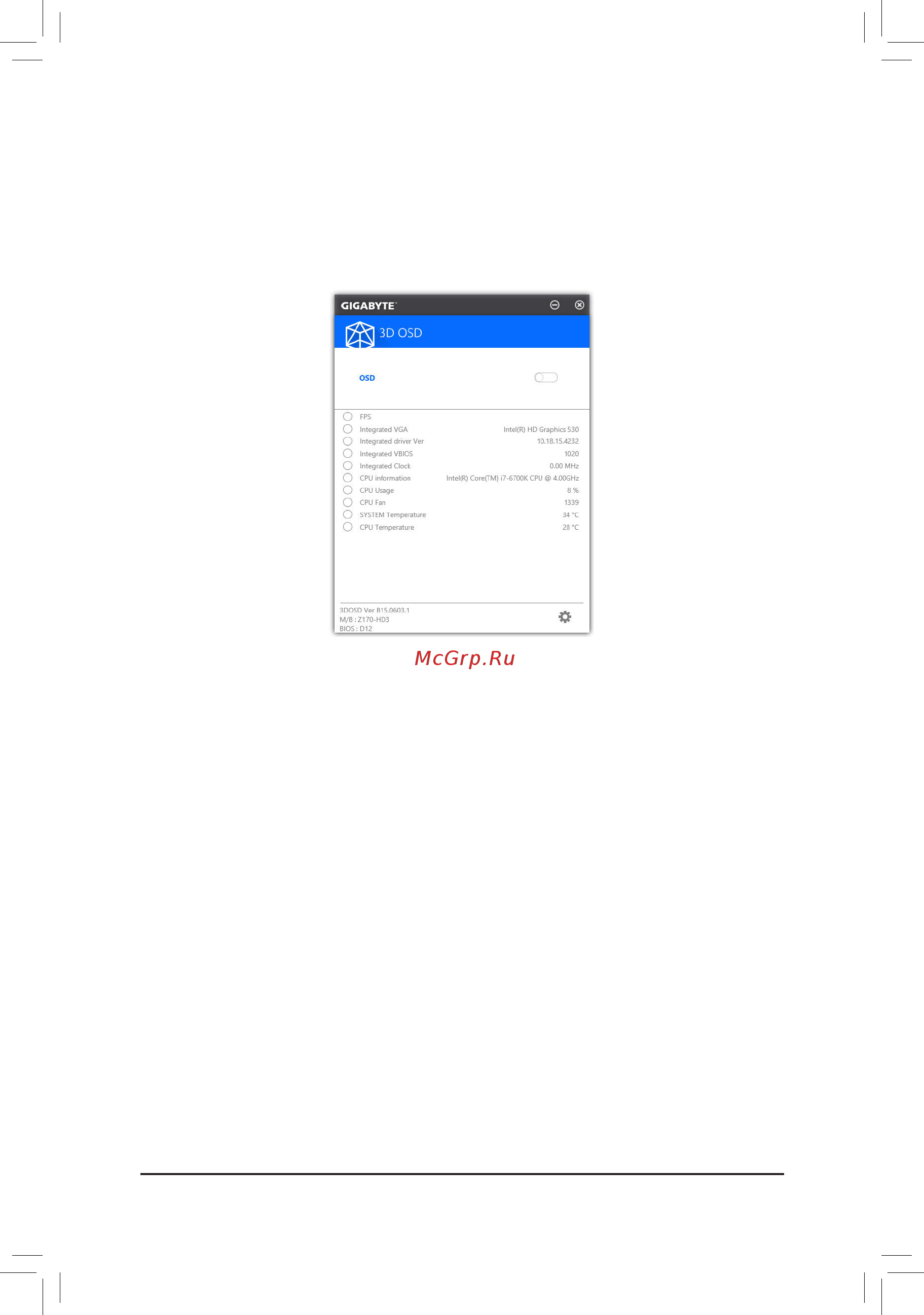

The 3D OSD Interface

Using 3D OSD

Main Menu:

Allows you to enable or disable the 3D OSD feature and to select the type of real-time system information you

wish to display. 3D OSD will detect and display a list of available options.

CongurationMenu:

Allows you to set a hotkey for enabling /disabling 3D OSD and specify the font size/location/color of the displayed

information.

(Note) Please ensure that DirectX End-User Runtime has been installed on your system prior to installing

3D OSD.
