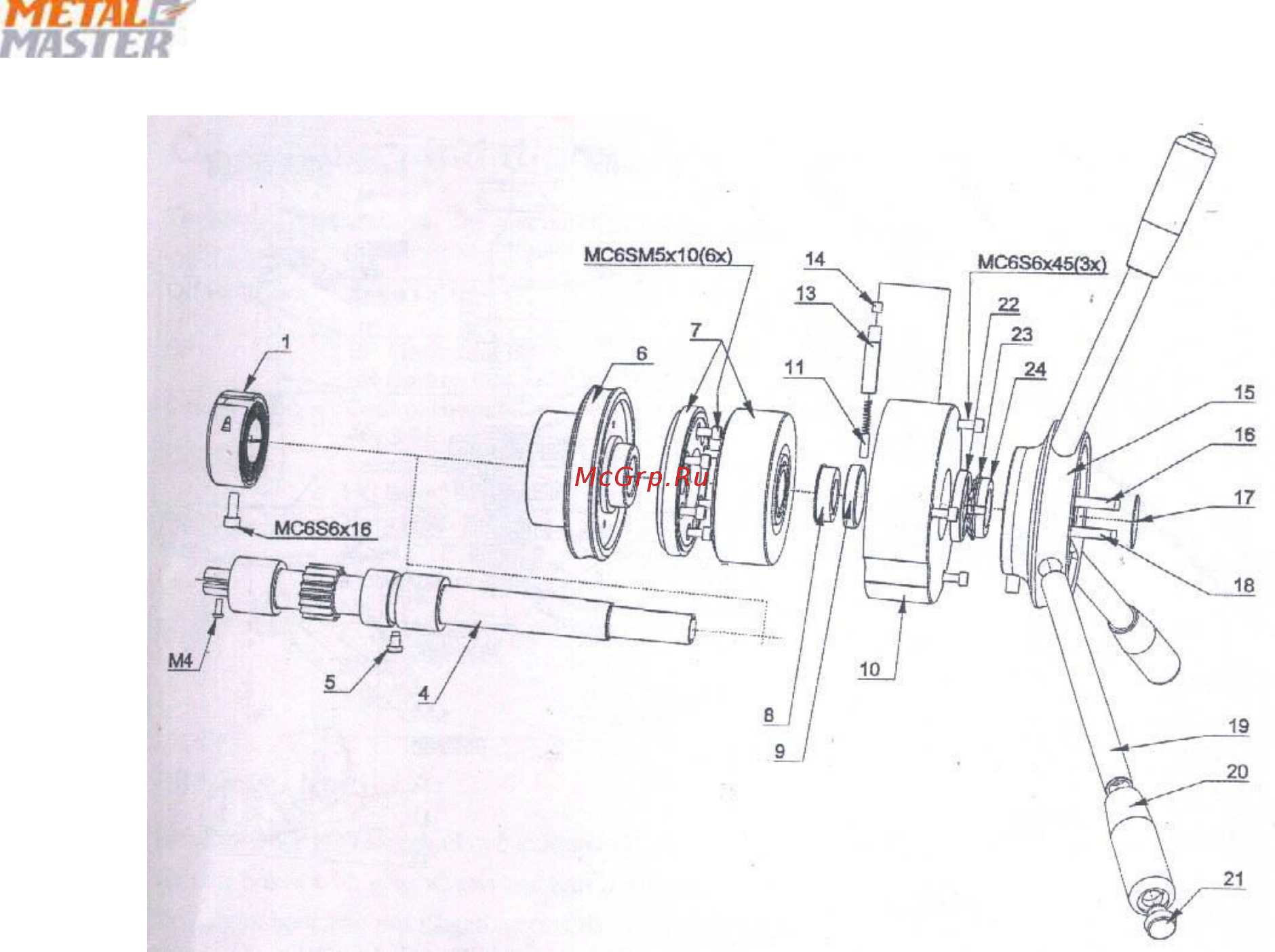

Pos Art. No. Description Note

1 4XS2150 Return spring casette

4 2108673 Feed shaft

5 4S04211 Guide screw

6 2108636 Worm wheel

7 3E20101 Magnetic clutch

8 2E08675 Ring isolation

9 2E08674 Ring

10 2N08676 Magnetic clutch cover

11 3E07003 Copper graphite brush

13 2E08662 Brush holder

14 3S35360 Screw polyamide 6x5

15 2T08662 Handle holder

16 3K01238 Key RK 6x6x40

17 4L02504 Cover plate

18 3K01303 Key 8x38

19 2E08668 Feed handle 3 st

20 3R04007 Handle 3 st

21 2X20037 Pushbutton 3 st

22 2D08677 Handle holder spacer

23 3B07005 Locking washer

24 3M06005 Nut KM 5
