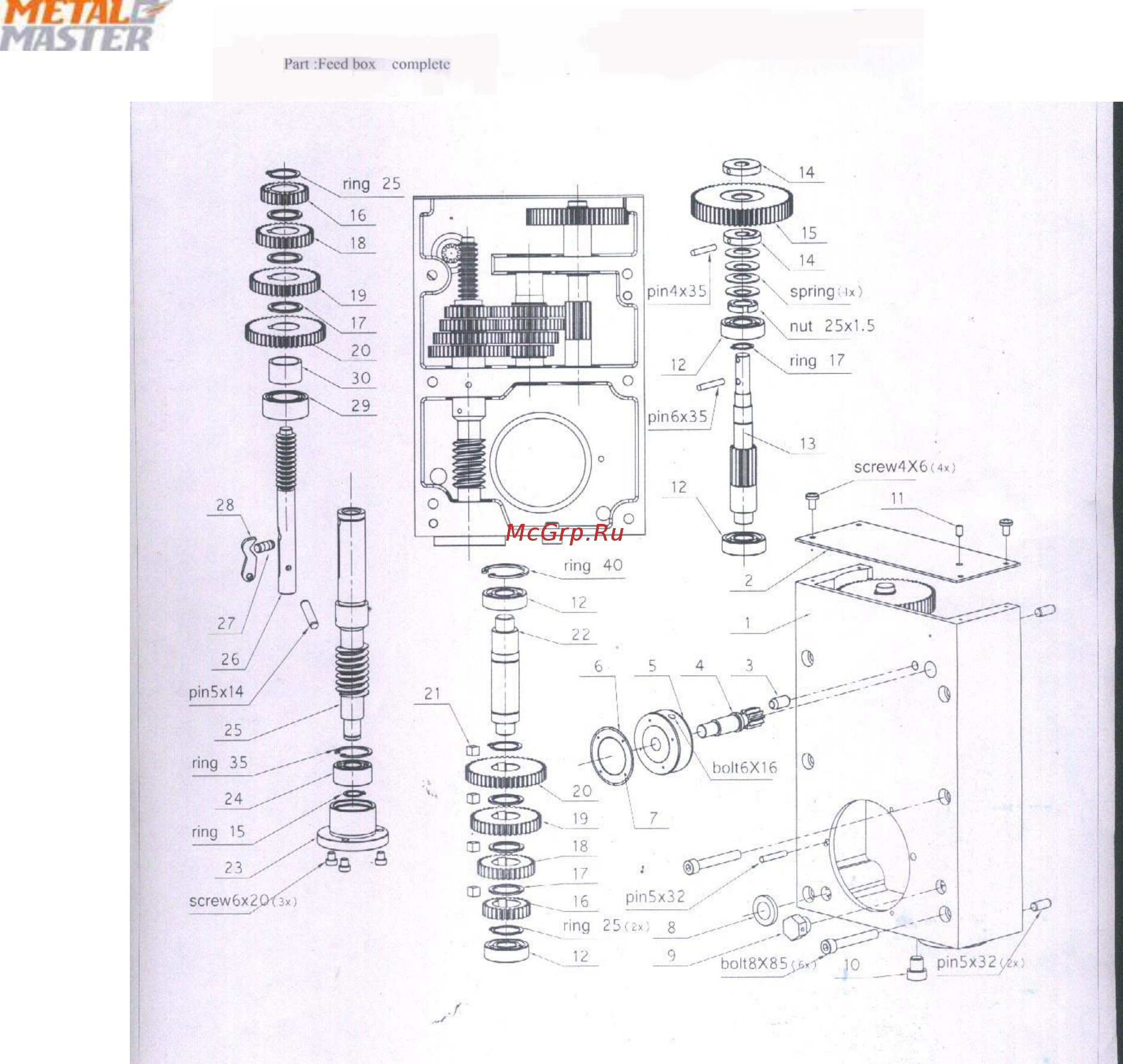

Pos Art. No. Description Note

1 T283001 Feed box

2 T282008 Feedbox cover

3 T283000-1 Screw 10x16

4 T283019 Change speed shaft

5 T283020 Change speed handle

6 T284008 Feed plate

7 T283000-2 Rivet 4 st

8 T283000-3 Oil view

9 BS230V3012 Fill oil screw

10 T283000-4 Empty oil screw G1/4

11 T283000-5 Oil cup

12 T283000-6 Bearing 4 st

13 T283010 Shaft

14 T353002 Sleeve

15 T353003 Gear wheel 60-1.5 2 st

16 T283003 Gear wheel 27-1.5 2 st

17 T283006 Washer 7 st

18 T283004 Gear wheel 33-1.5 2 st

19 T283005 Gear wheel 41-1.5 2 st

20 T283007 Gear wheel 47-1.5 2 st

21 T283000-7 Key 8x7 8 st

22 T283011 Shaft

23 T283021 Bottom sleeve
