4. FRONT AND REAR PANEL DESCRIPTION
4.1 Front panel
a STANDBY – indicator
b AUX input indicator
c DVD input indicator
d Stereo input indicator
e PRO. LOGIC switch input indicator
f Volume decrease indicator
g Volume increase indicator
h Standby key
i Input swith key
j STEREO/PRO. LOGIC switch key
k IR receive window
l Volume decrease key
m Volume increase key
4.2 Rear panel
a AUX input jack
b Front chanels input jacks
c Rear chanels input jacks
d Subwoofer chanel input jacks
e Central chanel input jack
f Right front output terminal
g Left front output terminal
h Center speaker output terminal
i Right rear output terminal
j Left rear output terminal
k Fuse socket
l Power switch
m Power cable
1 2
3
4 5 76
8 9 10 11 12 13

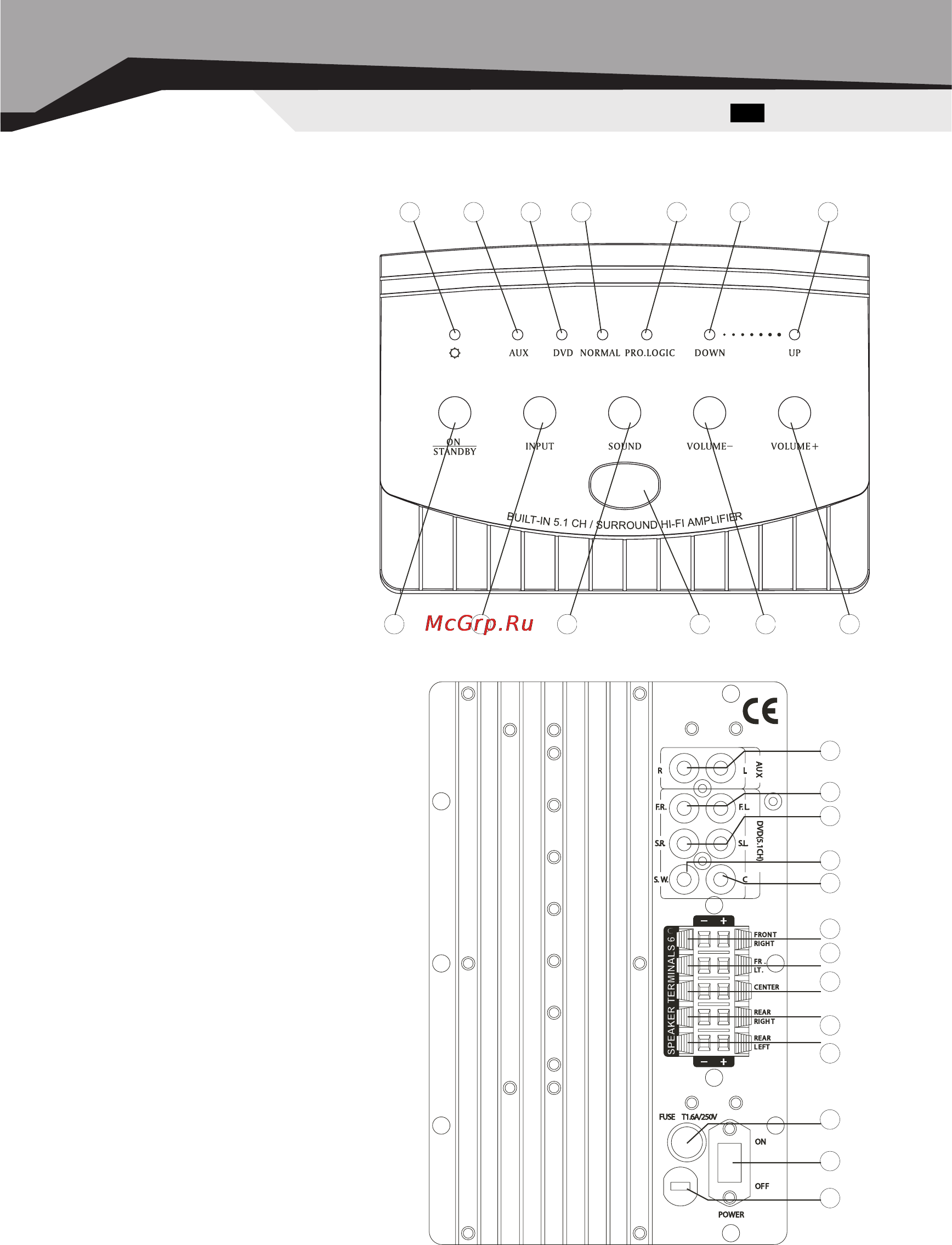

Fig. 1.
Fig. 2.
1
2
3
4
5
7
6
8
9
10
11
12
13
