Samsung UE42F5300 [14/195] Scart connection
![Samsung UE42F5300 [14/195] Scart connection](/views2/1023705/page14/bge.png)
6 7

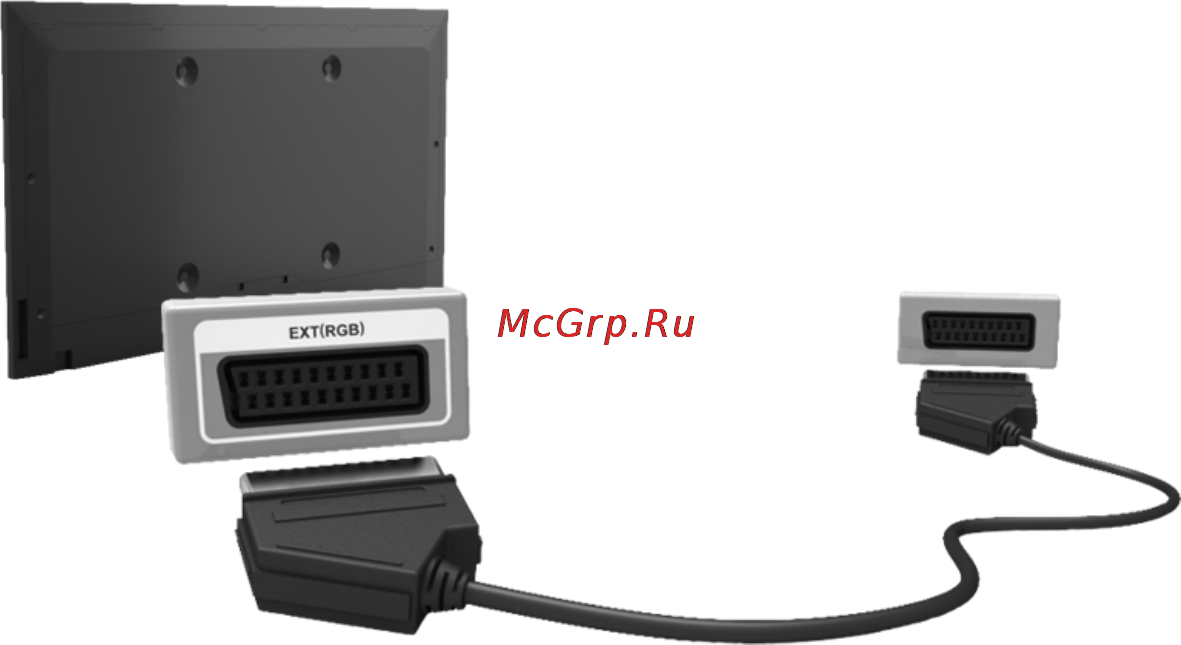

SCART Connection
Connect the TV’s SCART input connector to the device’s SCART output connector using a SCART
cable. An extra audio connection is not needed because SCART also carries audio.
"
SCART can only carry standard-definition video.
