www.timberk.com • electrical storage water heater

IMPORTANT!

Technical characteristics of the water heater you

purchased as of the date of manufacture correspond

to data, specified in the table. Technical characteristics

and scope of delivery can be revised without any prior

notice.

Capacity,

A B C D E F

RS1 seies

30 520 537 200 340 9 87

50 743 750 305 340 9 87

80 805 822 400 410 9 214

100 934 951 400 410 9 214

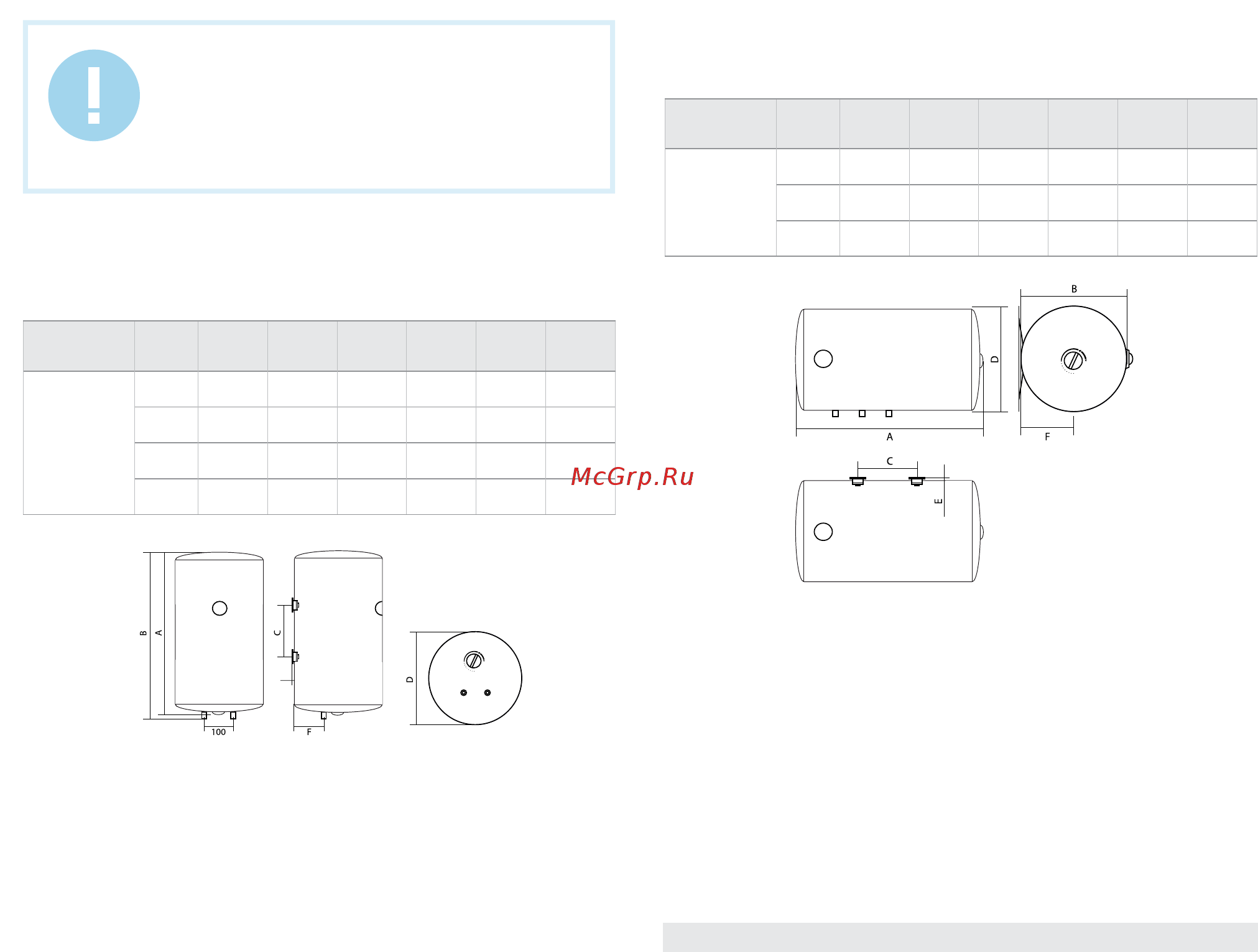

Dimensional features

Dimensional features of RS1 series water heater (in mm) according to Fig.1

are given below in Table 2.

Table 2

Capacity,

A B C D E F

RS2 seies

30 520 340 200 340 9 179

50 743 340 307 340 9 179

80 805 410 400 410 9 214

Dimensional features of RS2 series water heater (in mm) according to Fig.2

are given below in Table 3.

Table 3

Fig. 2

Fig. 1
