5. WATER HEATER DESCRIPTION

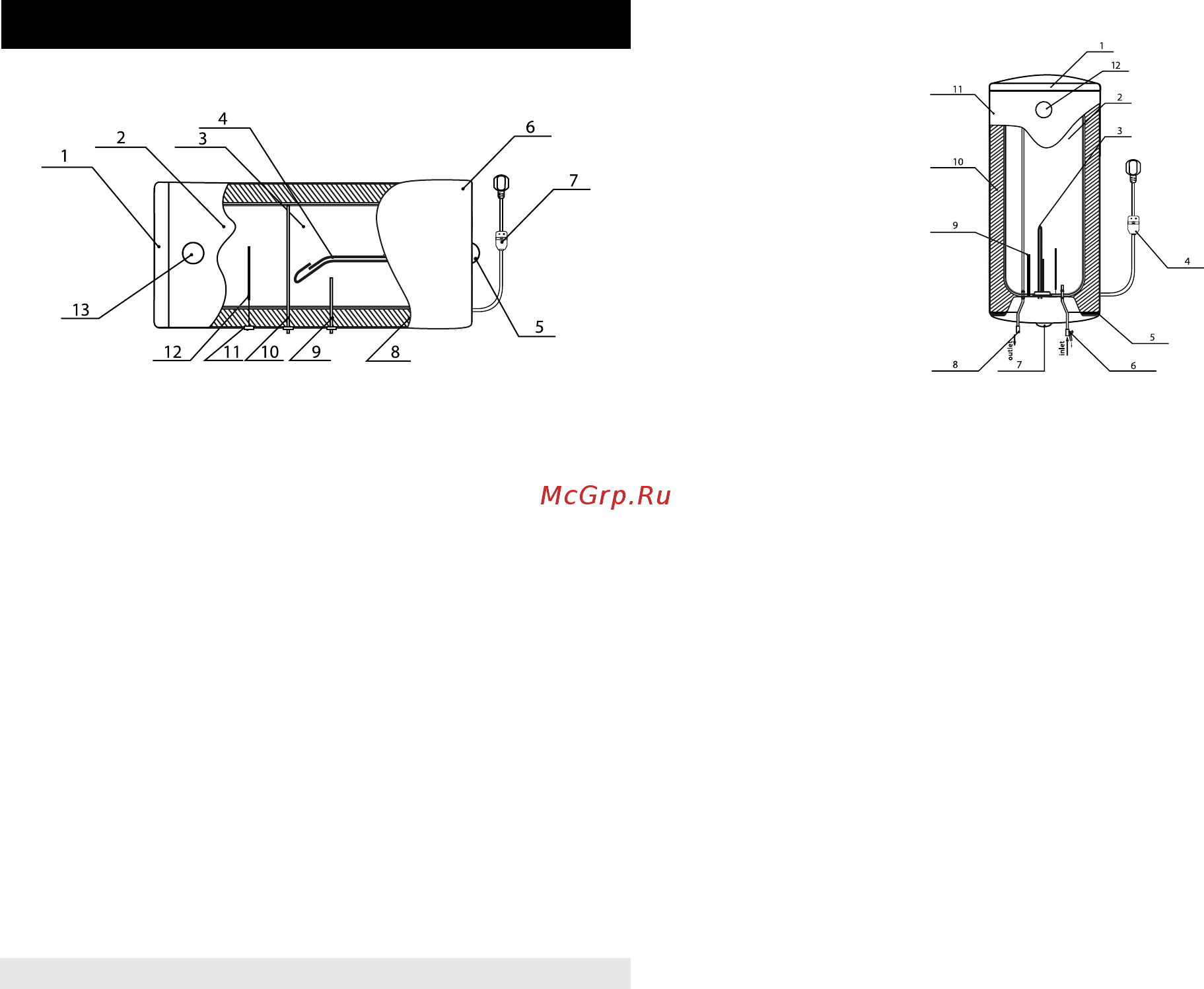

RS2 series (Fig. 3)

Fig. 3

1 – left metal protective cover

2 – external metal casing

3 – inner tank

4 – heating element

5 – control panel

6 – right metal protective cover

7 – power cable with GFCI

8 – urethane foam heat insulation layer

9 – inlet nozzle

10 – hot water outlet nozzle

11 – emergency water discharge nozzle

12 – protective magnesium anode

13 – thermometer

RS1 series (Fig. 4)

Fig. 4

1 – upper protective cover

2 – inner tank

3 – heating element

4 – power cable with GFCI

5 – lower protective cover

6 – inlet nozzle

7 – control panel

8 – hot water outlet nozzle

9 – protective magnesium anode

10 – urethane foam heat insulation layer

11 – external metal cosing

12 – thermometer (only for RS1 series)
