www.timberk.com • electrical storage water heater

7. WATER HEATER INSTALLATION

1.Power cord with a plug

2.Magnesium anode – water discharge nozzle

3.Water outlet

4.Hot water supply adjustment tap*

5.Mixer*

6.Shower header*

7.Cold water supply adjustment tap*

8.Pressure relieving opening

9.Check relief valve

10.Water inlet

11.Water heater

12.Water main shut-off valve*

13.Water main

14.T-bend*

*Does not included in the scope of delivery

Location

1. Electric water heater should be mounted on a firm wall.

2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.

3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.

Water heater mounting methods

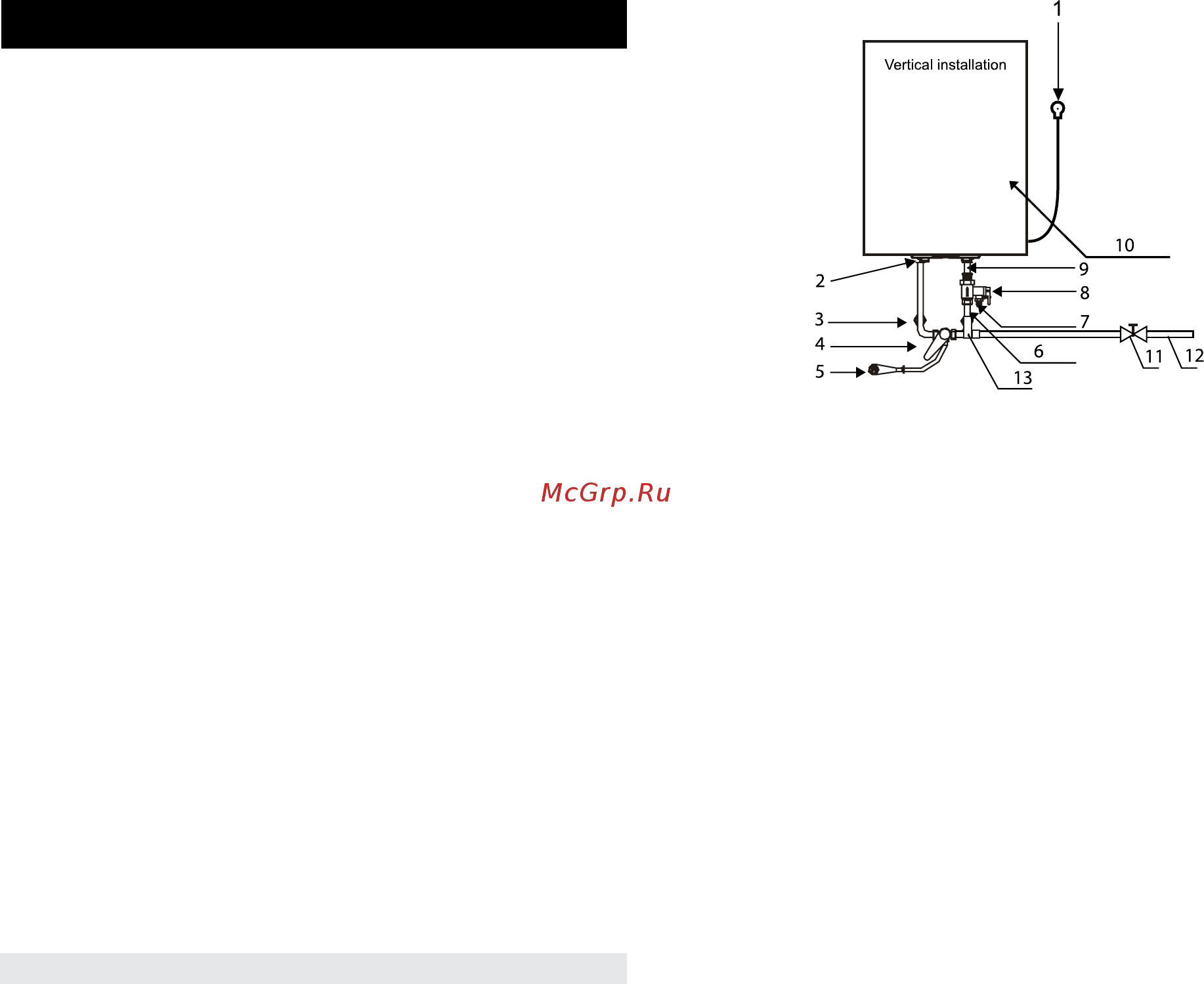

Fig. 5 shows the way to mount the water heater for one consumption point.

Fig. 5
