Water heater mounting methods

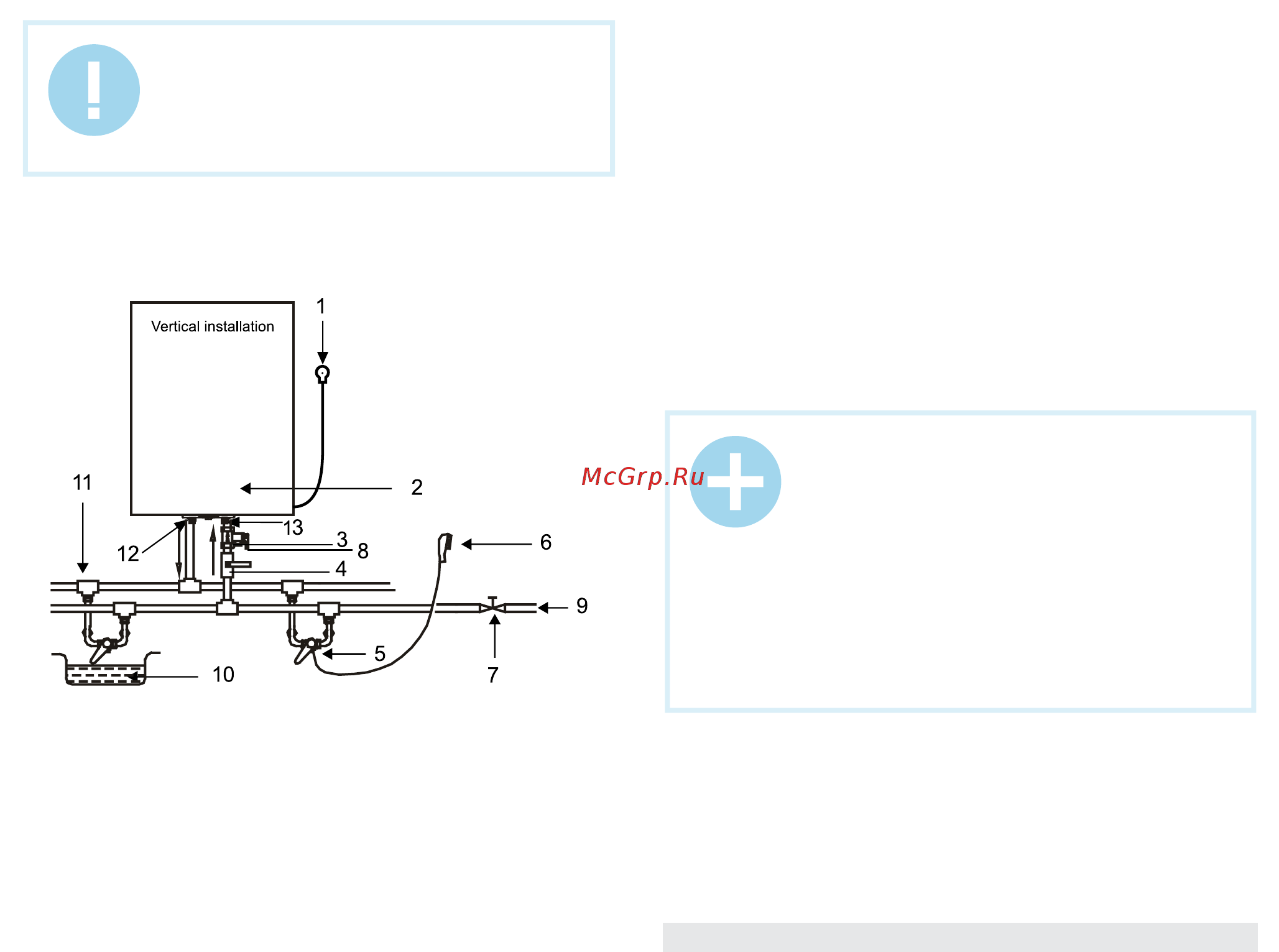

Fig. 6 shows the way to mount the water heater for several consumption

points.

Water heater mounting

1.Power cord with a plug

2.Water heater

3.Check relief valve

4.Cold water supply valve*

5.Mixer*

Fig. 6

IMPORTANT!

You can use the same way of installation for RE9. But,

please, note that pipe of cold water (9) is on the left

position. Pipe of hot water (2) is on the right.

NOTE:

Please, use accessories, provided by the manufacturer,

to install the water heater. Electric water heater must

not be mounted on a wall prior you make sure that the

bracket is installed firmly and securely. Otherwise the

electric water heater may fall down from the wall, which

may cause its damage and even serious accidents

involving bodily injury. When determining points for

bolt holes, it is necessary to provision some spare

space between the lower part of the water heater and

the floor not less than 0.6 m, to make it convenient to

perform maintenance if necessary.

6.Shower header*

7.Water main shut-off valve*

8.Pressure relieving opening

9.Water main

10.Bath tub*

11.T-bend*

12.Water outlet

13.Water inlet
