Содержание

• Timberk 1
• Tirhp1 1500 tirhp1 1800 1
• Руководство по эксплуатации instruction manual 1
• English 3
• Illlllllllllllllllllllllllllllllllllllllllllllllllllllllll 3
• Delivery set 1 infrared heater 1 pcs 2 fasteners kit 1 pcs 3 operation manual 1 pcs 4 warranty certificate 1 pcs 5 package 1 pcs 4
• Expand the original packaging and carefully remove the heater 2 remove the mounting kit 3 collect the installation wall mount holes as shown in fig 2 4 connect the hardware to the instructions shown in fig 3 4 5 5 hang the heater on the smooth surface of the wall with the observance of the distance specified in item 6 make sure that the mounting screws firmly fastened 6 if necessary install the heater bracket follow the instructions shown on fig 6 7 8 9 and specified in item 6 4
• Infrared heater description 1 heater body 2 protective grille 3 heating element 4 cover 5 power cord and plug 4
• Infrared heater description fig 1 4
• Installation 4
• Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the electrical installation regulations and power system safety standards 4
• Q warning 4
• Technical specifications 4
• Technical specifications of thetir hp1 infrared heater are given intable 1 4
• The changes in the set list may result in changing of the weight and dimensions of the device but not more than by 5 20 depending on the product category 4
• The manufacturer reserves the right to change the set list of the device including liquid and powder components for different supplies without prior notice the changes either in no way influence the basic technical parameters of the device or may improve them and also not violate the legislation or quality standards of the countries of manufacture transit and selling 4
• To improve the product quality the design and technical specifications of the infrared heater as well as its delivery set can be modified by the manufacturer without preliminary notification 4
• Depending on material and design of ceiling structural elements the heater is secured onto appropriate fasteners chosen on basis of the strength condition strength of the ceiling or structural elements to which the heater is secured should be sufficient to endure 5 fold weight of the heater 5
• Ft note 5
• Installation of the heater using the wall fasteners the installation of wall fasteners shown in table 2 5
• On fig 2 3 4 5 shows stepwise instructions on assembly and installation of wall fasteners for infrared heater 5
• Safe distances required for installation 1 never install the unit on the surface of plastic nylon cardboard and other 2 after installing the unit the distance from the floor should not be less than 1 meters 3 distance from a wall to a device must be at least of 0 5 meters 4 the distance from the device to a ceiling should be no less than 0 meters 5 the distance from the protective grille device to easily flammable cloth paper plastic and other and combustible materials must be at least 1 2 meters 6 the distance from the device to find the man should be not less than 1 meter 5
• Installing the infrared heater on a portable rack the installation of hardware rack is provided in table 3 6
• On fig 6 7 8 9 shows stepwise instructions on assembly and installation of infrared heater on the mobile rack 6
• English 7
• Disposal 9
• English 9
• If you are not able to remedy a malfunction according to the recommendations or other malfunctions occur contact the authorized service center of timberk 9
• Lllllllllllllllllllll 9
• Possible malfunctions and remedies for them are given in table 4 9
• The warranty on the device see in the warranty certificate 9
• Troubleshooting 9
• Upon completion of the service life the infrared heater should be disposed according to the effective local regulations rules and methods for more details on disposal of the infrared heater please contact a representative of the local authority 9
• Warranty 9
• Wiring schematic diagram 9
• Русский 11
• Illlllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 12
• Включая заливаемые засыпаемые составляющие не влияя при этом на основные технические параметры изделия или улуч шая их а также не нарушая изменениями принятые на территории страны производства u0442ранзита 12
• Для улучшения качества продукции конструкция и технические характеристики инфракрасного обогревателя а также его комплектация могут быть изменены производителем без предварительного уведомления 12
• Комплект поставки 1 инфракрасный обогреватель 1 шт 2 крепежный комплект 1 шт 3 руководство по эксплуатации 1 шт 4 гарантийныйталон 1 шт 5 упаковка 1 шт 12
• Корпус обогревателя 2 защитная решетка 3 нагревательный элемент 4 крышка 5 сетевой шнур 12
• Описание инфракрасного обогревателя рис з 12
• Площадь обогрева в таблице указана ориентировочно т к площадь обогрева зависит не только от мощности обогревателя но и от типа помещения высоты потолка материала стен потолков количества и площади остекления наличия дверей и др 12
• Примечание 12
• Производитель оставляет за собой право для разных партий поставок без предварительного уведомления изменять комплектующие части изделия 12
• Реализации стандарты качества и нормы законодательства это может повлечь за собой изменение веса и габаритов изделия но не более чем на 5 20 могут отличаться для разного вида изделий 12
• Технические характеристики 12
• Технические характеристики инфракрасного обогревателя серии tir нр1 приведены в таблице 1 12
• Русский 13
• Lllllllllllllllllllll 15
• На рисунках 6 7 8 9 показана поэтапная инструкция по сборке и установке инфракрасного обогревателя на переносную стойку 15
• Русский 15
• Установка инфракрасного обогревателя на переносную стойку комплект установочного крепежа на стойку приведен в таблице 3 15
• Русский 17
• Lllllllllllllllllllll 19
• Русский 19
• И дк 20
• Официальным языком международной организации содружество независимых государств снг является русский язык 20
• Ьтьегк 23
• Timberk 24

Похожие устройства

• Timberk tor 21.2009 dpx Инструкция по эксплуатации
• Timberk tor 21.1507 dpx Инструкция по эксплуатации
• Timberk thu ul 03 p Инструкция по эксплуатации
• Timberk thu ul 03 gn Инструкция по эксплуатации
• Timberk thu ul 09 bu Инструкция по эксплуатации
• Timberk thu ul 09 bl Инструкция по эксплуатации
• Timberk thu ul 07 bl Инструкция по эксплуатации
• Timberk tap fl 500 mf w Инструкция по эксплуатации
• Timberk tap fl 500 mf bl Инструкция по эксплуатации
• Timberk tor 21.2009 hbx i Инструкция по эксплуатации
• Timberk tor 21.1507 hbx i Инструкция по эксплуатации
• Timberk tor 21.1206 hbx i Инструкция по эксплуатации
• Timberk tor 21.2212 slx i Инструкция по эксплуатации
• Timberk tor 21.1809 slx i Инструкция по эксплуатации
• Timberk tor 21.1507 slx i Инструкция по эксплуатации
• Timberk tor 21.1006 slx i Инструкция по эксплуатации
• Timberk tor 31.3012 ehx i Инструкция по эксплуатации
• Timberk tor 31.2509 ehx i Инструкция по эксплуатации
• Timberk tor 31.1706 ehx i Инструкция по эксплуатации
• Timberk tor 21.2512 btx i Инструкция по эксплуатации

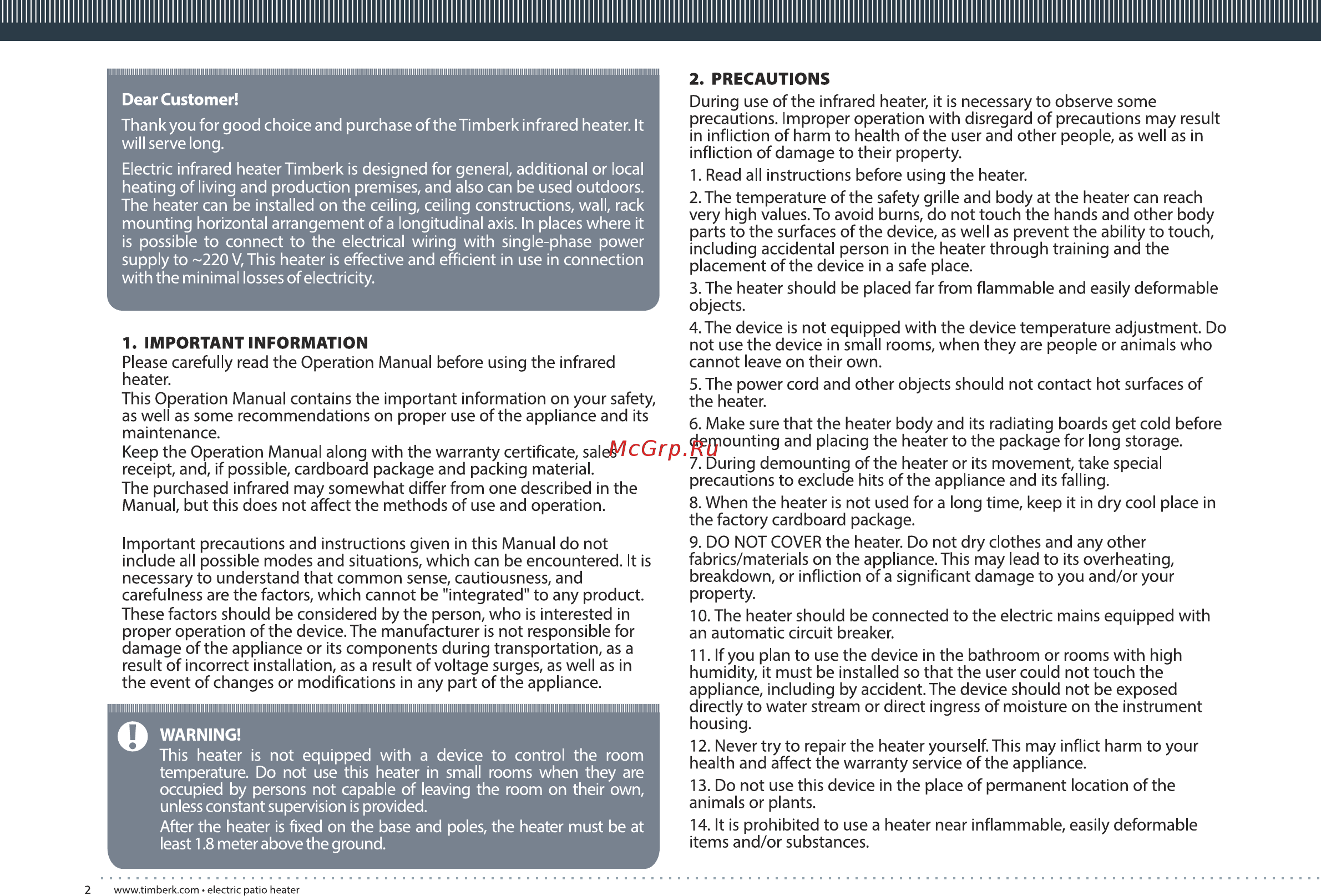

2 PRECAUTIONS During use of the infrared heater it is necessary to observe some precautions Improper operation with disregard of precautions may result Thank you for good choice and purchase of theTimberk infrared heater It in infliction of harm to health of the user and other people as well as in will serve long infliction of damage to their property Electric infrared heater Timberk is designed for general additional or local 1 Read all instructions before using the heater heating of living and production premises and also can be used outdoors 2 The temperature of the safety grille and body at the heater can reach The heater can be installed on the ceiling ceiling constructions wall rack very high values To avoid burns do not touch the hands and other body mounting horizontal arrangement of a longitudinal axis In places where it parts to the surfaces of the device as well as prevent the ability to touch is possible to connect to the electrical wiring with single phase power including accidental person in the heater through training and the supply to 220 V This heater is effective and efficient in use in connection placement of the device in a safe place with the minimal losses of electricity 3 The heater should be placed far from flammable and easily deformable objects 4 The device is not equipped with the device temperature adjustment Do 1 IMPORTANT INFORMATION not use the device in small rooms when they are people or animals who cannot leave on their own Please carefully read the Operation Manual before using the infrared heater 5 The power cord and other objects should not contact hot surfaces of This Operation Manual contains the important information on your safety the heater as well as some recommendations on proper use of the appliance and its 6 Make sure that the heater body and its radiating boards get cold before maintenance demounting and placing the heater to the package for long storage Keep the Operation Manual along with the warranty certificate sales 7 During demounting of the heater or its movement take special receipt and if possible cardboard package and packing material precautions to exclude hits of the appliance and its falling The purchased infrared may somewhat differ from one described in the 8 When the heater is not used for a long time keep it in dry cool place in Manual but this does not affect the methods of use and operation the factory cardboard package 9 DO NOT COVER the heater Do not dry clothes and any other Important precautions and instructions given in this Manual do not fabrics materials on the appliance This may lead to its overheating include all possible modes and situations which can be encountered It is breakdown or infliction of a significant damage to you and or your necessary to understand that common sense cautiousness and property carefulness are the factors which cannot be integrated to any product These factors should be considered by the person who is interested in 10 The heater should be connected to the electric mains equipped with proper operation of the device The manufacturer is not responsible for an automatic circuit breaker damage of the appliance or its components during transportation as a 11 If you plan to use the device in the bathroom or rooms with high result of incorrect installation as a result of voltage surges as well as in humidity it must be installed so that the user could not touch the the event of changes or modifications in any part of the appliance appliance including by accident The device should not be exposed directly to water stream or direct ingress of moisture on the instrument II llllllllllllllllllllll llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllll housing Q WARNING 12 Never try to repair the heater yourself This may inflict harm to your This heater is not equipped with a device to control the room health and affect the warranty service of the appliance temperature Do not use this heater in small rooms when they are 13 Do not use this device in the place of permanent location of the occupied by persons not capable of leaving the room on their own animals or plants unless constant supervision is provided 14 It is prohibited to use a heater near inflammable easily deformable After the heater is fixed on the base and poles the heater must be at items and or substances least 1 8 meter above the ground Dear Customer 2 www timberk com electric patio heater
