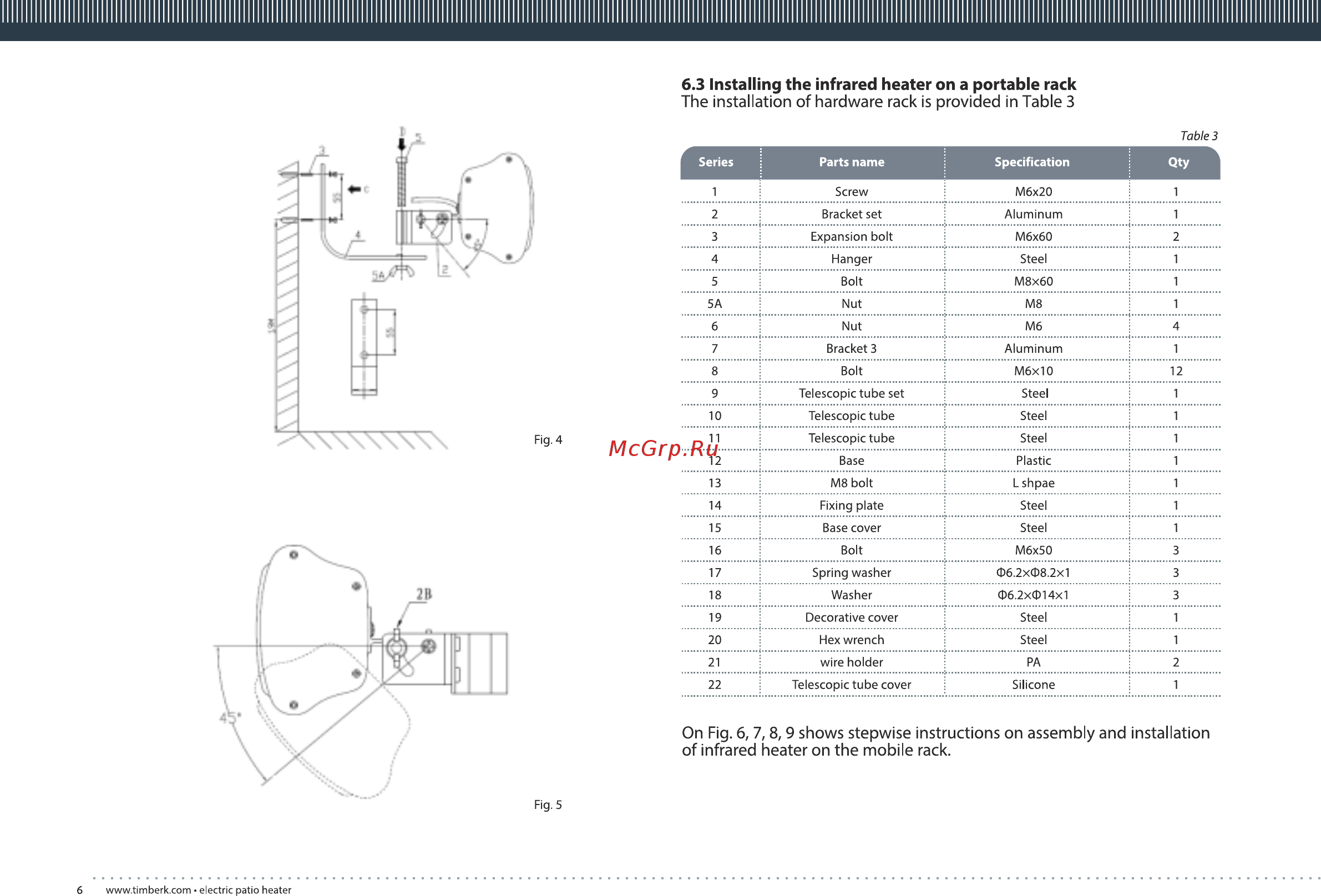

6 3 Installing the infrared heater on a portable rack The installation of hardware rack is provided in Table 3 Table 3 Series Parts name Specification Qty 1 Screw M6x20 1 2 Bracket set Aluminum 1 3 Expansion bolt МбхбО 2 4 Hanger Steel 1 5 Bolt M8x60 1 5A Nut M8 1 6 Nut Мб 7 Brackets Aluminum 1 8 Bolt M6x10 12 9 Telescopic tube set Steel 1 10 Telescopic tube Steel 1 11 Telescopic tube Steel 1 12 Base Plastic 1 13 M8 bolt Lshpae 1 14 Fixing plate Steel 1 15 Base cover Steel 1 16 Bolt M6x50 3 17 Spring washer Ф6 2ХФ8 2Х1 3 18 Washer 19 Decorative cover Steel 1 1 Фб 2хФ14х1 4 3 20 Hex wrench Steel 21 wire holder PA 2 22 Telescopic tube cover Silicone 1 On Fig 6 7 8 9 shows stepwise instructions on assembly and installation of infrared heater on the mobile rack Fig 5 6 www timberk com electric patio heater
