Содержание

• Timberk 1
• Tirhp1 1500 tirhp1 1800 1
• Руководство по эксплуатации instruction manual 1
• English 3
• Illlllllllllllllllllllllllllllllllllllllllllllllllllllllll 3
• Delivery set 1 infrared heater 1 pcs 2 fasteners kit 1 pcs 3 operation manual 1 pcs 4 warranty certificate 1 pcs 5 package 1 pcs 4
• Expand the original packaging and carefully remove the heater 2 remove the mounting kit 3 collect the installation wall mount holes as shown in fig 2 4 connect the hardware to the instructions shown in fig 3 4 5 5 hang the heater on the smooth surface of the wall with the observance of the distance specified in item 6 make sure that the mounting screws firmly fastened 6 if necessary install the heater bracket follow the instructions shown on fig 6 7 8 9 and specified in item 6 4
• Infrared heater description 1 heater body 2 protective grille 3 heating element 4 cover 5 power cord and plug 4
• Infrared heater description fig 1 4
• Installation 4
• Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the electrical installation regulations and power system safety standards 4
• Q warning 4
• Technical specifications 4
• Technical specifications of thetir hp1 infrared heater are given intable 1 4
• The changes in the set list may result in changing of the weight and dimensions of the device but not more than by 5 20 depending on the product category 4
• The manufacturer reserves the right to change the set list of the device including liquid and powder components for different supplies without prior notice the changes either in no way influence the basic technical parameters of the device or may improve them and also not violate the legislation or quality standards of the countries of manufacture transit and selling 4
• To improve the product quality the design and technical specifications of the infrared heater as well as its delivery set can be modified by the manufacturer without preliminary notification 4
• Depending on material and design of ceiling structural elements the heater is secured onto appropriate fasteners chosen on basis of the strength condition strength of the ceiling or structural elements to which the heater is secured should be sufficient to endure 5 fold weight of the heater 5
• Ft note 5
• Installation of the heater using the wall fasteners the installation of wall fasteners shown in table 2 5
• On fig 2 3 4 5 shows stepwise instructions on assembly and installation of wall fasteners for infrared heater 5
• Safe distances required for installation 1 never install the unit on the surface of plastic nylon cardboard and other 2 after installing the unit the distance from the floor should not be less than 1 meters 3 distance from a wall to a device must be at least of 0 5 meters 4 the distance from the device to a ceiling should be no less than 0 meters 5 the distance from the protective grille device to easily flammable cloth paper plastic and other and combustible materials must be at least 1 2 meters 6 the distance from the device to find the man should be not less than 1 meter 5
• Installing the infrared heater on a portable rack the installation of hardware rack is provided in table 3 6
• On fig 6 7 8 9 shows stepwise instructions on assembly and installation of infrared heater on the mobile rack 6
• English 7
• Disposal 9
• English 9
• If you are not able to remedy a malfunction according to the recommendations or other malfunctions occur contact the authorized service center of timberk 9
• Lllllllllllllllllllll 9
• Possible malfunctions and remedies for them are given in table 4 9
• The warranty on the device see in the warranty certificate 9
• Troubleshooting 9
• Upon completion of the service life the infrared heater should be disposed according to the effective local regulations rules and methods for more details on disposal of the infrared heater please contact a representative of the local authority 9
• Warranty 9
• Wiring schematic diagram 9
• Русский 11
• Illlllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 12
• Включая заливаемые засыпаемые составляющие не влияя при этом на основные технические параметры изделия или улуч шая их а также не нарушая изменениями принятые на территории страны производства u0442ранзита 12
• Для улучшения качества продукции конструкция и технические характеристики инфракрасного обогревателя а также его комплектация могут быть изменены производителем без предварительного уведомления 12
• Комплект поставки 1 инфракрасный обогреватель 1 шт 2 крепежный комплект 1 шт 3 руководство по эксплуатации 1 шт 4 гарантийныйталон 1 шт 5 упаковка 1 шт 12
• Корпус обогревателя 2 защитная решетка 3 нагревательный элемент 4 крышка 5 сетевой шнур 12
• Описание инфракрасного обогревателя рис з 12
• Площадь обогрева в таблице указана ориентировочно т к площадь обогрева зависит не только от мощности обогревателя но и от типа помещения высоты потолка материала стен потолков количества и площади остекления наличия дверей и др 12
• Примечание 12
• Производитель оставляет за собой право для разных партий поставок без предварительного уведомления изменять комплектующие части изделия 12
• Реализации стандарты качества и нормы законодательства это может повлечь за собой изменение веса и габаритов изделия но не более чем на 5 20 могут отличаться для разного вида изделий 12
• Технические характеристики 12
• Технические характеристики инфракрасного обогревателя серии tir нр1 приведены в таблице 1 12
• Русский 13
• Lllllllllllllllllllll 15
• На рисунках 6 7 8 9 показана поэтапная инструкция по сборке и установке инфракрасного обогревателя на переносную стойку 15
• Русский 15
• Установка инфракрасного обогревателя на переносную стойку комплект установочного крепежа на стойку приведен в таблице 3 15
• Русский 17
• Lllllllllllllllllllll 19
• Русский 19
• И дк 20
• Официальным языком международной организации содружество независимых государств снг является русский язык 20
• Ьтьегк 23
• Timberk 24

Похожие устройства

• Timberk tor 21.2009 dpx Инструкция по эксплуатации
• Timberk tor 21.1507 dpx Инструкция по эксплуатации
• Timberk thu ul 03 p Инструкция по эксплуатации
• Timberk thu ul 03 gn Инструкция по эксплуатации
• Timberk thu ul 09 bu Инструкция по эксплуатации
• Timberk thu ul 09 bl Инструкция по эксплуатации
• Timberk thu ul 07 bl Инструкция по эксплуатации
• Timberk tap fl 500 mf w Инструкция по эксплуатации
• Timberk tap fl 500 mf bl Инструкция по эксплуатации
• Timberk tor 21.2009 hbx i Инструкция по эксплуатации
• Timberk tor 21.1507 hbx i Инструкция по эксплуатации
• Timberk tor 21.1206 hbx i Инструкция по эксплуатации
• Timberk tor 21.2212 slx i Инструкция по эксплуатации
• Timberk tor 21.1809 slx i Инструкция по эксплуатации
• Timberk tor 21.1507 slx i Инструкция по эксплуатации
• Timberk tor 21.1006 slx i Инструкция по эксплуатации
• Timberk tor 31.3012 ehx i Инструкция по эксплуатации
• Timberk tor 31.2509 ehx i Инструкция по эксплуатации
• Timberk tor 31.1706 ehx i Инструкция по эксплуатации
• Timberk tor 21.2512 btx i Инструкция по эксплуатации

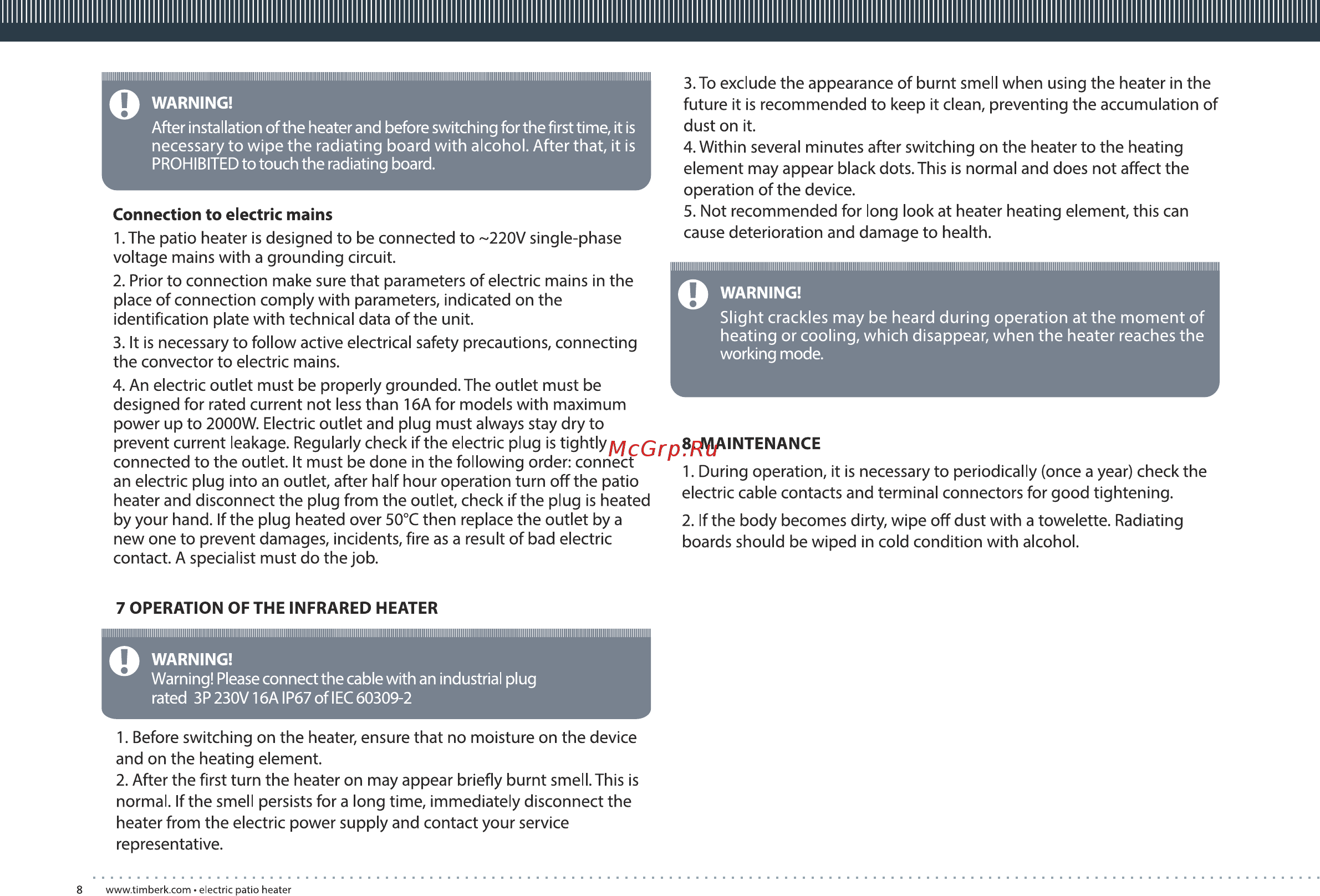

Il II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllll Q WARNING After installation ofthe heater and before switching for the first time it is necessary to wipe the radiating board with alcohol After that it is PROHIBITED to touch the radiating board Connection to electric mains l The patio heater is designed to be connected to 220V single phase voltage mains with a grounding circuit 2 Prior to connection make sure that parameters of electric mains in the place of connection comply with parameters indicated on the identification plate with technical data ofthe unit 3 It is necessary to follow active electrical safety precautions connecting the convector to electric mains 4 An electric outlet must be properly grounded The outlet must be designed for rated current not less than 16A for models with maximum power up to 2000W Electric outlet and plug must always stay dry to prevent current leakage Regularly check if the electric plug is tightly connected to the outlet It must be done in the following order connect an electric plug into an outlet after half hour operation turn off the patio heater and disconnect the plug from the outlet check if the plug is heated by your hand If the plug heated over 50 C then replace the outlet by a new one to prevent damages incidents fire as a result of bad electric contact A specialist must do the job 7 OPERATION OF THE INFRARED HEATER O WARNING Warning Please connect the cable with an industrial plug rated 3P230V16A IP67of I EC 60309 2 1 Before switching on the heater ensure that no moisture on the device and on the heating element 2 After the first turn the heater on may appear briefly burnt smell This is normal If the smell persists for a long time immediately disconnect the heater from the electric power supply and contact your service representative 8 www timberk com electric patio heater 3 To exclude the appearance of burnt smell when using the heater in the future it is recommended to keep it clean preventing the accumulation of dust on it 4 Within several minutes after switching on the heater to the heating element may appear black dots This is normal and does not affect the operation ofthe device 5 Not recommended for long look at heater heating element this can cause deterioration and damage to health num II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiinii II iiiiiiiiiiiiiiin Q WARNING Slight crackles may be heard during operation at the moment of heating or cooling which disappear when the heater reaches the working mode 8 MAINTENANCE 1 During operation it is necessary to periodically once a year check the electric cable contacts and terminal connectors for good tightening 2 If the body becomes dirty wipe off dust with a towelette Radiating boards should be wiped in cold condition with alcohol
