Содержание
- Electric convector heater 1
- Timberk 1
- Руководство по эксплуатации instruction manual 1
- Электрический конвектор 1
- Current a 3
- Data from this table can be a little different with real figures means weight and device dimensions 3
- Device 3
- Dimensions 3
- English 3
- For a detailed description of technical parameters and characteristics go to www timberk com orcontacttimberk official dealers 3
- Identification 3
- Key features 1 combination of a convection effect hence the name convector with mild thermal radiation makes the heater an economical thermal energy source significantly increasing the number of its followers year by year 2 simple and efficient ways to control a temperature mode 3 a high precision controlled thermostat 4 fast self repayment due to a high performance factor and speed of reaching the set temperature 5 ease of installation operating reliability and ease of maintenance 6 an opportunity to select between power modes for energy saving 7 a built in air ionizer 8 support legsforthe convector to be installed in any convenient place 9 a built in carrying handle 10 a built in fall sensor will switch off the convector if it is turned away from a vertical position for example if it is accidentally tipped over when operated on legs 11 additionally it is possible to purchase and install a set of a humidifier and a heated towel rail 12 author sfront and control panels with intuitive c 3
- Number 3
- Performance parameters operation principle cold air in the lower part of a room at the level of feet goes through the convector s heating element expanding at the moment of heating heat flow runs upwards through the outlet grill louver and smoothly spreads along the room at that the flow s direction set by louver s inclination creates a favorable accelerated circulation of warm air inside a room not concentrating it on walls and windows 3
- Power w 3
- Protective 3
- System 3
- Table 1 3
- Technical characteristics of the convector are given in table 1 3
- To prevent a potential fire do not block air intakes and air outlets do not hang and dry things on the convector use the convector only on a dry smooth surface 21 the convector contains internal hot and sparkling components do not use the convector in places where petroleum paint or any other flammable liquids are used or stored 22 use this convector only in the manner set forth in this manual any other use not recommended by the manufacturer can result in a fire electric shock or injuring of people 23 by no means clean the convector when it is connected to the mains do not submerge the convector into water never pull the power cord 24 to prevent overheating and fire as well as damage of internal electric mains do not change the length of the power cord and do not connect the unit through an electric extender but you can use it if its parameters comply with the unit s power and if it is don t used by other power energy consumers 25 for normal operation of the unit the mains voltage mus 3
- Voltage 3
- Weight 3
- Мощность no режимам вт 3
- Ш11111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111ш111111111111111111111111111111ш hiiiiiiiiiiiiiiiii 3
- Complete set 4
- Control panel 2 outlet grill louver 3 unit s body front part 4 cold air input 5 support castors 6 humidifier 7 heated towel rail 4
- Convector with a bracket and a carrying handle 1 pc 2 bracket s mounting screw 4 pcs 3 dowel 4 pcs 4 support leg 2 pcs 5 mounting screw of a support leg 8 pcs 6 operation manual 1 pc 7 guarantee card 1 pc 8 packing 1 pc 4
- Description of tec pf2 ml series fig 4
- Description of tec ps1 ml series fig 1 control panel 2 outlet grill louver 3 unit s body front part 4 support castors 5 cold air input 6 humidifier 7 heated towel rail 4
- Dimensional specifications 4 description of the convector 4
- Llllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 4
- Optional devices not included in the standard scope of delivery to be purchased separately fig 3 4
- Overall dimensions of the convectortec pf2 el series as per fig 1 are given intable2 table 2 4
- Overall dimensions of the convectortec ps el series as per fig are given intable3 table 3 4
- Series power tl 4
- Артикул 15
- Более подробное описание технических параметров и характеристик смотрите на сайте www timberk ru или спрашивайте у официальных дилеров тмвевк 15
- Быстрая самоокупаемость за счет высокого кпд и скорости набора задаваемой температуры 5 простота установки надежность в эксплуатации и легкость обслуживания 6 возможность выбора режима нагрева для экономии электроэнергии 7 встроенный ионизатор воздуха 8 опорные ножки для установки конвектора в любом удобном месте 9 встроенная ручка для перемещения 10 встроенный датчик падения отключающий конвектор при отклонении от вертикального положения например если прибор случайно опрокинут при использовании на ножках 11 возможность дополнительного приобретения и установки комплекта увлажнител ы полотенцесушитель 12 авторская лицевая и контрольная панель с интуитивной эргономикой управления 15
- В гц 15
- Г серия мощность л мм н мм а мм цмм в мм н23 мм 15
- Габаритные и установочные размеры конвектора серии tec ps 1 ее согласно рис 1 приведены в таблице 3 таблица 3 15
- Габаритные и установочные размеры конвектора серии тес ре2 ее согласно рис 1 приведены в таблице 2 таблица 2 15
- Габаритные размеры мм 15
- Данные в этой таблице вес размеры могут незначительно отличаться от реальных цифр 15
- Класс 15
- Мощность по режимам вт 15
- Номинальное номинальная номинальная напряжение сила тока а мощность вт 15
- Размерные характеристики 15
- Рис 15
- Русский 15
- Серия мощность л мм н мм а мм с мм в мм н23 мм 15
- Таблица 1 15
- Технические характеристики 15
- Технические характеристики конвектора приведены в таблице 1 15
- Электро защиты 15
- Timberk 26
Похожие устройства
- Timberk dh tim 60 e1w Инструкция по эксплуатации
- Timberk tih r3 3m Инструкция по эксплуатации
- Timberk tih r2s 3квт Инструкция по эксплуатации
- Timberk tih r2 3квт Инструкция по эксплуатации
- Timberk tih q1 3 квт Инструкция по эксплуатации
- Timberk swh re1 80 v Инструкция по эксплуатации
- Timberk tih r1 9 квт Инструкция по эксплуатации
- Timberk tih r1 6 квт Инструкция по эксплуатации
- Timberk tih r1 5 квт Инструкция по эксплуатации
- Timberk tih r1 3 квт Инструкция по эксплуатации
- Timberk thc ws2 6m aero Инструкция по эксплуатации
- Timberk tgh 4200 sm2 Инструкция по эксплуатации
- Timberk tgh 4200 sm1 Инструкция по эксплуатации
- Dantex RK-18SKGI/RK-18SKGIE Руководство пользователя
- Dantex RK-24SKGI/RK-24SKGIE Руководство пользователя
- Dantex RK-09SKGI/RK-09SKGIE Руководство пользователя
- Dantex RK-12SKGI/RK-12SKGIE Руководство пользователя
- Dantex D-H35AW Инструкция по эксплуатации
- Timberk tgh 4200 m3 Инструкция по эксплуатации
- Timberk tgh 4200 m2 Инструкция по эксплуатации

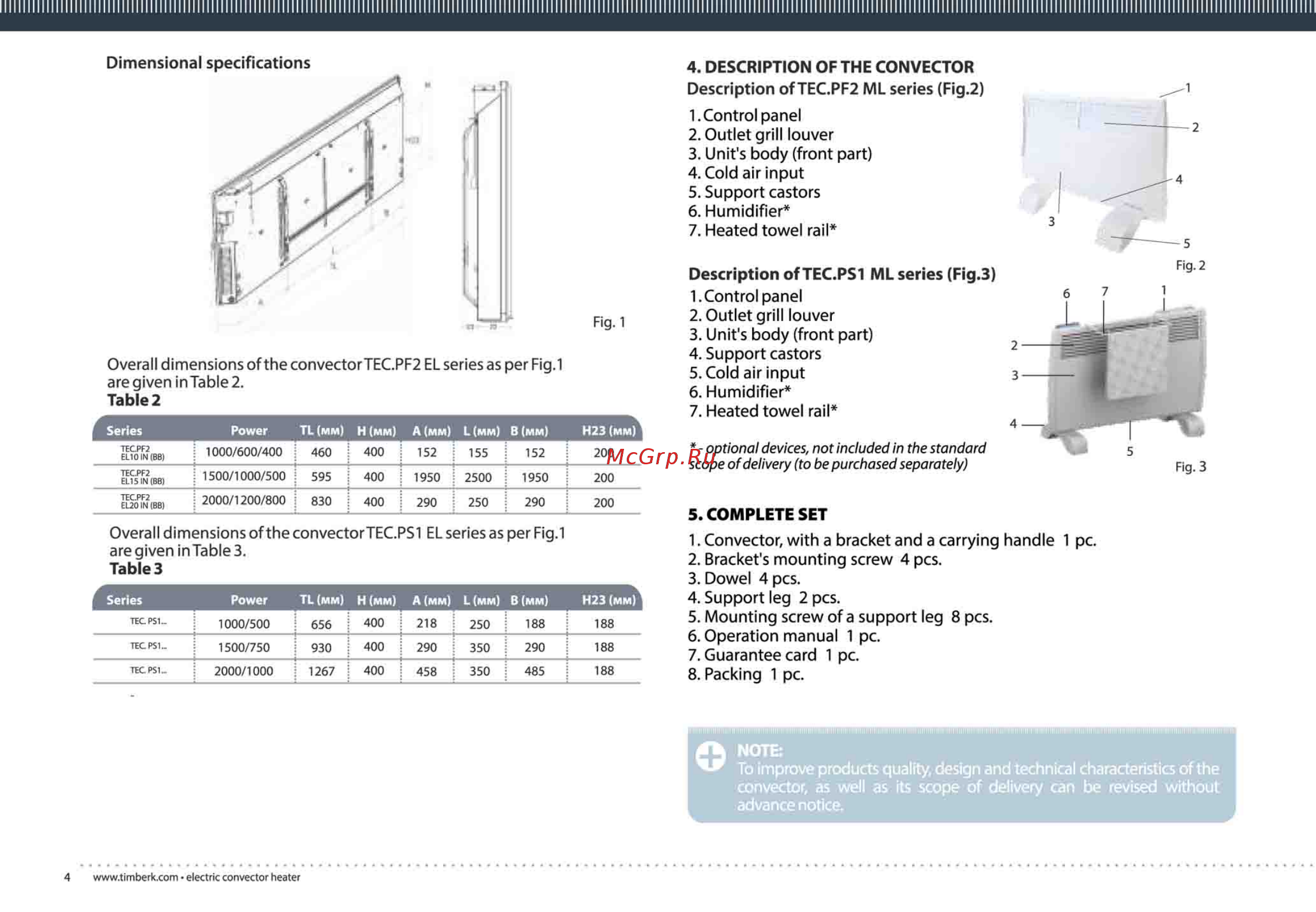

llllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll Dimensional specifications 4 DESCRIPTION OF THE CONVECTOR Description of TEC PF2 ML series Fig 2 1 Control panel 2 Outlet grill louver 3 Unit s body front part 4 Cold air input 5 Support castors 6 Humidifier 7 Heated towel rail Fig 1 Overall dimensions of the convectorTEC PF2 EL series as per Fig 1 are given inTable2 Table 2 TL MM H MM A MM L MM TECPF2 EL10 IN BB 1000 600 400 460 400 152 Î 155 152 200 TEC PF2 ELI 5 IN BB 1500 1000 500 595 400 j 1950 2500 1950 200 TECPF2 EUOIN BB 2000 1200 800 830 400 j 290 250 290 200 Series Power B MM H23 MM 1 Overall dimensions of the convectorTEC PS EL series as per Fig 1 are given inTable3 Table 3 Series 4 Power TL MM H MM A MM L MM B MM H23 MM 1 TEC PSI 1000 500 656 400 218 250 188 188 TEC PSI 1500 750 930 400 290 350 290 188 TECPS1 2000 1000 1267 400 458 350 485 188 www timberk com electric convector heater Description of TEC PS1 ML series Fig 3 1 Control panel 2 Outlet grill louver 3 Unit s body front part 4 Support castors 5 Cold air input 6 Humidifier 7 Heated towel rail optional devices not included in the standard scope of delivery to be purchased separately 5 COMPLETE SET 1 Convector with a bracket and a carrying handle 1 pc 2 Bracket s mounting screw 4 pcs 3 Dowel 4 pcs 4 Support leg 2 pcs 5 Mounting screw of a support leg 8 pcs 6 Operation manual 1 pc 7 Guarantee card 1 pc 8 Packing 1 pc Fig 3
