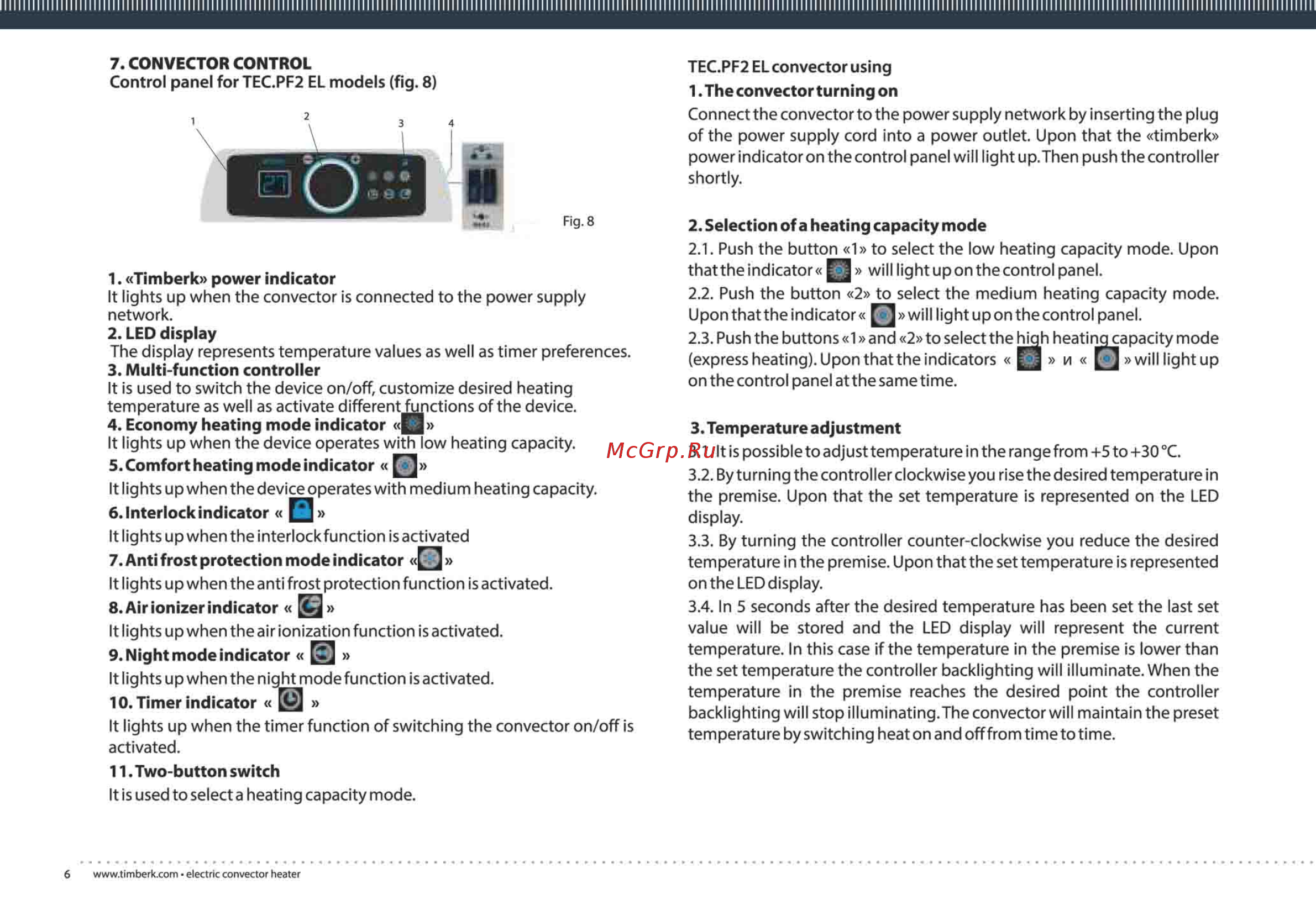

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiimiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim 7 CONVECTOR CONTROL Control panel for TEC PF2 EL models fig 8 TEC PF2 EL convector using I Theconvectorturningon Connect the convector to the power supply network by inserting the plug of the power supply cord into a power outlet Upon that the timberk power indicator on the control panel will light up Then push the controller shortly Fig 8 1 Timberk power indicator It lights up when the convector is connected to the power supply network 2 LED display The display represents temperature values as well as timer preferences 3 Multi function controller It is used to switch the device on off customize desired heating temperature as well as activate different functions of the device 4 Economy heating mode indicator Q It lights up when the device operates with low heating capacity 5 Comfort heating mode indicator n It lights up when the device operates with medium heating capacity 6 Interlock indicator 0 It lights up when the interlockfunction is activated 7 Anti frost protection mode indicator It lights up when the anti frost protection function is activated 8 Air ionizer indicator It lights up when the air ionization function is activated 9 Night mode indicator El It lights up when the night mode function is activated 10 Timer indicator 0 It lights up when the timer function of switching the convector on off is activated 11 Two button switch It is used to select a heating capacity mode 2 Selection of a heating capacity mode 2 1 Push the button 1 to select the low heating capacity mode Upon thatthe indicator Q will light up on the control panel 2 2 Push the button 2 to select the medium heating capacity mode Upon thatthe indicator will light up on the control panel 2 3 Push the buttons 1 and 2 to select the high heating capacity mode express heating Upon that the indicators n Q will light up on the control panel at the same time 3 Temperature adjustment 3 1 It is possible to adjust temperature in the range from 5 to 30 C 3 2 By turning the controller clockwise you rise the desired temperature in the premise Upon that the set temperature is represented on the LED display 3 3 By turning the controller counter clockwise you reduce the desired temperature in the premise Upon that the set temperature is represented on the LED display 3 4 In 5 seconds after the desired temperature has been set the last set value will be stored and the LED display will represent the current temperature In this case if the temperature in the premise is lower than the set temperature the controller backlighting will illuminate When the temperature in the premise reaches the desired point the controller backlighting will stop illuminating The convector will maintain the preset temperature by switching heat on and off from time to time
