www.timberk.com • electric ceiling heater
5
Minimum distances from the heater to other surfaces according to Fig. 2
are given in Table 3.
Table 3
1. Heater body
2. Radiating board
3. Heating element
4. Cover
5. Junction block
6. Rubber seal
1. Infrared heater - 1 pc
2. Set of fasteners - 1 pc
3. Operation manual - 1 pc
4. Warranty certificate - 1 pc
5. Package - 1 pc
WARNING!
At long standing in the heated area, the distance from
the heater radiating boards to a person or an animal at
indoor air temperature below +11 °C should be at least
1.8 m.

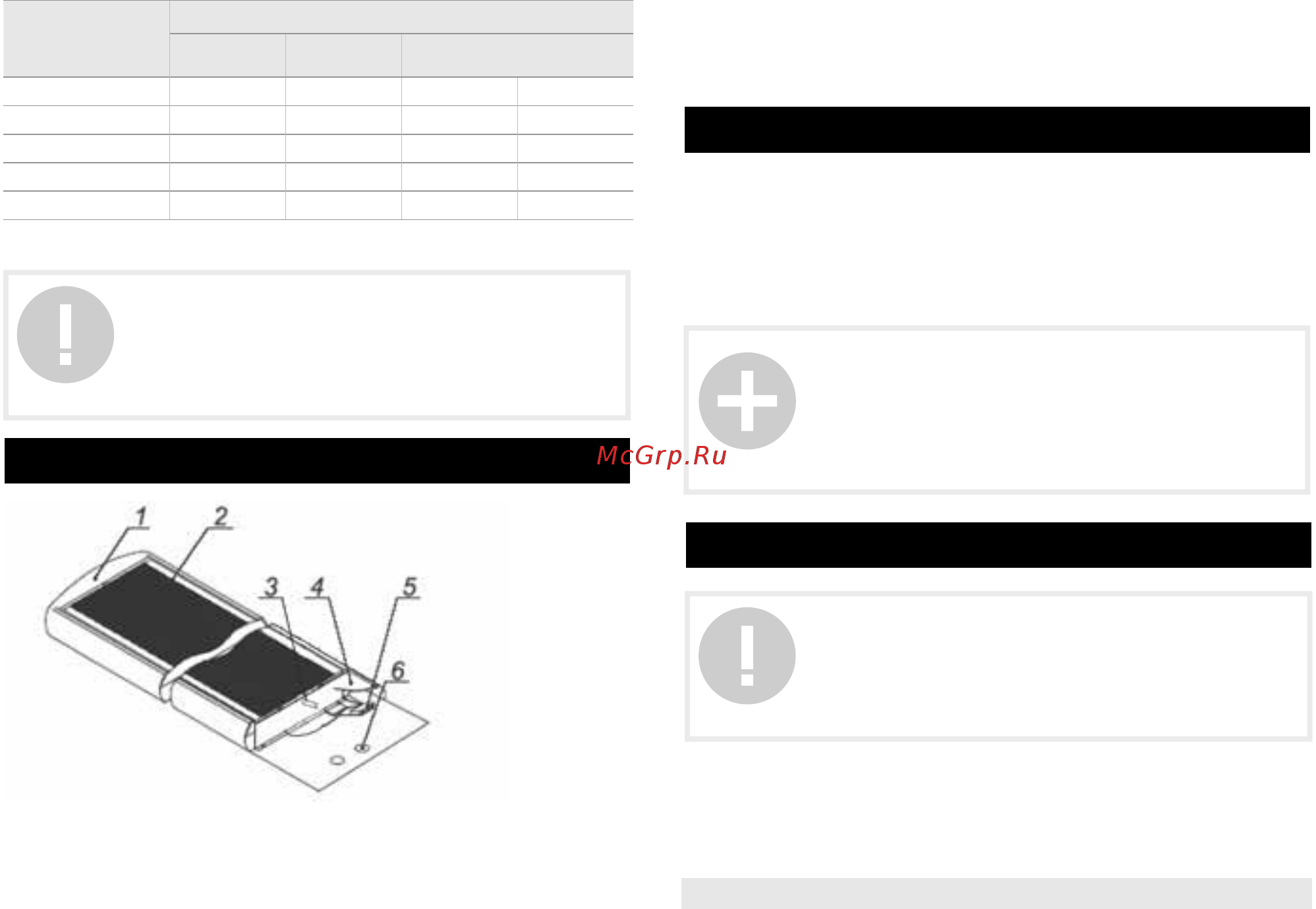

4. INFRARED HEATER DESCRIPTION
5. DELIVERY SET
Fig.3
Dimensions, mm
Article number
TCH A1N 700
TCH A1B 700
TCH A1N 1000
TCH A1B 1000
TCH A1N 1500
TCH A1B 1500
TCH A1N 2000
TCH A1B 2000
A 78 78 78 78
B 150 150 150 150
C 600 600 600 600
D 2200 2200 2500 2200
E* 700 700 700 700
* At long standing in the heated area
NOTE:
To improve the product quality, the design and
technical specifications of the infrared heater, as well
as its delivery set can be modified by the manufacturer
without preliminary notification.
6. INSTALLATION
WARNING!
Mounting of the infrared heater and its connection to the
electric mains should be carried out only by qualified
specialists according to the Electrical Installation
Regulations and Power System Safety Standards.
