Yamaha 8 CMHS [7/35] Fig 1 top cowling capot superieur
![Yamaha 8 CMHS [7/35] Fig 1 top cowling capot superieur](/views2/1240969/page7/bg7.png)
A
4

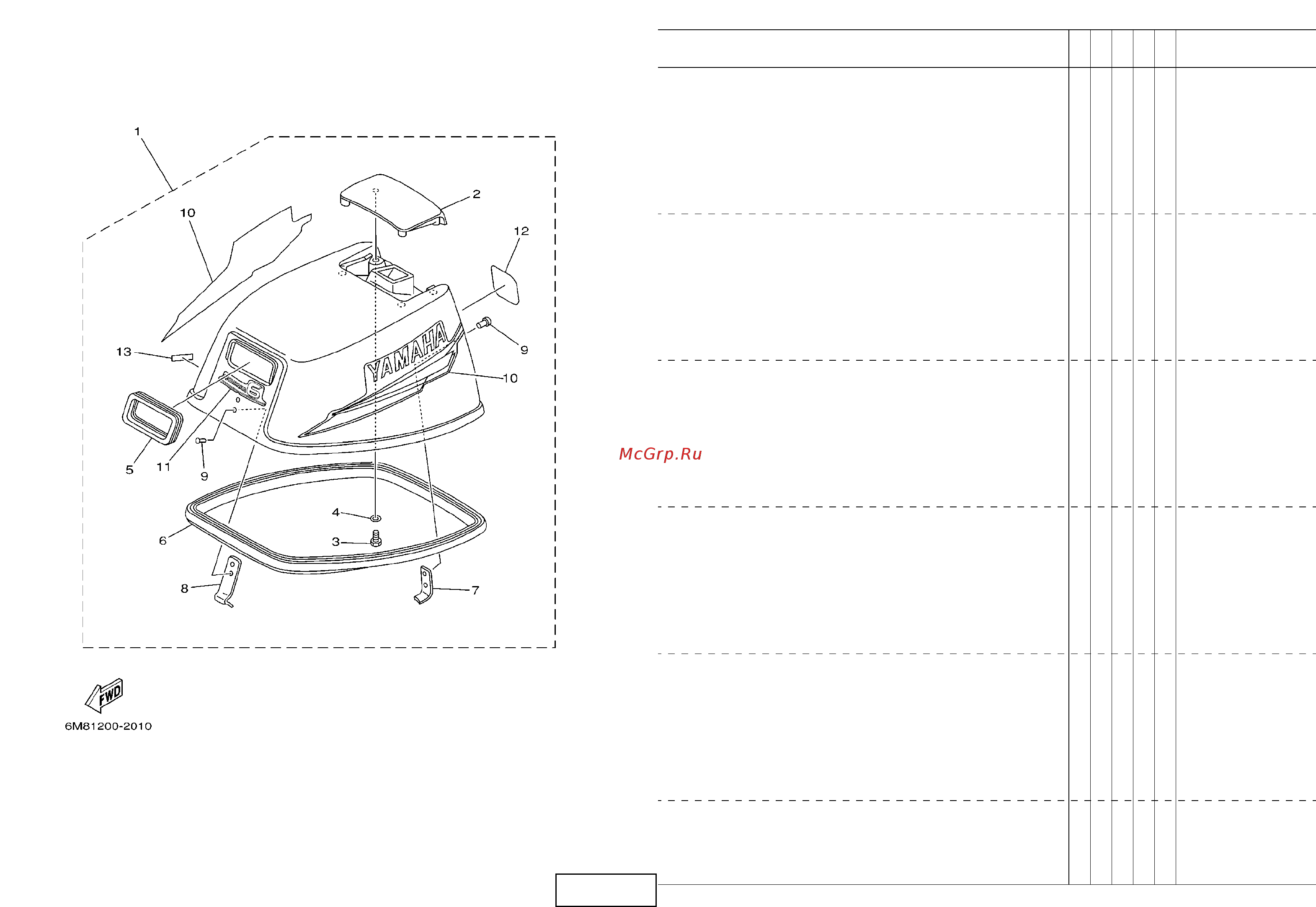

FIG. 1 TOP COWLING CAPOT SUPERIEUR
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
6M87
6N07
REMARKS
REMARQUES
1
6M8–G2610–30–4D
TOP COWLING ASSY
CAPOT (ENS.)
1
6N0–G2610–30–4D
TOP COWLING ASSY
CAPOT (ENS.)
1
2
6N0–G2613–00–4D
.MOLDING, AIR DUCT
.MANCHON A AIR
11
3
97095–06016
.BOLT
.BOULON
44
4
92995–06600
.WASHER
.RONDELLE
44
5
6G1–15761–00
.SEAL, RUBBER 1
.JOINT CAOUTCHOUC 1
11
6
6G1–42615–00
.SEAL
.JOINT
11
7
6G1–42647–00
.HOLDER, CLAMP BAND
.SUPPORT, SANDOW DE SERRAGE
11
8
6N0–G2651–00
.HOOK
.CROCHET
11
9
90266–04M00
.RIVET
.RIVET
44
10
6N0–WG070–10
.GRAPHIC SET
.JEU DIEMBLEMES
11
11
6M8–G2677–20
.GRAPHIC, FRONT
.ADHESIF, AVANT
1
6N0–G2677–20
.GRAPHIC, FRONT
.ADHESIF, AVANT
1
12
6M8–G2678–11
.GRAPHIC, REAR
.ADHESIF, ARRIERE
1
6N0–G2678–11
.GRAPHIC, REAR
.ADHESIF, ARRIERE
1
13
60R–G4191–00
.INDICATOR, SHIFT
.ETIQUETTE, EMBRAYAGE
11
