Echo CLS-5800 Деталировка онлайн
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
1 900162-05022 8 BOLT, H.S. 5*22
2 101010-54430 1 GASKET, CYL. BASE
5 P021-009180 1 CYLINDER,PISTON KIT
6 + A130-000590 1 CYLINDER
7 + P021-007300 1 PISTON KIT
8 ++ 100011-32330 2 RING, PISTON
9 ++ 100013-54430 1 PIN, PISTON
10 ++ 100015-00120 2 CIRCLIP, PISTON PIN
11 ++ 100012-12331 1 BEARING, NEEDLE
12 100100-54432 1 CRANKSHAFT
13 900323-03014 1 KEY WOODRUFF
14 900105-05016 1 BOLT, H.S. 5*16
15 178112-54432 1 HOLDER,THROTTLE WIRE
20 100204-54431 1 CRANKCASE KIT
21 + 100212-19830 1 OILSEAL
22 + 100215-03930 2 PIN, DOWEL
23 + 900810-36202 2 BEARING, BALL 6202
24 + 100242-54430 1 GASKET, CRANKCASE
25 + 900162-05035 4 BOLT, H.S. 5*35
26 + 100213-02830 1 OILSEAL
27 + 900702-00035 1 CIRCLIP 35
28 P021-007442 1 COVER, CYLINDER
29 + 900330-40298 1 PIN 4*29.8
30 + 163890-38330 1 BOLT, 5
-1-
Memo

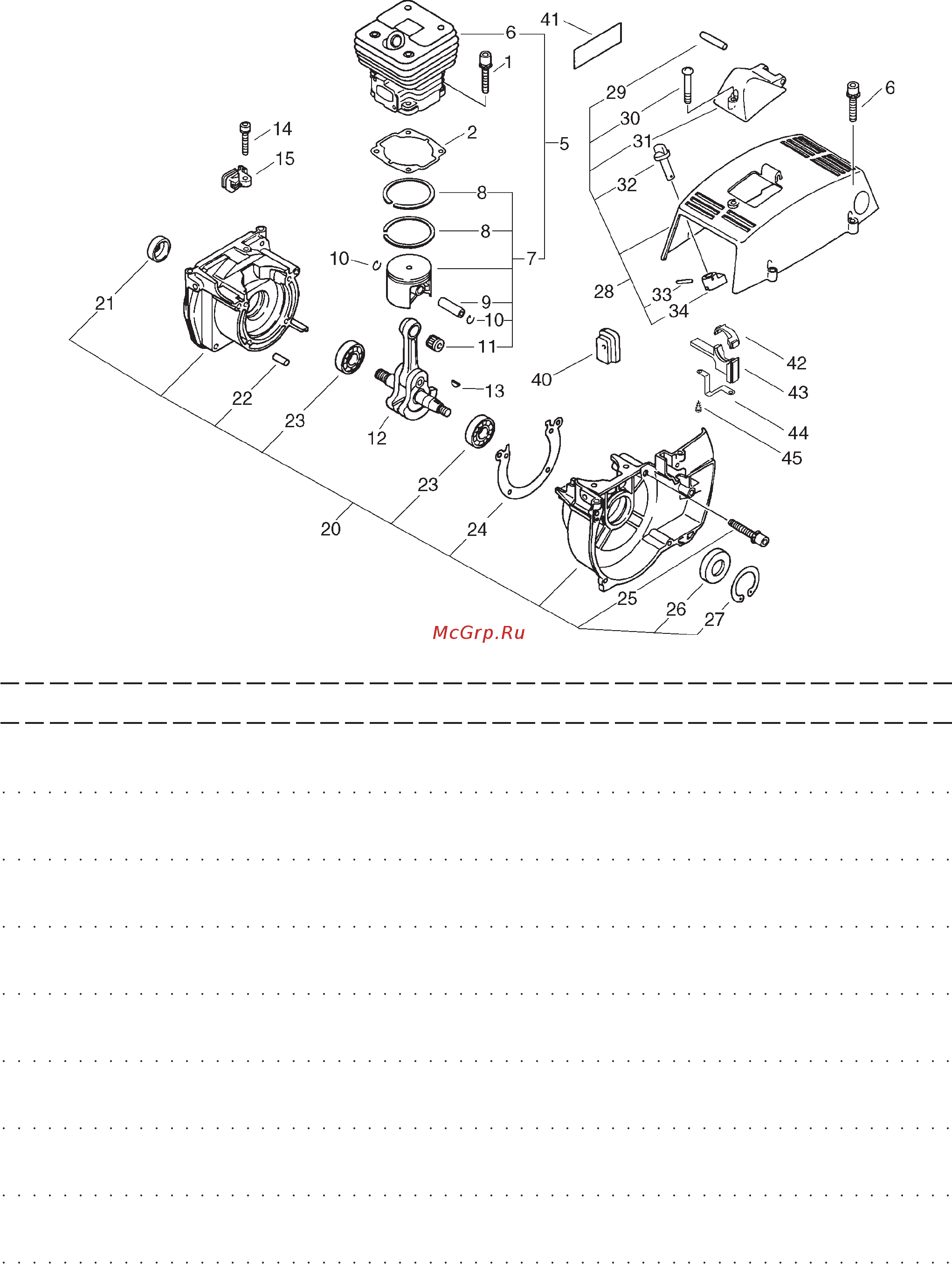

CLS-5800 1 Cylinder, Crankcase, Piston
CLS-5810
Содержание
- 900162 05022 8 bolt h s 5 22 2 101010 54430 1 gasket cyl base 5 p021 009180 1 cylinder piston kit 6 a130 000590 1 cylinder 7 p021 007300 1 piston kit 8 100011 32330 2 ring piston 9 100013 54430 1 pin piston 10 100015 00120 2 circlip piston pin 11 100012 12331 1 bearing needle 12 100100 54432 1 crankshaft 13 900323 03014 1 key woodruff 14 900105 05016 1 bolt h s 5 16 15 178112 54432 1 holder throttle wire 20 100204 54431 1 crankcase kit 21 100212 19830 1 oilseal 22 100215 03930 2 pin dowel 23 900810 36202 2 bearing ball 6202 24 100242 54430 1 gasket crankcase 25 900162 05035 4 bolt h s 5 35 26 100213 02830 1 oilseal 27 900702 00035 1 circlip 35 28 p021 007442 1 cover cylinder 29 900330 40298 1 pin 4 29 30 163890 38330 1 bolt 5 1
- Cls 5800 1 cylinder crankcase piston cls 5810 1
- Key lv part number q ty description remarks 1
- 159015 54430 1 cover plug cap 32 178510 54430 1 rod choke 33 900342 20010 1 pin spring 2 10 34 178522 54430 1 end lever 40 178215 54431 1 grommet 41 890112 54430 1 label model 42 v541 000110 1 seal 43 v541 000120 1 seal 44 v152 001420 1 plate angle 45 900253 04016 2 screw 4 16 2
- Cls 5800 1 cylinder crankcase piston cls 5810 2
- Key lv part number q ty description remarks 2
- 125326 08360 1 strainer 27 125341 54430 1 diaphragm 28 p005 001850 1 cover diaphragm 29 125344 52130 4 screw 30 p005 001440 1 gasket metering 31 125327 15130 1 clip 32 125345 15130 1 plug welch 33 p005 001470 1 nozzle check valve 34 125378 13930 1 piece friction 35 p005 001510 1 retainer limit cap 36 p005 001500 1 screw boot adjust 37 p005 001560 1 spring choke return 39 125333 08560 1 spring adjust screw 40 p005 001530 1 limiter temper 41 p005 001520 1 limiter temper 42 p005 001870 1 washer 3
- 890118 54430 1 label echo 4 900162 05022 4 bolt h s 5 22 5 177200 54432 1 starter asy 7 177220 00220 1 spring rewind 8 177215 06230 1 drum starter 9 177226 06230 1 rope starter 10 177227 05530 1 guide rope 11 177234 54430 1 spring return 12 177218 54430 1 pawl starter 13 177228 11120 1 grip starter 14 177233 54430 1 spring friction 15 177211 06230 1 plate friction 16 900100 06012 1 bolt 6 12 18 101511 54431 1 cover fan 19 v485 000160 1 lead 22 900162 05022 2 bolt h s 5 22 23 159012 01620 1 cap spark plug 24 159011 03432 1 coil spark plug cap 25 a425 000000 1 plug spark 26 a409 000221 1 rotor magneto 27 900517 00010 1 nut 28 v475 001610 1 tube 29 150623 16130 1 tube 30 175000 54431 1 clutch asy 3
- Cls 5800 2 starter magneto clutch cls 5810 3
- Cls 5800 8 carburettor cls 5810 3
- Key lv part number q ty description remarks key lv part number q ty description remarks 3
- 175016 54430 1 hub clutch 32 175014 11231 4 washer clutch 33 175009 54430 2 shoe clutch 36 175030 54430 2 metal 34 175018 54430 1 spring clutch 35 175046 54430 2 shaft clutch 39 a411 000191 1 coil ignition 40 a410 000000 1 coil exciter 41 162010 04561 1 lead ground 42 v485 000510 1 lead 43 v475 003570 1 tube 44 178016 47430 1 tube 4
- A021 000951 1 carburetor diaphragm 1 125310 13930 1 screw 2 125324 54430 1 cover pump 3 p005 001430 1 gasket pump 4 p005 001420 1 diaphragm pump 5 125316 54430 1 valve throttle 6 125314 51230 2 screw 7 125313 54430 1 spring thrt return 8 p005 001610 1 shaft asy throttle 9 125327 13930 1 clip 10 p005 001860 1 swivel 11 p005 001490 1 shaft choke 12 p005 001480 1 screw throttleadjust 13 125353 20560 2 washer 14 p005 001460 1 screw idle mixture 15 p005 001450 1 screw mainn mixture 16 125322 11520 1 spring coil 17 125338 13930 1 pin metering arm 18 125339 13930 1 screw 19 125323 08260 1 arm valve 20 125337 08260 1 valve inlet needle 21 125336 33330 1 ball steel 22 125335 33330 1 springt friction 23 125332 33330 1 valve choke 4
- Cls 5800 2 starter magneto clutch cls 5810 4
- Cls 5800 8 carburettor cls 5810 4
- Key lv part number q ty description remarks key lv part number q ty description remarks 4
- 130010 54430 1 gasket intake 3 130007 54430 1 insulator 4 130012 54430 1 seal 5 130016 54430 1 gasket intake 6 a021 000951 1 carburetor 7 130314 54430 1 case cleaner 8 130420 54430 1 bracket air cleaner 9 130310 54430 1 filter air 10 130302 54431 1 cover asy air cln 11 130415 40630 1 screw 12 900720 00004 1 o ring p 4 13 900105 05055 2 bolt h s 5 55 14 900162 05030 2 bolt h s 5 30 15 130110 54430 1 pipe impulse 5
- 699000 47531 1 shield asy 7 900162 05020 4 bolt h s 5 20 40 695001 51530 1 saw eia200 20 41 898503 08031 1 cover set cutter 5
- 699000 54530 1 shield asy 51 699011 51530 1 bracket shield 52 699010 54430 1 shield blade 53 699013 52130 1 plate shield 54 900162 05018 4 bolt h s 5 18 55 900603 00005 4 washer 5 56 900500 00005 6 nut 5 57 900162 05014 4 bolt h s 5 14 58 699015 52130 1 plate shield 59 900162 05025 2 bolt h s 5 25 60 699016 54530 1 knife 61 900162 05012 2 bolt h s 5 12 65 p021 007470 1 scabbard kit blade 5
- Cls 5800 5
- Cls 5800 3 air cleaner carburettor cls 5810 5
- Cls 5800 7 gear case blade shield tools cls 5810 5
- Cls 5810 5
- Key lv part number q ty description remarks key lv part number q ty description remarks 5
- 145906 54431 1 cover muffler 2 p021 008640 1 muffler 3 145910 54430 1 insulator muffler 4 145510 54430 1 gasket muffler 5 900162 05018 3 bolt h s 5 18 6 900105 05016 7 bolt h s 5 16 7 900105 05010 2 bolt h s 5 10 8 900162 05075 2 bolt h s 5 75 10 131004 16432 1 cap asy fuel 11 900720 00032 1 o ring 32 12 900246 03008 1 screw 3 8 13 131023 14730 1 chain ball 14 131042 14730 1 spring closs 15 131005 54430 1 tank fuel 16 130031 10230 2 washer 17 900600 00005 4 washer 5 20 131300 56430 1 valve check 21 132013 09820 1 clip 22 132010 02960 1 pipe fuel 23 132115 44330 1 grommet 24 131205 19830 1 strainer fuel 25 132010 54430 1 pipe 26 132013 26630 1 clip 6
- Cls 5800 4 muffler fuel tank cls 5810 6
- Cls 5800 7 gear case blade shield tools cls 5810 6
- Key lv part number q ty description remarks key lv part number q ty description remarks 6
- P021 004762 1 housing asy gear 10 900701 00015 1 circlip 15 11 900702 00035 2 circlip 35 12 900810 06202 2 bearing ball 6202 13 610300 47530 1 gear set 14 900162 05035 2 bolt h s 5 35 15 900162 05014 1 bolt h s 5 14 16 610434 50031 1 bolt 8 8 17 900800 06001 1 bearing ball 6001 18 610310 51530 1 shaft p t o 19 900813 06202 1 bearing ball 6202z 20 610334 06230 1 spacer oilseal 21 610413 47530 1 oilseal is 20 35 7 22 c535 000050 1 fixture blade 23 c535 000060 1 fixture blade 24 610352 47530 1 plate cup 25 610320 47530 1 nut lock 42 897518 01131 1 locking tool 43 895610 00130 1 l wrench 4mm 44 x602 000020 1 tool wrench 45 x690 000030 1 goggle 46 178121 43230 1 band 6
- 351110 47530 1 handle front 7
- 351110 54430 1 handle front 7
- 890617 43130 1 label caution 11 301205 47531 1 h00k 12 900162 05020 1 bolt h s 5 20 20 900162 05035 1 bolt h s 5 35 21 610223 54430 1 flange d s housing 22 900162 05030 2 bolt h s 5 30 23 900701 00015 1 circlip 15 24 900819 06202 2 bearing ball 6202 25 900702 00035 1 circlip 35 26 175005 54430 1 drum clutch 27 305110 54430 1 stand 28 900162 05020 2 bolt h s 5 20 29 900162 05025 4 bolt h s 5 25 30 100905 51530 2 cushion 31 610922 54430 1 holder 32 900162 05014 2 bolt h s 5 14 35 301000 51530 1 harness shoulder 7
- Cls 5800 7
- Cls 5800 5 pipe harness cls 5810 7
- Cls 5800 6 handle cls 5810 7
- Cls 5810 7
- Key lv part number q ty description remarks key lv part number q ty description remarks 7
- 610011 47530 1 shaft drive 8 610206 47531 1 housing asy d shft 14 610603 54530 1 pipe w cable guide 8
- 610011 51530 1 shaft drive 8 610206 51531 1 housing asy d shft 14 610603 54430 1 pipe w cable guide 8
- C463 000000 1 knob latch 3 v452 000060 1 supring torsion 5 p021 002612 1 grip asy f handle 6 900253 04016 3 screw 4 16 7 900220 05030 1 screw 5 30 8 900500 00005 1 nut 5 9 c460 000011 1 lockout throttle 10 v452 000130 1 spring torsion 11 c450 000022 1 trigger throttle 12 163401 54530 1 switch ignition 14 v430 000910 1 cable bowden 15 178127 54530 1 tube 7 10 130 16 351302 47530 1 bracket handle 17 900162 05025 4 bolt h s 5 25 18 351210 47530 1 handle rear 19 351301 47533 1 bracket handle 20 900162 05035 6 bolt h s 5 35 21 900162 05014 2 bolt h s 5 14 22 100905 51530 2 cushion 24 351213 47531 1 grip 25 v475 002930 1 tube 26 v495 000000 2 band 8
- Cls 5800 8
- Cls 5800 5 pipe harness cls 5810 8
- Cls 5800 6 handle cls 5810 8
- Cls 5810 8
- Key lv part number q ty description remarks key lv part number q ty description remarks 8
