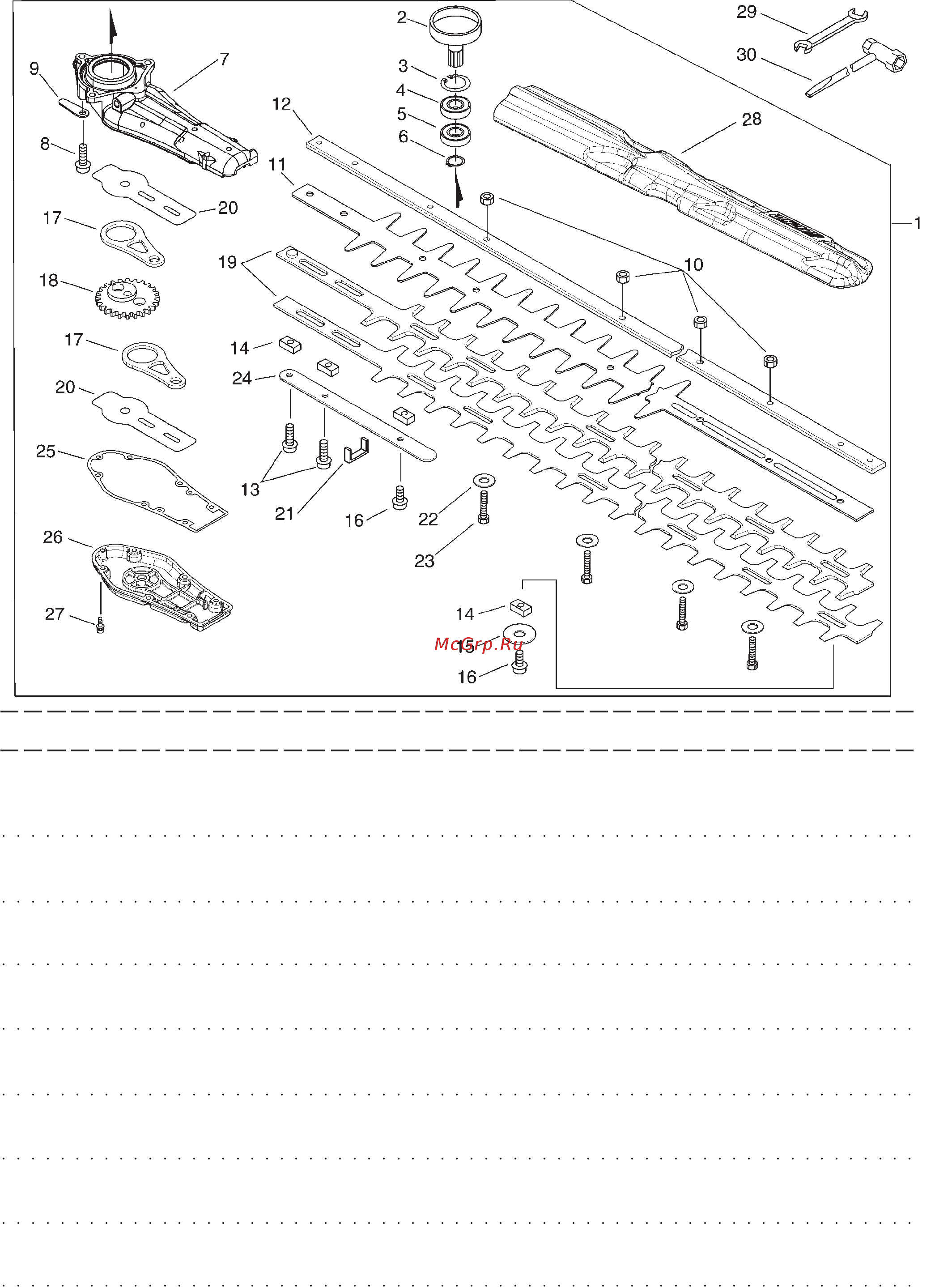

Echo HCR-171ES [9/16] Hcr 171es 6 gear case cuttler tools
![Echo HCR-171ES [9/16] Hcr 171es 6 gear case cuttler tools](/views2/1241305/page9/bg9.png)
- 8 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
1 P021-013680 1 CASE,GEAR ASY
2 + A556-000470 1 DRUM, CLUTCH
3 + 900702-00035 1 CIRCLIP 35
4 + 900812-06202 1 BEARING, BALL 6202
5 + 900810-36202 1 BEARING, BALL 6202
6 + 900701-00014 1 CIRCLIP 14
7 + P021-013070 1 CASE,GEAR
8 + 91107-06020 3 BOLT HSH FLANGE
9 + C628-000030 1 PIECE, PLATE
10 + 433022-06460 4 NUT
11 + X431-000040 1 BLUNT
12 + X425-000360 1 SUPPORT,CUTTER
13 + 900106-05025 2 BOLT, H.S. 5*25
14 + V353-000250 4 COLLAR,5
15 + 177214-21860 1 WASHER
16 + 900106-05014 2 BOLT, H.S. 5*14
17 + C532-000170 2 ROD, CONNECTING
18 + V650-000300 1 GEAR,SPUR
19 + X411-000600 2 CUTTER
20 + V150-001810 2 PLATE,EYE
21 + V541-000140 1 SEAL
22 + 699118-04560 4 WASHER
23 + 699115-06960 4 BOLT, CUTTER
24 + V150-001800 1 PLATE,EYE
HCR-171ES 6 Gear Case, Cuttler, Tools
