Landscaping l Trenching

Before landscaping or trenching, inspect and ensure there are no exposed or buried

cables or pipes or other objects that may create a hazard or interfere with operating the

edger. Lift the edge guide lever (6) for all trenching. Set depth to only that required for the

job, do not overload, if tool slows, pull back slightly and wait until the blade returns to

normal speed.

Changing the Blade

Prior to attempting to perform any maintenance which

includes the changing of the blade, ensure the power

supply cable has been totally disconnected from the

mains 240Volt supply.

Position the edger on its side with the Blade upwards.

Ensure the surface you are working on is clean and

foreign particles (stones etc) cannot enter the air intake

slots of the motor housing.

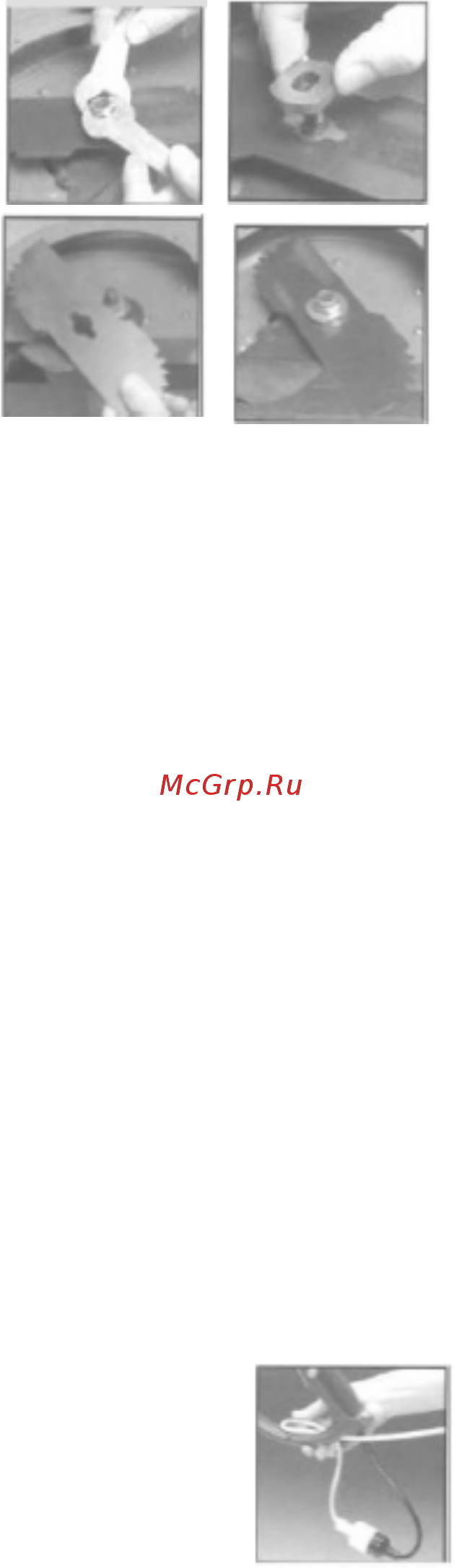

Place the large flange spanner over the outer blade

flange.

Fit the blade spanner over the blade lock nut and while

holding firmly the spanner on the blade flange, rotate the locking nut in an anti clockwise

direction.

Remove the lock nut completely along with the outer flange and blade.

There is no need to remove the inner flange although on re assembly the area of the inner

flange must be free of foreign particles of dirt etc.

To re assemble with the a new blade fit the inner flange on to the spindle, fit the

replacement blade and secure the outer flange on to the spindle and blade.

Ensure the assembly is correct and the blade is correctly orientated by checking the

diagram below.

With the spanner fitted to the outer flange, fit the locking nut and tighten with the blade

spanner in a clockwise direction.

After the blade is secure, rotate the blade by hand to ensure the blade is not making

contact with any components of the edger.

Blade wear is expected whenever you use your edger. Blades wear quite quickly when

edging along concrete paths. This does not effect the efficiency of the Edger and is

expected due to the aggressive abrasion of concrete on steel.

Edger Blades are not a warranty item! Edger Blades are available from your local

Hardware store or con be purchased direct from your TEXAS dealer. See details on the

back page of this manual.

Cord Restraint

Your TEXAS EDGER is fitted with a Cord restraint to prevent the power coble from both

being disconnected and also to prevent excessive strain on the connecting plugs during

use. It is recommended the cord restraint is used as follows.

Approx. 300mm from the end of the extension Cable, form a tight loop in

the extension cable, and feed the loop through the square hole in the rear

of the handle. Place the loop over the inner hook in the handle to prevent

the cable pulling back through the square hole.

The extension cable can now be connected to the edger, with the plug of

the EDGER and the socket of the extension cable hanging free, and not being effected by

any movement during operation.
