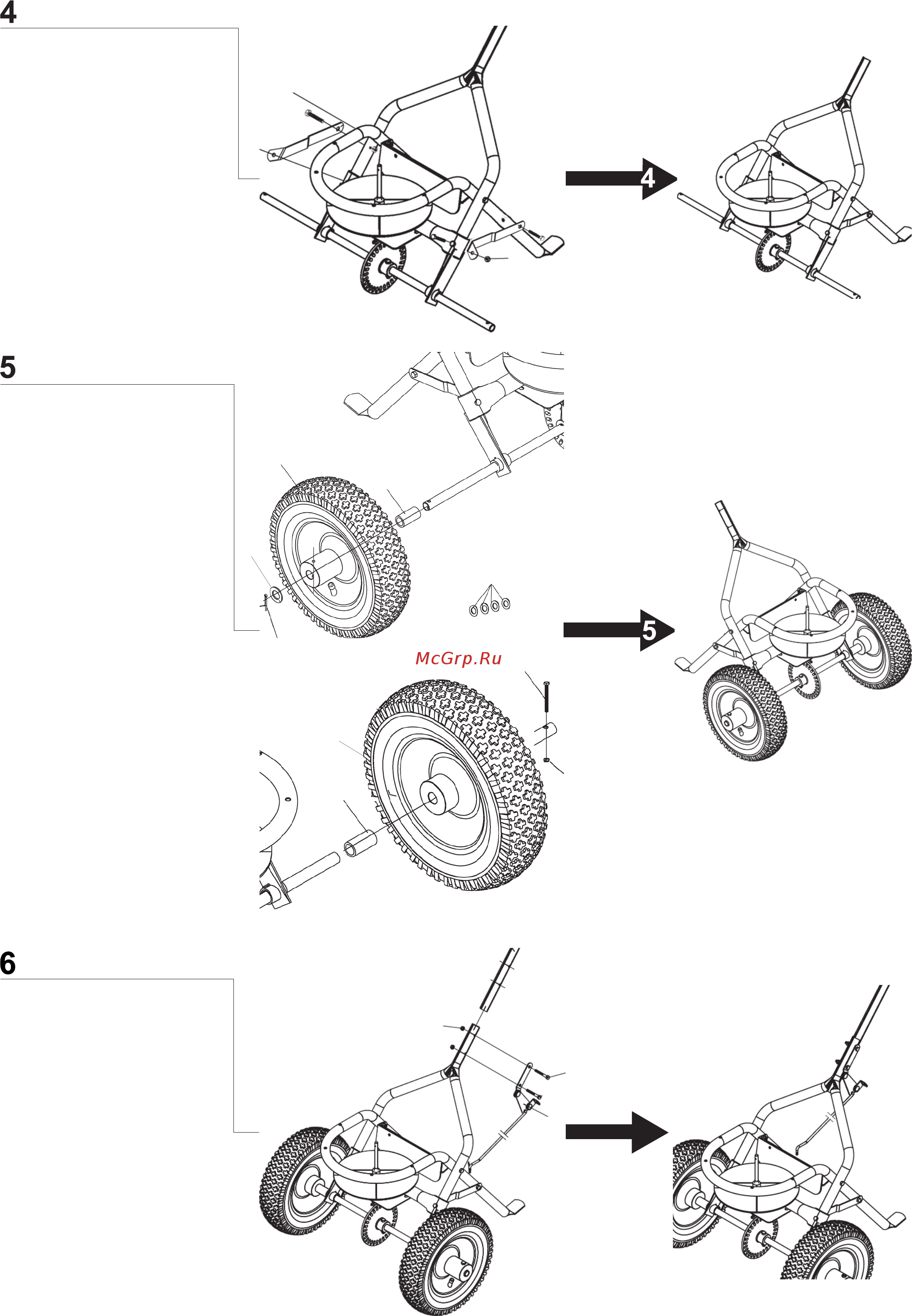

Attach the bush (P) on

each side of the gear (S)

axis. Lock the bush (P)

into the lower handlebar

(X)

Attach the left wheel (E1)

and insert the washer

(I) on the outside of the

wheel, fasten with cotter

pin (M).

Attach the right wheel

(E1) and fasten with bolt

(B) and nut (L)

Important:

Use the spare washer (I)

to align the spacing on

axis /wheels.

Attach the handle rod(U)

onto the lower handle (X).

Insert bolt (C) from left

side, onto the

connector (T) through the

handle rod(U) and the

lower handle (X).

Fasten with the nut (L)

from the right side.

Adjust the frame supporter

(R) on each side of the

lower handlebar (X) and

frame (B1).

Attach the bolt (F) in frame

(B1) tighten with locknut

(L)

Attach the bolt (F) above

the bracket on the gear

(S) through the lower han-

dle (X) tighten locknut (L).
