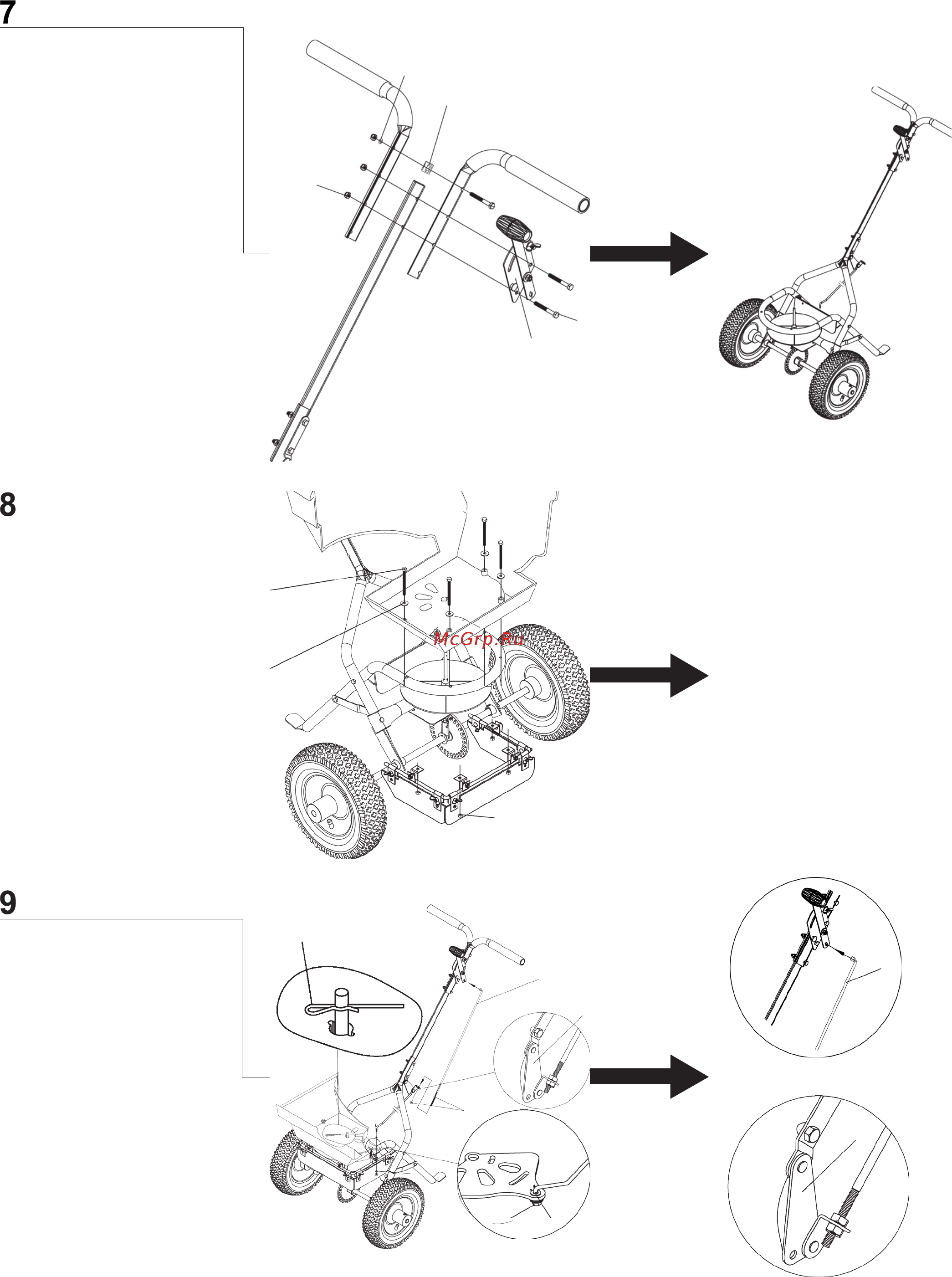

Attach the handle (D1)

over the handle rod (U)

from left side.

Insert the bolt (D) through

the dispenser lever (Y)

further through the handle

(D1) and the handle rod

(U) Fasten nut (L) a little

bit for now.

Insert spacer (O) onto the

upper hole of the handle

rod (U). Attach the bolt

(D) onto handle (D1),

secure with nut (L). Now

tighten the other bolts to

secure the handle.

Attach the hopper (Z)

above the frame (B1) and

thedeector(A1)from

below the frame (B1) and

align. Secure with bolt

(E), washer (J) and nut

(L).

Important: Adjust bracket

on the gear(S) and

ensure that the

deector(A1)apsare

pulled down before

installation.

Attach the R pin (N) from

the inside of the

hopper (Z) onto the

impeller shaft.

Attach rod (V) to the

dispenser lever(Y) at one

end and the connector (T)

at the other end, secure

with nut (L).

Attach the rod from the

connector (T) onto the

bracket underneath the

hopper (Z) insert the

washer (K) and nut (L)

to secure.
