![Ford Focus I (2003) [5/16] Wire colours key to items diagram 4](/img/pdf.png)
Ford Focus I (2003) [5/16] Wire colours key to items diagram 4
![Ford Focus I (2003) [5/16] Wire colours key to items diagram 4](/views2/1247880/page5/bg5.png)
Содержание
- Ford focus 2001 to 2004 1
- Key to circuits 1
- Earth locations 2
- Engine compartment fuses 5 2
- Engine fusebox passenger fusebox 2
- Ford focus wiring diagrams diagram 1 2
- Key to symbols 2
- Passenger compartment fuses 6 2
- Wire colours key to items diagram 2 3
- Diagram 3 4
- Key to items 4
- S ide tail number plate lights 4
- Wire colours 4
- Wire colours key to items diagram 4 5
- Diagram 5 6
- Key to items 6
- Wire colours 6
- Diagram 6 7
- Key to items 7
- Wire colours 7
- Diagram 7 8
- Key to items 8
- Switch illumination 8
- Wire colours 8
- Diagram 8 9
- Key to items 9
- Wire colours 9
- Battery ignition switch engine fuse box r34 r41 10
- Bk gn pk lg bn 10
- Black green pink light green brown 10
- Front rear washer pump headlight washer pump rear wiper motor 10
- Front wiper intermittent wiper delay rear wash wipe front washer 10
- Front wiper motor wash wipe switch a b 10
- Headlight washer relay ignition relay 10
- Heated washer jets 10
- Lh heated washer jet 86 rh heated washer jet 10
- Og orange na natural 10
- Passenger fusebox r64 rear wiper relay r162 front wiper relay generic electronic module gem 10
- Vt violet rd red gy grey bu blue wh white ye yellow s r silver 10
- Was h wipe headlight was her 10
- Wire colours key to items diagram 9 10
- 68 90 91 92 93 94 95 11
- Battery ignition switch engine fuse box passenger fusebox generic electronic module gem tailgate switch driver s door switch passenger s door switch 11
- Bk gn pk lg bn 11
- Black green pink 11
- E lectric windows j 11
- F central locking j 11
- Lh rear door switch rh rear door switch tailgate release switch driver s door lock assembly passenger s door lock assembly lh rear door lock assembly rh rear door lock assembly driver s window switch 11
- Light green bu blue brown 11
- Og orange na natural 11
- Passenger s window switch 97 driver s window motor 98 passenger s window motor 11
- Vt violet rd red gy grey 11
- Wh white ye yellow s r silver 11
- Wire colours key to items diagram 10 11
- Diagram 11 12
- Key to items 12
- Wire colours 12
- Diagram 12 13
- Heaterblower recirculation 13
- Key to items 13
- Seat height adjustment 13
- Wire colours 13
- Audio unit 121 lh front speaker 122 lh rear speaker 123 rh front speaker 124 rh rear speaker 125 remote audio controls 126 srs control module 127 forward crash sensor 14
- Battery 4 ignition switch 14
- Bk black gn green pk pink lg light green b n brown og orange na natural 14
- Diagram 13 14
- Driver s airbag unit 129 passenger s airbag unit 130 lh side airbag unit 131 lh side airbag crash sensor 132 rh side airbag unit 133 rh side airbag crash sensor 134 driver s seatbelt pretensioner 135 passenger s seatbelt pretensioner 14
- Engine fusebox r41 ignition relay 14
- Key to items 14
- Passenger fusebox 26 steering wheel clock springs 118 sunroof unit 119 sunroof switch 14
- Sunroof 14
- Vt violet rd red gy grey bu blue wh white ye yellow s r silver 14
- Wire colours 14
- 146 147 148 15
- 150 151 152 153 15
- Abs esp control unit lh front wheel sensor lh rear wheel sensor rh front wheel sensor rh rear wheel sensor tcs esp switch steering wheel position sensor esp only yaw rate acceleration sensor esp only primary brake pressure sensor esp only 15
- Battery ignition switch engine fusebox r13 power hold relay r41 ignition relay d33 diode passenger fusebox steering wheel clock springs stop light switch 15
- Bk gn pk lg bn 15
- Black green pink light green brown 15
- Cruise control 15
- Cruise control control unit steering wheel control switch brake pedal position switch clutch switch manual only vehicle speed sensor 15
- Diagram 14 15
- I abs tcs esp j 15
- Og orange na natural 15
- Vt violet rd red gy grey bu blue wh white ye yellow sr silver 15
- Wire colours key to items 15
- Diagram 15 16
- Key to items 16
- Wire colours 16
Похожие устройства
- Ridgid 424-CI для труб из литого/высокопрочного Руководство пользователя
- Ridgid 424-S для стальных труб Руководство пользователя
- Ridgid 466-CI для труб из литого чугуна Руководство пользователя
- Ridgid 466-D для труб SML Руководство пользователя
- Ridgid 466-HWS для толстостенных стальных труб Руководство пользователя
- Ridgid 466-S для стальных труб Руководство пользователя
- Ridgid 468-CI для труб из литого чугуна Руководство пользователя
- Ridgid 468-HWS для толстостенных стальных труб Руководство пользователя
- Ridgid 468-S для стальных труб Руководство пользователя
- Ridgid 472-CI для труб из литого чугуна Руководство пользователя
- Ridgid 472-HWS для толстостенных стальных труб Руководство пользователя
- Ridgid 472-S для стальных труб Руководство пользователя
- Ridgid 202 для тяжелых работ Руководство пользователя
- Ridgid 202 для тяжелых работ Деталировка
- Ridgid 122 Инструкция по эксплуатации
- Ridgid 122 Деталировка
- Ridgid 1300 Вт 230 В Инструкция по эксплуатации
- Ridgid 550-1 для больших нагрузок 1200 Вт 230 В Инструкция по эксплуатации
- Ridgid 550-1 для больших нагрузок 1200 Вт 115 В Инструкция по эксплуатации
- Ridgid 3812S с раздвижной пластиной 3/8-2 Инструкция по эксплуатации

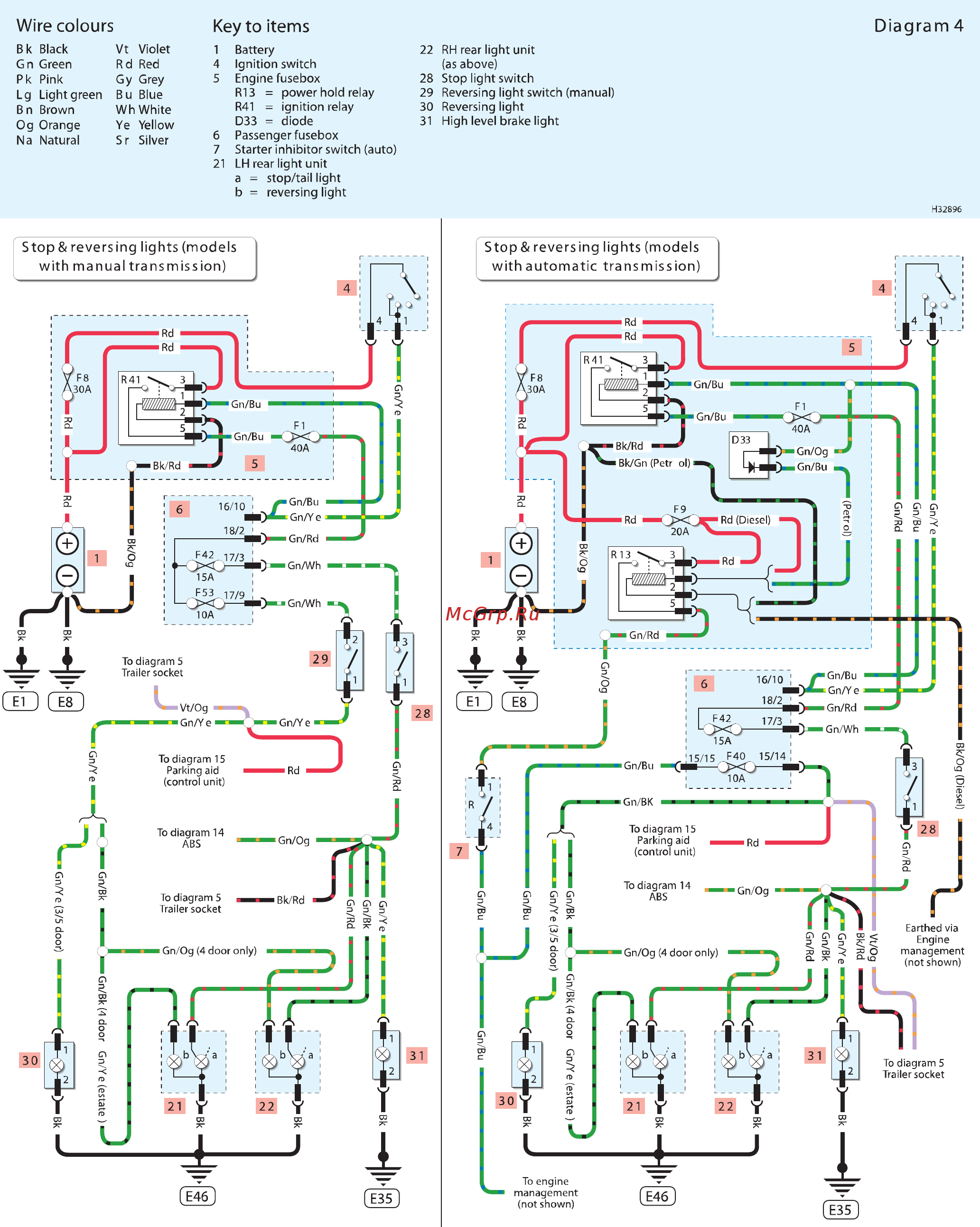

Wire colours Bk Black Gn Green Pk Pink Lg Light green Bn Brown Og Orange Na Natural Diagram 4 Key to items Vt Violet Rd Red Gy Grey Bu Blue Wh White Ye Yellow Sr Silver 1 Battery 4 Ignition switch 5 Engine fusebox R13 power hold relay R41 ignition relay D33 diode 6 Passenger fusebox 7 Starter inhibitor switch auto 21 LH rear light unit a stop tail light b reversing light 22 RH rear light unit as above 28 Stop lightswitch 29 Reversing light switch manual 30 Reversing light 31 High level brake light H32896 Bk Og Diesel
