Star Pro 10 [15/18] Installation

Dim Button

Model STAR PRO10 has this function. You can adjust the brightness of the LED display. It’s rather

convenient at night (when the display brightness might be dimmed in order to prevent eyes weariness) as

well as in daytime (when it’s necessary to increase the brightness).

Signal detection lens which works around the whole perimeter (360°)

STAR PRO10 and PRO30 detectors have laser detection lens with detection angle of 360°. It allows the

total control of the situation on the road and gives you more confidence while driving your car.

INSTALLATION

A. Mounting Guidelines

For the best performance, select the proper location for the detector where it has a direct view of the

road. Remember, the radar antenna and laser sensor are located behind the rear panel of the unit.

The antenna and sensors should not be obstructed by metal or metallic surfaces and should be pointed at

the horizon for accurate long-range detection.

Choose a location that does not block the driver's vision.

Mount the detector in a level position.

Do not mount the detector behind the metal surfaces, windshield antenna, wiper blades, and ornaments

mirrored sunscreen.

Window tinting reduces the received strength of laser signals; do not mount the detector behind tinted

glass.

Do not mount the detector where the driver or passenger might hit in a sudden stop or accident.

B. Mounting Type

There are two ways of installation of Star laser/radar – detector

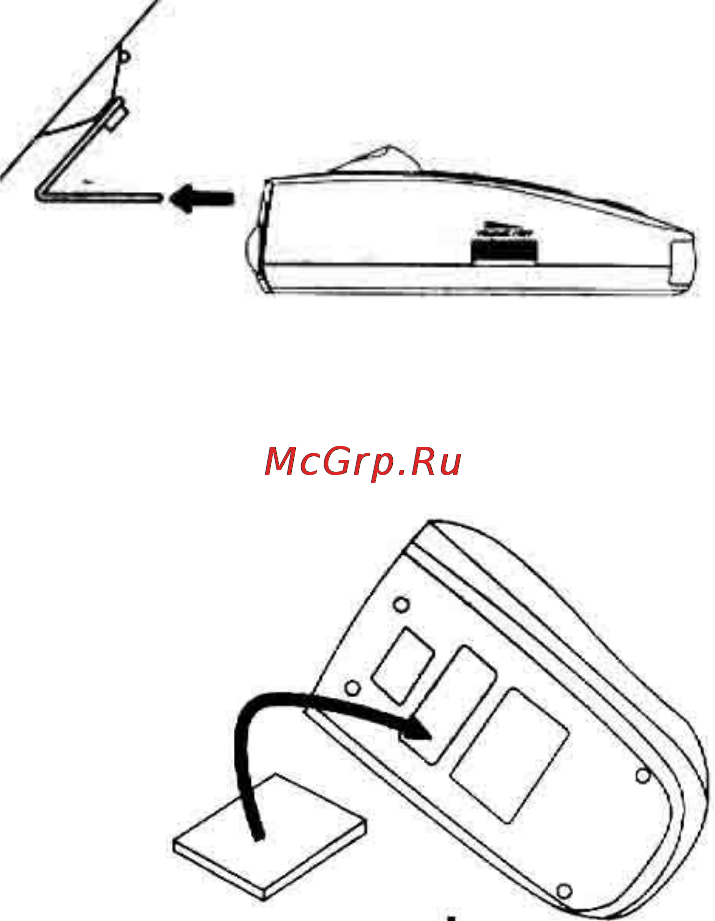

1. Windshield Mounting

The supplied windshield bracket and suction cups let you quickly mount the detector to your vehicle's

windshield.

Follow these steps to use mounting bracket kit.

1. Install the suction cups onto the bracket by fitting them into

their holes.

2. Attach the bracket to windshield

3. Attach Detector to bracket.

4. Bend bracket for correct detection angle (if necessary), do

not use the STAR to bend bracket.

5. Plug power cord DC12V into detector.

6. Plug power cord into cigarette lighter.

2. Hook-and-Loop Mounting

The hook-and-loop tape included with your detector might be the best mounting method for some

dashboards.

Follow these instructions to use the hook-and-loop tape.

• Use a damp cloth to thoroughly clean both the bottom of the detector

and the dashboard.

• Peel off the tape's paper backing and apply the tape to the bottom of

the detector.

• Remove the paper backing from the other side of the tape and press

the detector onto the dashboard.

Cautions: Some new models of cars have a plastic safety coating which

is applied to the windshield. The suction cups may leave permanent

marks on the windshield once they are removed. Check vehicle owner's manual to see if your car has the

plastic safety coating.

C. Connecting the Power

The detector is designed to operate on most DC12V negative ground vehicle electrical systems. The power

cord provided with the detector has a cigarette lighter socket plug at one end and a small connector at

the other.

1. Insert the small connector into the jack on the side of the detector.

2. Insert the other end into the cigarette lighter socket of your vehicle.

If the detector does not operate when you turn it on, remove the adapter from the cigarette lighter socket

and carefully check the socket for debris. Also, check the fuse in the adapter and your vehicle's fuse box.

D. Replacing the Fuse

If the detector STAR stops operating, the fuse in the cigarette lighter plug might be blown. If it has blown,

follow these steps to replace it:
